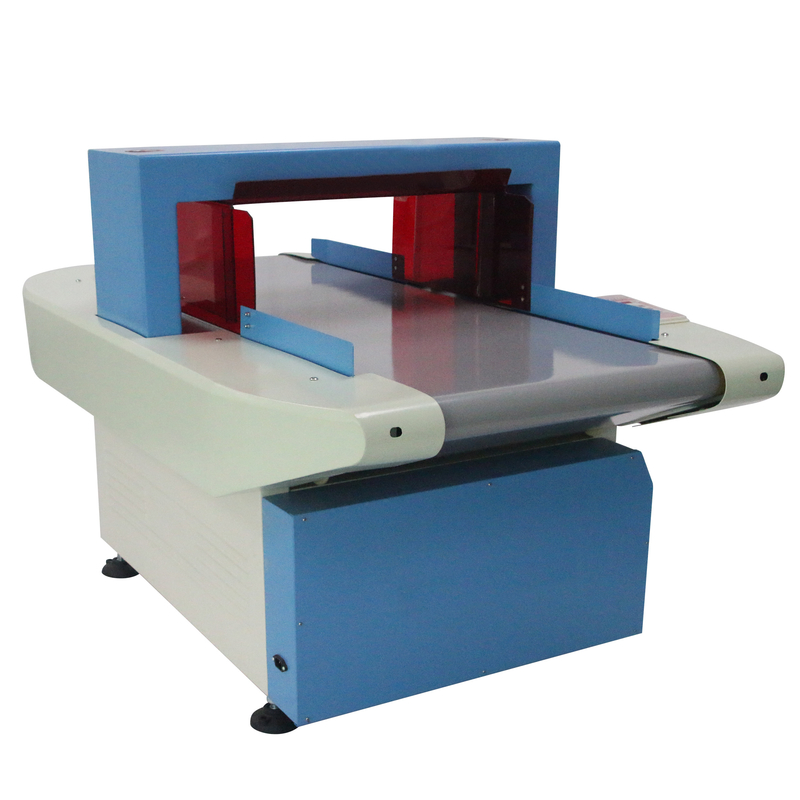

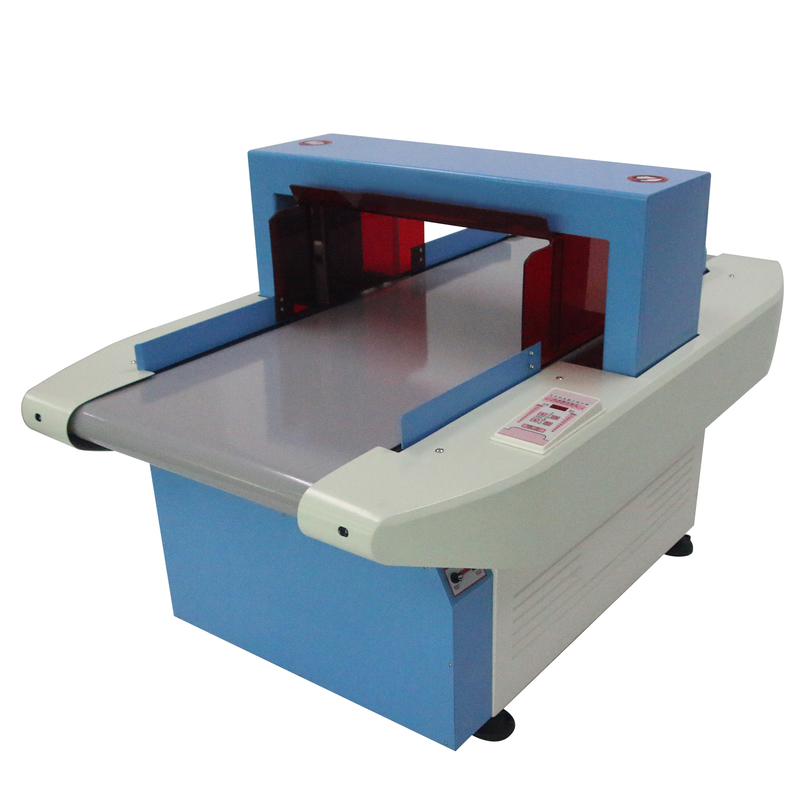

Hashima needle detector Detector De Metais Needle Camera Detector for fabric garment
high-sensitive LCD display needle detector is mainly used for toys, clothing, clothing, zippers, metal buttons, footwear, chemicals, leather, knitting and other industries which need to detect ferromagnetic metal impurities detection, detecting inclusions or lost things in raw materials or products like broken needles, wire and other ferromagnetic non-ferrous metals, to avoid bringing direct or indirect losses to the consumer or production enterprises.It is a necessary testing equipment of the exporting products,which can also be used for food processing enterprises that need to exclude aluminum foil packaging and only detect ferromagnetic metal .
A.Description:
1. it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material
2.Detector with audible and visual alarm , and automatically exclude, stop, rewind functions, use-friendly menu, easy to operate touch screen. Machine made of stainless steel, anti-corrosion, no rust,easy to clean up.
1. Using the US microcomputer chip digital signal, the signal can be analyzed on each channel to improve the reliability of the test.
2. Special sensors design of detect parts, which greatly improves the instrument's sensitivity and anti-jamming capability, breaking the limit of environmental influences.
3. The original magnetic field equalization sensing design, more suitable for different customer. Especially for the detection of clothing accessories.
4. All-Chinese display, membrane switch, increasing the goodwill of the human-computer interaction.
5. User-friendly design concept, a powerful function and the ease of operation reach perfect combination.
6. Intelligent location display system, can accurately display the location of the measured object.
7. Intelligent counting system, accurately counts for qualified and unqualified products.
8. Unique safety lock device,which can lock the sensitivity, and is easy to manage.
9. Digital sensitivity adjustment, electrical level displays interference and iron content.
10. With automatic control of light switch and automatic shutdown function.
11. Achieve A, B, c, D, four models feature, freely choose to use.
12. Sensitivity can be freely adjusted (0-12) on the operator panel until meeting your requirements.
B.Application:
Industry metal detector is mainly used for detecting the metal chips inside the nuts, rice, tea and wood processing industry.
C.Specification:
| Model | Needle detector |
| Detecting width | 40-120CM |
| Detecting height | 10-50CM |
| Sensitivity adjust | 0-9 Level |
| Detecting Sensitivity | 0.8mm-3.0mm (Fe),1.5mm-5.0mm (SUS) |
| Conveyor Belt Speed | 40m/min |
| Power Supply | AC100-265V,50-60Hz |
| Dimension size | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) |
