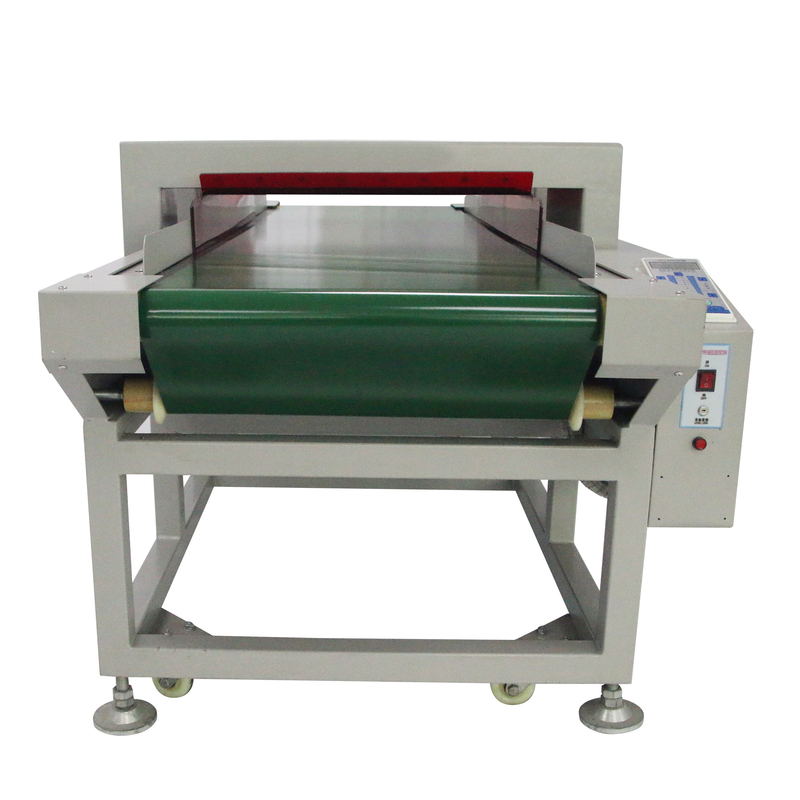

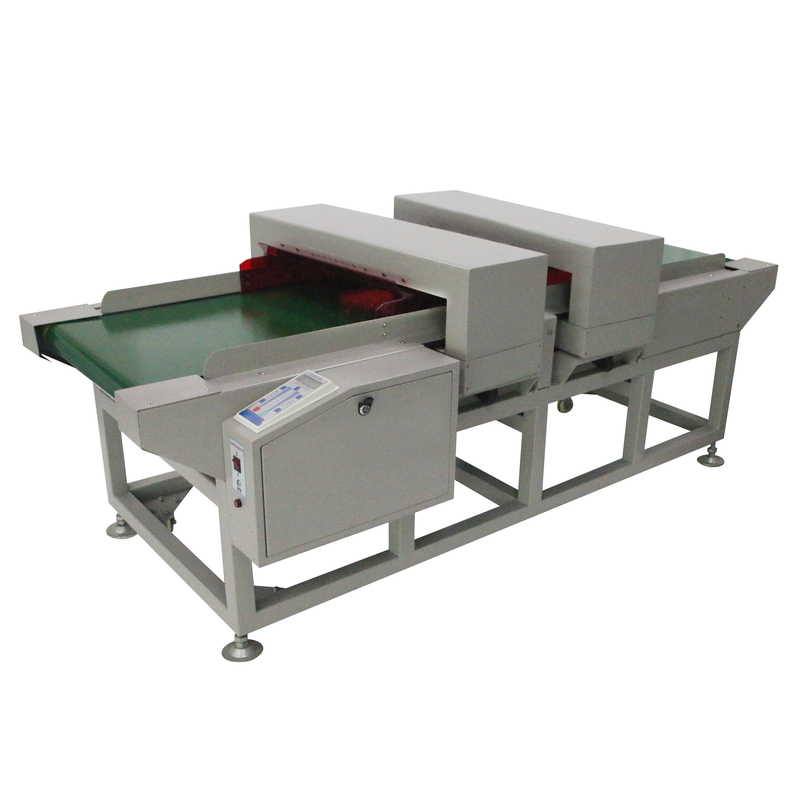

Double Head Textile And Garment Industrial Conveyor Belt Broken Needle Metal Detector 220 v , 50 Hz
The Needle Detector is an ordinary needle detector designed with anti-jamming digital circuit and magnetic induction principle. It is mainly used to detect ferromagnetic metals such as needles and iron filings in textile products. Can effectively eliminate: electromagnetic waves such as ceiling fans, sewing machines, sealing machines.
Applicable places:
Check broken needles: women's wear, men's wear, student uniforms, overalls, baby products, knitwear, underwear, socks, fabrics, non-woven fabrics, embroidery, towels, bath towels, carpets, gloves, toys, handicrafts, etc. .
Through the inspection needle: hardware button, metal zipper, Japanese word buckle, bead chain, brooch and other clothing handbags metal accessories over the needle machine.
| Technical Parameter:(Can custom) | |||||||
| Detection width | Detection height | Detection standard | Conveying speed | Power Supply | Power | Weight | Volume (L×W×H) |
| 600mm | 120mm 150mm 200mm |
Feø≥1.0mm Feø≥1.2mm Feø≥1.5mm |
25~30 m/min |
220V | 100W | 180KG --- 200KG |
1650×960×900 (mm) |
| Description | The sensitivity is determined by the detection height (ie channel or gantry) to determine the highest detection accuracy. The higher the gantry, the lower the sensitivity. The above corresponding height and detection standard are the detection results in the empty machine state; the detection channel height and width can be customized according to requirements! | ||||||
Features:
1. High sensitivity. diameter of 1.0mm are detected. The nine-point test method does not miss the inspection.
2. All steel frame is beautifully painted body, the whole machine is strong, and it is more beautiful, anti-impact and
anti-weak magnetic resonance than traditional aluminum sheet wings; suitable for docking assembly line operation.
3, super anti-interference computer chip integrated circuit, dual-channel sensor, equivalent to the traditional double-
probe needle detector;
4. All function keys are light touch type membrane switches, which avoids the shortcomings of mechanical buttons
being easily damaged;
5. There is a position display function, and the eight-point part shows the exact broken needle position function;
6, with a counting function, distinguish between good and bad products (qualified, total, detected);
7. The alarm function is three kinds of sound, light and stop machine. The sensitivity is adjusted from 1 to 10 levels;
8, special protection circuit, no object to pass through the automatic shutdown for 10 minutes;
9. All function settings are completed after the main power is turned on, without starting the motor;
10, with B / C (accessory / finished product) mode switching function, to adapt to the needle inspection of different
products;
11. When the broken needle or iron object is detected, the sound and light alarm modes are stopped, and the machine returns to the starting point and automatically runs aga
in.
