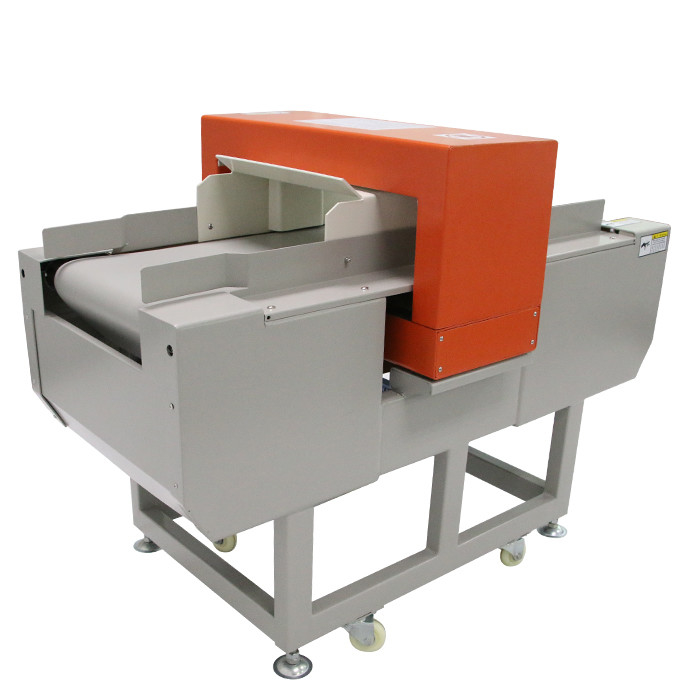

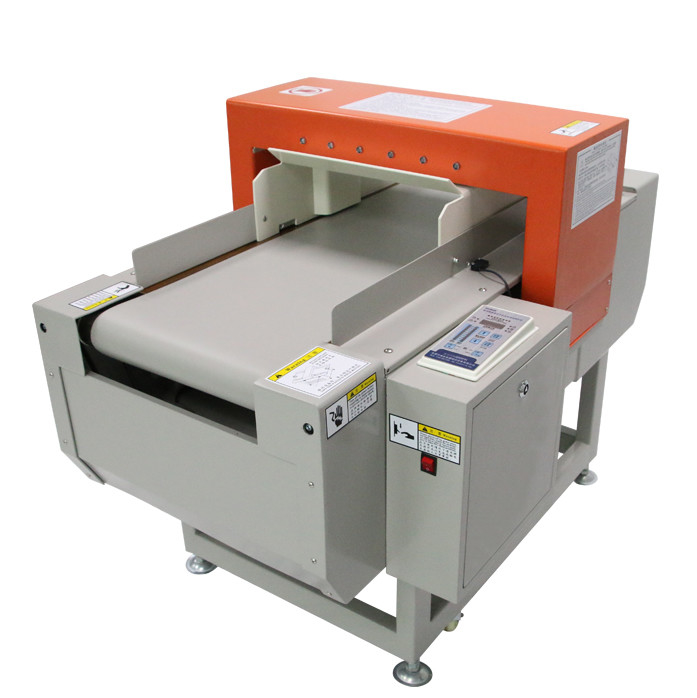

Shanan Needle Detector Nine Point Test Report.pdf...
Applicable:
Clothing, baby products, knit goods, underwear, hardware buttons, zippers, socks ,non-woven fabrics, embroideries, kimono, beddings, towels, carpets, gloves, toys and handicrafts, etc.
Features:
● Mechanism exported from Japan, conveyor belt exported from Holland, non-toxic, new coil technology, computer chip integration adopt digital circuit.
●Specially has the protection circuit, it will auto-stop if no detection goods in 10 minutes, Ad Hoc lightning protection circuit leak.
●All the function keys are touching-type keys,8 locations can display the accurate position of broken needle
●3 ways to alarm: sound, light, and frequency
●Open all of the features set the total power; the motor does not start before the completion of.
●Can calculate the qualified and unqualified and unqualified amount
●Have B/C (accessories/ products) mode switching function, adapt to different products, needle inspection operation.
●Strong anti-disturbance (no wrong alarm to the ceiling fan, mobile phones, screwdrivers, etc )
●Pipelined appearance, ABS shell, steel structure, first-class baking process, to ensure the detection of the machine stability ,good performance, long service life.
Parameter:
| MODEL | SA-710K | |||
| Detection method | Magnetic field induction, digital circuit | |||
| Detection ability | ≥FeΦ0.8 mm | ≥FeΦ1.0 mm | ≥FeΦ1.2 mm | ≥FeΦ1.5mm |
| Detection Height | 120mm | 150mm | 200mm | 250mm |
| Detection width | 400mm Net width 600mm-non-standard sizes(custom) | |||
| Detection adjustment | Touch buttons adjust the level 0-100 | |||
| Alarm method | Sound/light alarm and return, then restarts again | |||
| Power supply | Ac220V 50-60Hz | |||
| Pated output | 100W | |||
| Demension | L1330mm×W680mm×H990mm | |||
| Weight | 180KG | |||
