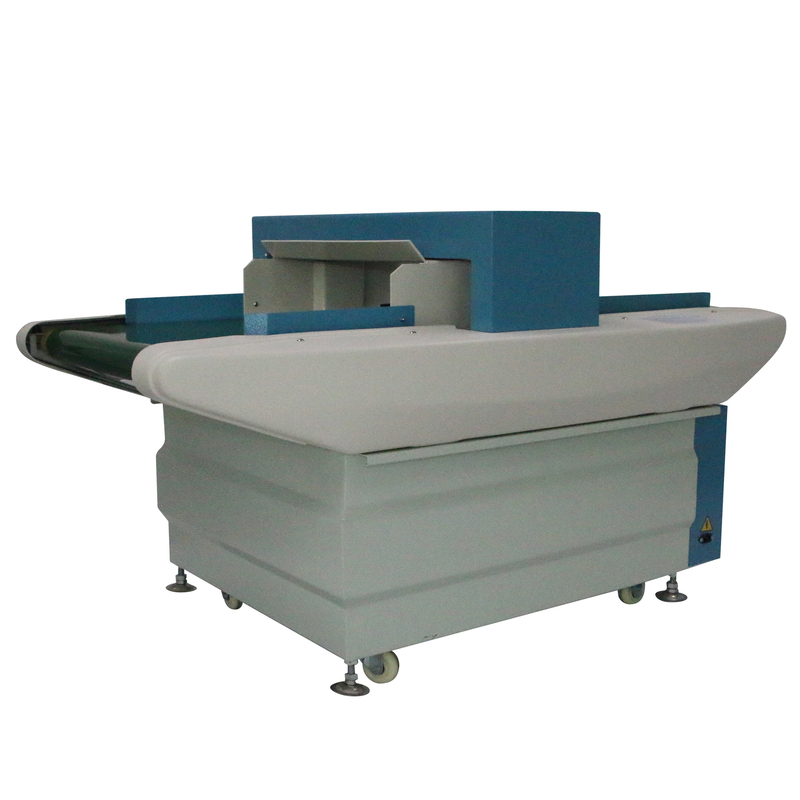

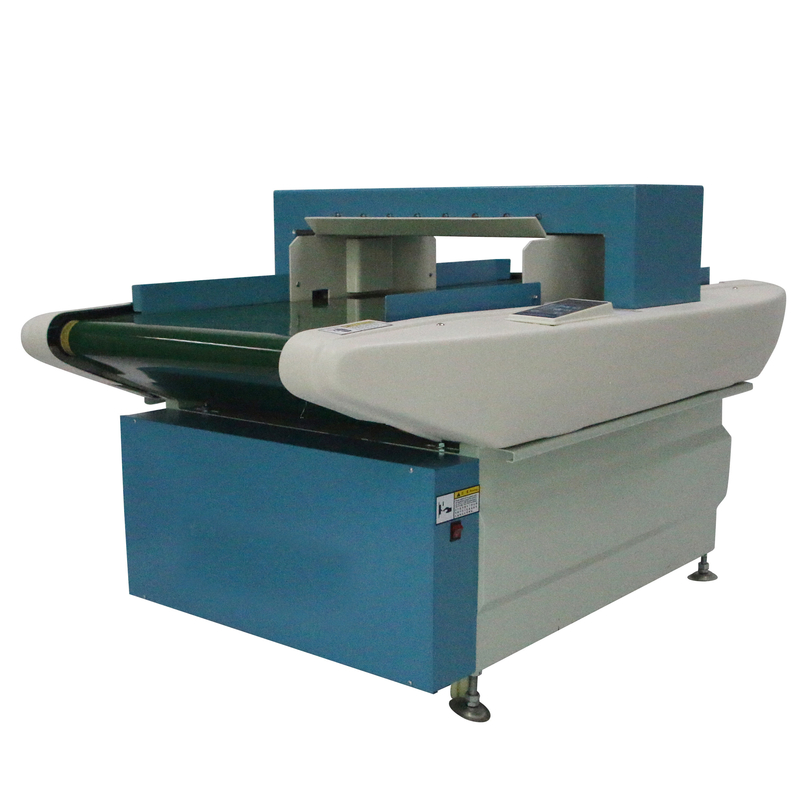

Heavy Duty Sewing Needle Detector Machine For Clothing Industry

Heavy Duty Sewing Needle Detector Machine For Clothing Industry

Products - Needle Metal Detector
  • Highlight

    needle inspection machine

    ,

    garment needle detector

  • Apllication
    Digital Broken Needle Detector
  • Detection Method
    Magnetic Induction.digital Process
  • Detection Adjustment
    Level 1-12 Adjustable
  • Alarm Method
    Sound/light Alarm
  • Pated Consume
    140W
  • Tunnel Size
    600*120mm
  • Warranty
    24 Months
  • Certificate
    CE,ISO
  • Sensitivity
    0.8 Mm
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    VFG-600k
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

Heavy Duty Sewing Needle Detector Machine For Clothing Industry

  • Heavy Duty Sewing Needle Detector Machine For Clothing Industry
  • Heavy Duty Sewing Needle Detector Machine For Clothing Industry
Get Price Contact Now

Heavy Duty Sewing Needle Detector Detector de Metales Needle Detector Machine for Clothing Apparel Industry



Applicable:

Clothing, baby products, knit goods, underwear, hardware buttons, zippers, shoes, socks ,non-woven fabrics, embroideries, kimono, beddings, towels, carpets, gloves, toys and handicrafts, etc.

Features:

1. Movement Japan imported, conveyor belt Netherlands import, 32-bit digital computer chip, the latest international process
digital circuit design
2. Touch LCD display computer control sensitivity setting, 1-100 level stepless adjustment
3. Eight parts accurately identify the location of the broken needle (ferromagnetic metal)
4. Imported two-way super-strong sensor anti-jamming device can eliminate iron oxide interference, better than traditional
double-probe needle detector
5. With counting function, the difference is through genuine, defective products, total
6. Highly balanced load-bearing frame, stable load bearing 30KG cargo, unique pigment recognition mode
7. Double sensitivity with high sensitivity/high balance sensitivity, sensitivity balance at nine points in the detection area
8. Sound and light alarm, can be manually rewinded or automatically rewinded
9. Pipeline appearance, carbon steel structure, first-class baking process, ensuring stable machine detection, good performance
and long service life.

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Detection method
Magnetic field induction, digital circuit
Detection ability
≥FeΦ0.8 mm
≥FeΦ1.0 mm
≥FeΦ1.2 mm
≥FeΦ1.5mm
≥FeΦ2.0mm
Detection Height
120mm
150mm
200mm
250mm
300mm
Detection width
Net width 600mm-non-standard sizes(custom)
Detection adjustment
Touch buttons adjust the level 0-100
Alarm method
Alarm by sound &light , machine stops, conveyer returns, then restarts again
Power supply
Ac220V 50-60Hz
Machine Size
L1850mm*W950mm*H1000mm

Heavy Duty Sewing Needle Detector Machine For Clothing Industry 0
