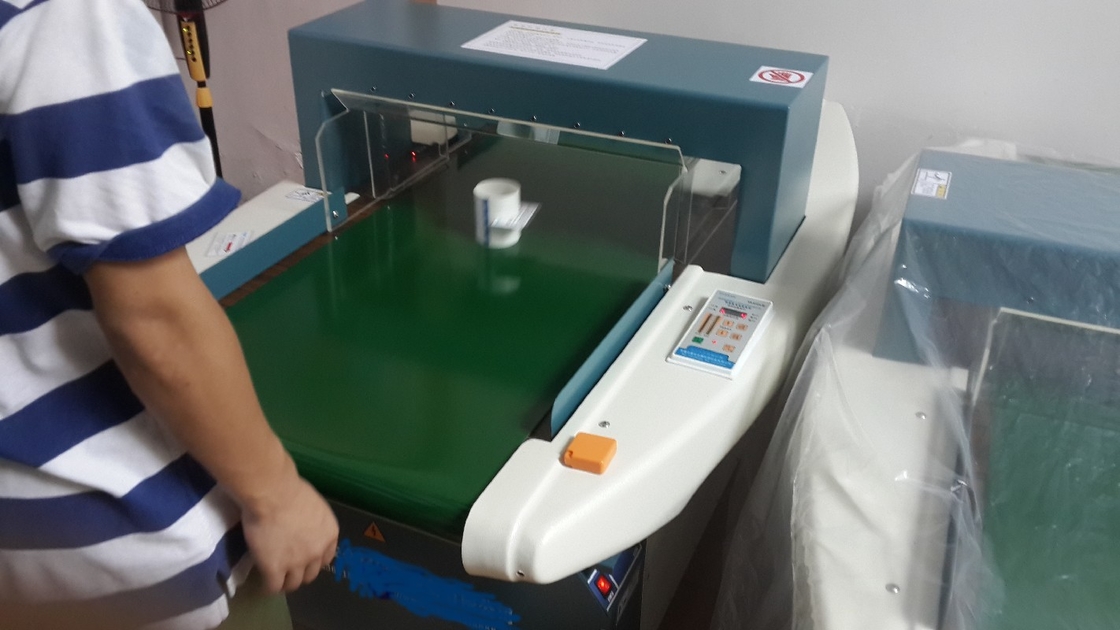

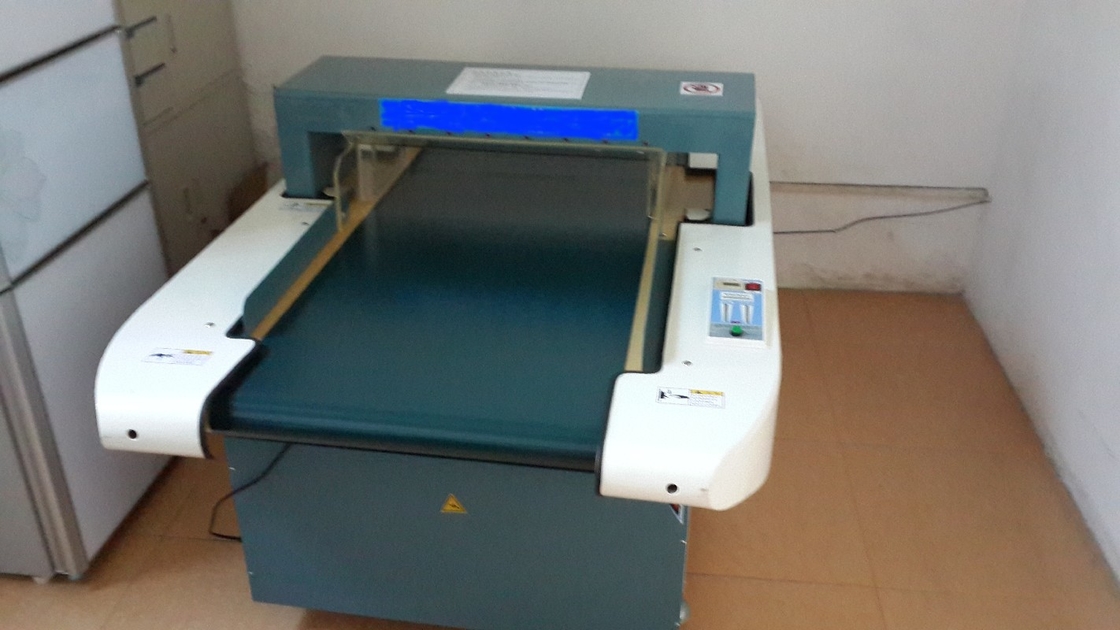

Conveyor Type Fabric Needle Detector For Garment Inside Needle Detecting

Lock Needle Check Machine, Lock Needle detector, Textile Metal Detector

FEARTURES

2 Adopting auto-compensation and high accuracy sensors to ensure detection ability of machine become much stronger and there is no blind area existing in detection zone

2 Stronger magnetic field loop design to get a better anti-interference ability

2 Using latest VFINDER display monitor to display menu perfect and display results are much better than LCD

2 VFINDER broken needle position display monitor show the location of broken needles from X axis to Y axis of garments, it will be easy to find out the broken needles

2 The protective device against side running of conveyor belt to ensure belt not leave the normal track

2 Intelligent start function to avoid press start buttons frequently and prolong the working life of machines

2 Report Management to offer daily detection report and give a assistance on production management and quality management; printer is for option

2 Save power function can stop machine automatically when nobody work or no garments detection

APPLICATION

2 Used to detect broken needles mixed in garments and prevent consumers hurt from broken needles.

2 Improve product’s quality control and avoid huge claims for unqualified products

SPECIFICATION

2 Model No.: VFG-750K

2 Theory: Magnetic Induction

2 Detection Width:600mm

2 Detection Height: 100mm

2 Sensitivity: Feφ0.8mm

2 Belt Width: 570mm

2 Belt Speed: appr. 40m/min.

2 Power: 90W

2 Working Environment: Temperature: 0-40℃; Humidity: 10-90% Non-condensing

2 Power Source: AC220V;50HZ;1P

2 Dimension: 1520x1050x840mm

2 Weight: 230kg

OPTIONAL FUNCTIONS

2 Broadcaster; Scanner; Administration Authority; Printer

Technical parameter:

P.S. The inspection width and height can be customized.

Use Range :
Garment .Textile.underwear .towel. Sanitary and so on industry .
