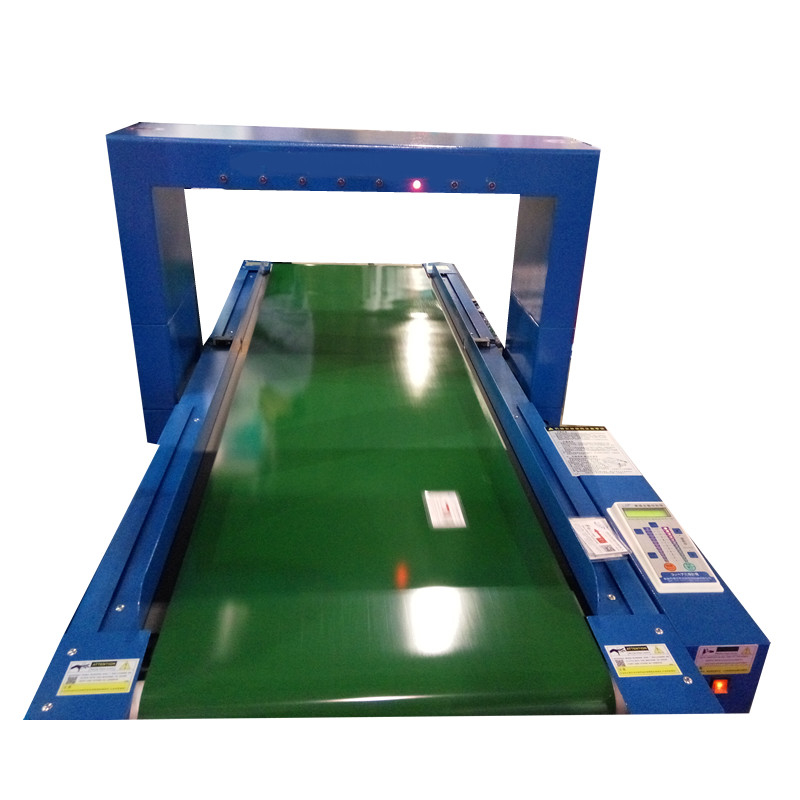

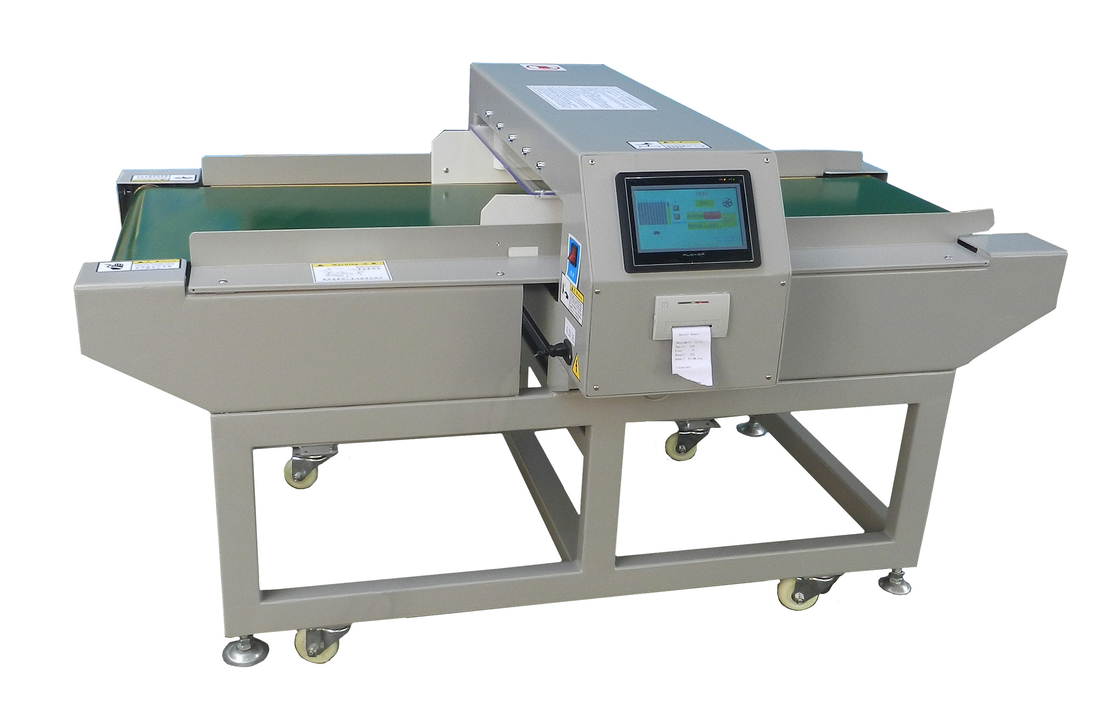

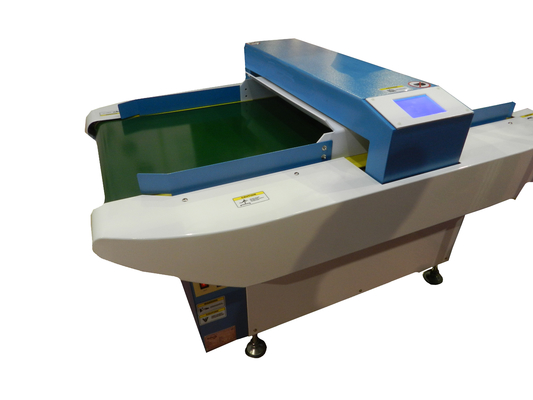

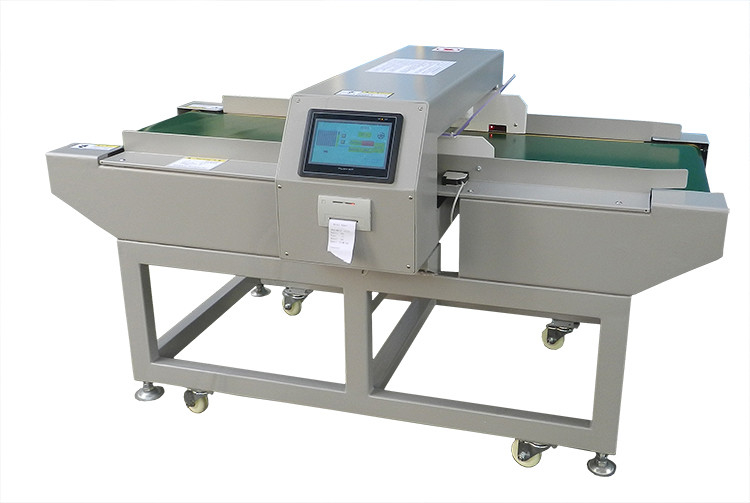

Lock Needle Check Machine, Lock Needle detector, Textile Metal Detector
FEATURES
2 Painted steel frame with elegant design ensuring reliable performance
2 Magnetic Sensor, excellent anti-disturbances, high sensitivity
2 LED indicators offer exact location of metal contaminant
2 Auto-alarm and auto-retract when metal contaminant detected
2 Electricity saving functions
2 Counter offer total quantity of pass and rejects
APPLICATION
2 Used to detect broken needles, shoe nail, iron wire and other metal pieces left inside of toys, garments, shoes etc.
SPECIFICATION
2 Model No: ND-6045
2 Theory: Magnetic Induction
2 Sensitivity: Fe Φ4.0mm
2 Detection Width: 600mm
2 Detection Height: 450mm
2 Detection Adjustment: 1-10Level
2 Alarm Method: Buzzer
2 Belt Width: 570mm
2 Belt Speed: 25m/min.
2 Rated Power: Appr. 120W
2 Power Source: AC220V; 50Hz; 1Phase
2 Dimensions: 1800mm(L)x1050mm(W)x960mm(H)
2 Weight: Appr. 230kg
2 Note: Other special size of Needle Detector can be ordered based on customer’s requirement.
Technical parameter:
| Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
| 400mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
| 160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
| 190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
| 230mm | Fe≥Φ1.5mm | 1580*980*1000 |
| Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
| 600mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
| 160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
| 190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
| 230mm | Fe≥Φ1.5mm | 1580*980*1000 |
P.S. The inspection width and height can be customized.
Use Range :
Garment .Textile.underwear .towel. Sanitary and so on industry .
