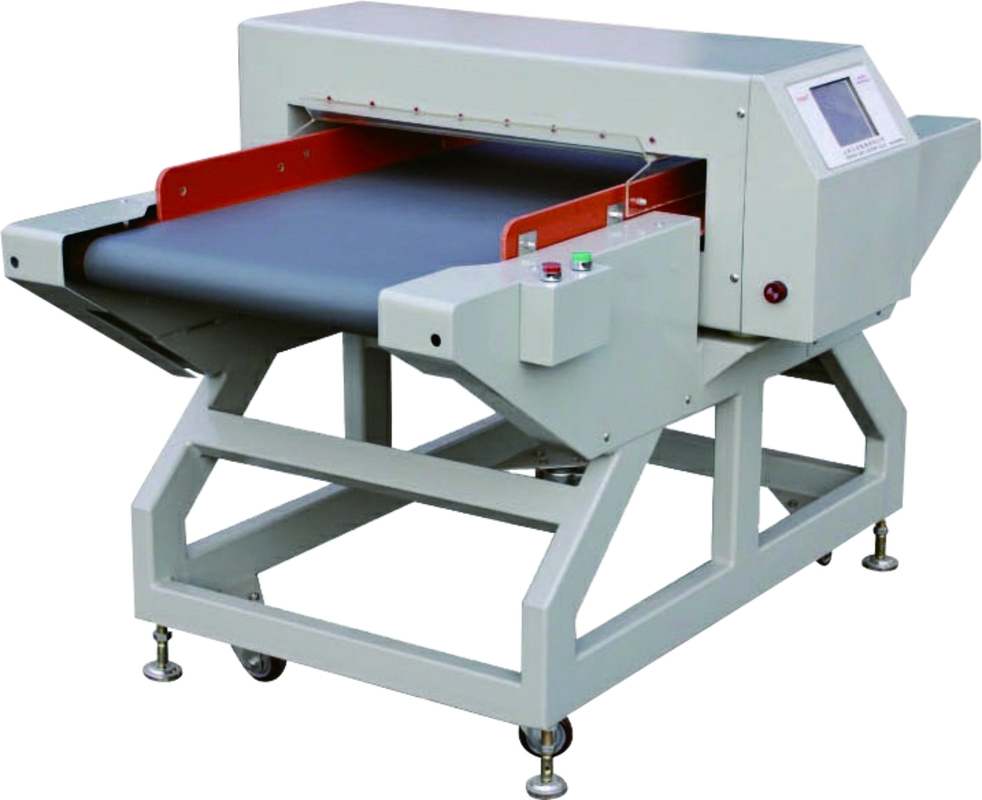

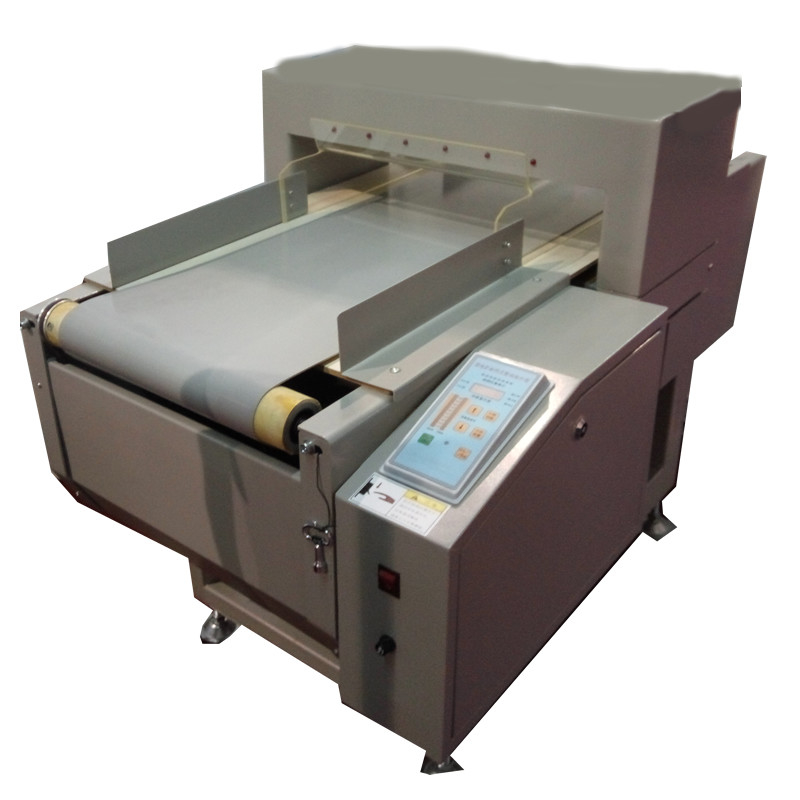

Lock Needle Check Machine, Lock Needle detector, Textile Metal Detector
Product description:
Infrared photoelectric memory data, the accurate rate of 100%, the statistics were seized on the number of
qualified environmental detection, convenient for machine installation in an appropriate location.
Frequency display breakage metal foreign bodies in the large and small, eight parts display lamp right breakage
metal foreign body parts, convenient and quick find the breakage.
Select automatic operation system, a continuous working segments need to start the machine
once, then into automatic operation, can prolong the service life of the operation button for 10 years.
Application:
Electronic Textile Garment Needle Detector, Metal Detector For Plasticbe applicable to detect broken needles, tacks,ferrous ,iron foreign bodies in textiles, garments, shoes,
underwear, zippers, socks, beddings, toys, foods etc.
Technical parameter:
| Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
| 400mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
| 160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
| 190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
| 230mm | Fe≥Φ1.5mm | 1580*980*1000 |
| Inspection width | Inspection height | Inspection standard | Volume/mm | Approx weight | Power | Voltage |
| 600mm | 120mm | Fe≥Φ0.8mm | 1580*980*890 | 180kg | 60W | AC220V/50HZ |
| 160mm | Fe≥Φ1.0mm | 1580*980*930 | ||||
| 190mm | Fe≥Φ1.2mm | 1580*980*960 | ||||
| 230mm | Fe≥Φ1.5mm | 1580*980*1000 |
P.S. The inspection width and height can be customized.
Use Range :
Garment .Textile.underwear .towel. Sanitary and so on industry .
