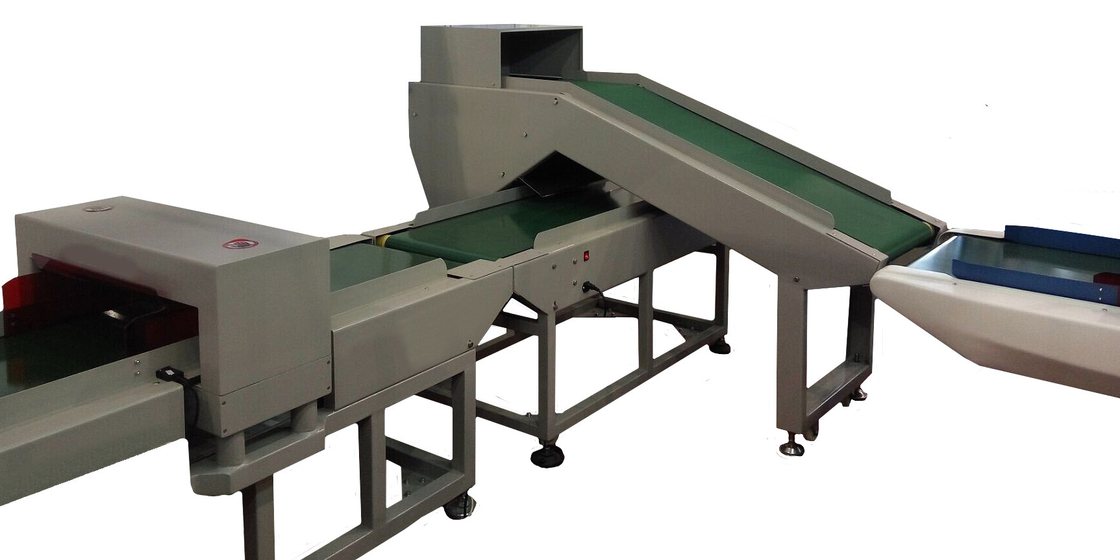

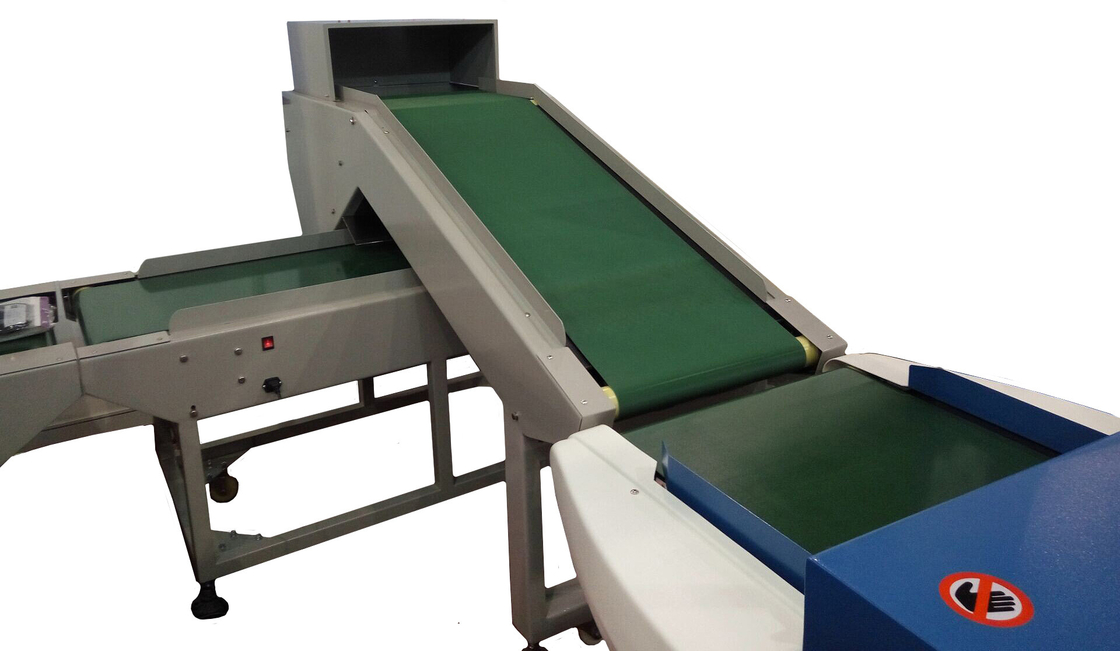

2 Head Belt conveyor Flip Needle Detector , Double Probe Metal Detection
Able to detect φ0.8mm ferrous steel ball at 120mm sensor height. Innovative sensor checking system by Auto PreChecker (optional) saves time.
Features
- Two-head sensors are set at different angles to minimize a detection difference made by direction of broken needles
- Large sized LCD – Newly improved visibility and operation from previous models. Various settings such as sensitivity, language mode, etc. can show current machine condition on the display very well.
- Newly developed sensor – Ability for detection of foreign object is upgraded by newly developed search coils and optimized magnet position.
- Enlarged sensitivity equality
- Needle position indication – Machine can detect location of the broken needles, makes searching for them easier.
- 100-step sensitivity adjustment setting
- Able to detect as small as φ0.8mm at detecting 100mm height
- When needle detector detects a foreign object in a product, it rings an alarm and returns the product to the operator
- Equipped with counter function
- Foot switch and restart function (standard) – Restart function enables easy restarting of the conveyor belt without pushing the start button.
- New convenient function for sensor test – For two head conveyor type needle detector, front sensor can be inactivated during rear sensor test.
- Conveyor speed changing function – If machine detects sewing accessories, conveyor speed can be changed to 3 steps through the passage.
Optional device (please indicate in enquiry if you want any of these options)
- Printer – prints inspection records and counter results
- Product guider – optional equipment for HN-870C,2870C. This appears as standard equipment on HN-780G, 2780G.
- Auto PreChecker – makes sensor checking more accurate and quicker. By using PreCheck bar (Specialized test brock) & system, you do not need to check each coil one by one. The system checks sensor automatically. You can also keep the PreCheck results if you choose the optional printer.
Parameter :
| MODEL |
VFG-5006 |
| Detection method |
Magnetic induction.digital process double sensor |
| Detection ability |
≥FeΦ0.8 |
≥FeΦ0.8 |
≥FeΦ1.0 |
≥FeΦ1.2 |
≥FeΦ1.5 |
≥FeΦ2.0 |
| Detection Height |
100mm |
120mm |
150mm |
200mm |
250mm |
300mm |
| Detection width |
Net width 600mm-non-standard sizes(custom) |
| Detection adjustment |
Touch screen adjust the level 1-12 |
| Alarm method |
Sound/light alarm and return, then restarts again |
| Power supply |
Ac220V 50-60Hz |
| Pated output |
140W |
| Machine Size |
L1820mm×W1050mm×H900mm |
| Weight |
280KG |
Use Range :
Garment .Textile.underwear .towel. Sanitary and so on industry .
