High speed and high precision Check weigher ,HACCP Standard , CE & SGS Certificate
Suitable for weight checking of packing products, to ensure quality standards

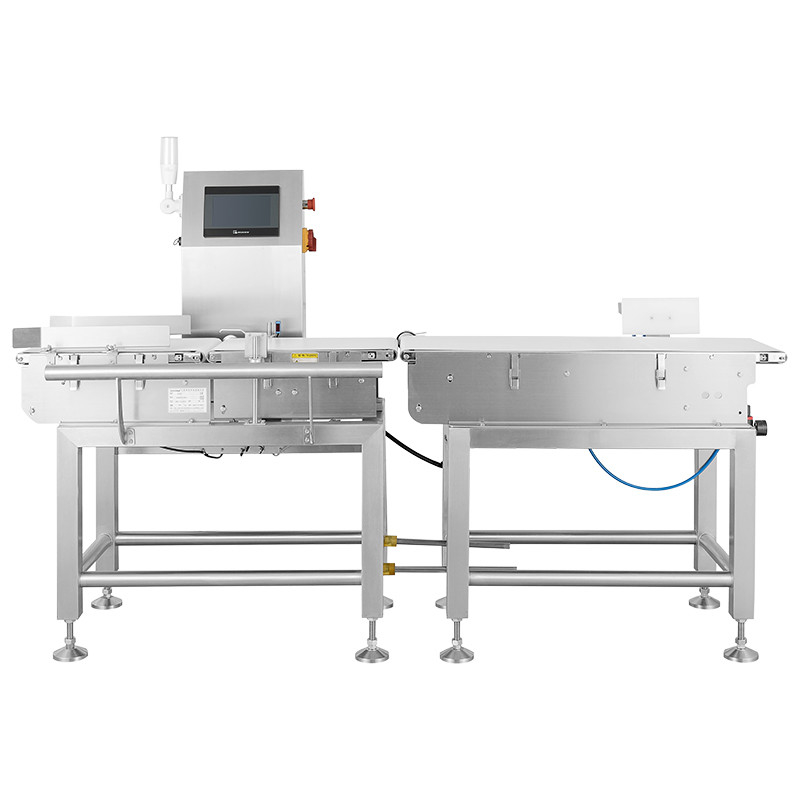

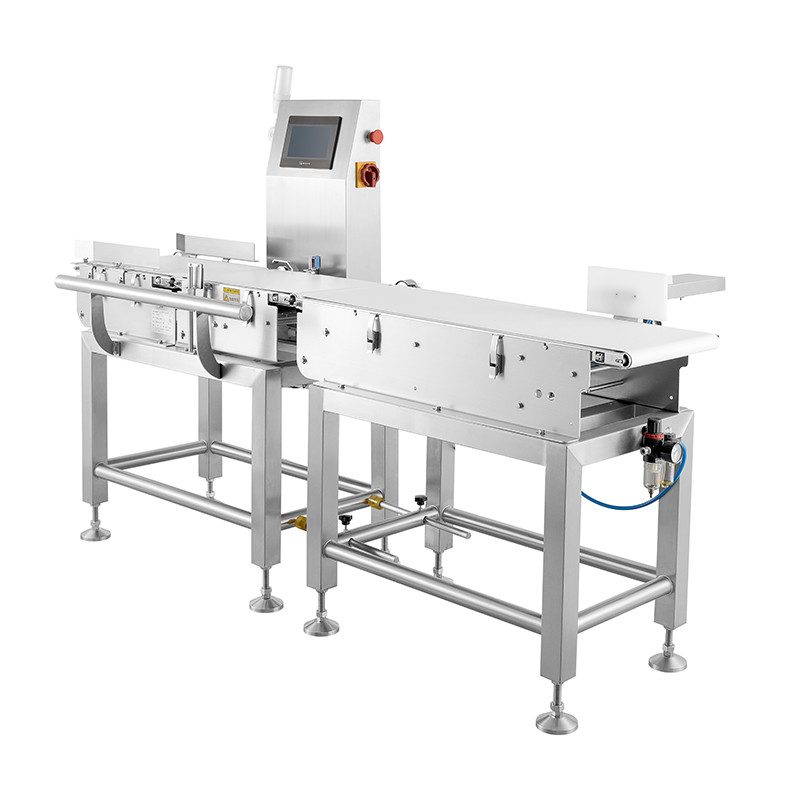

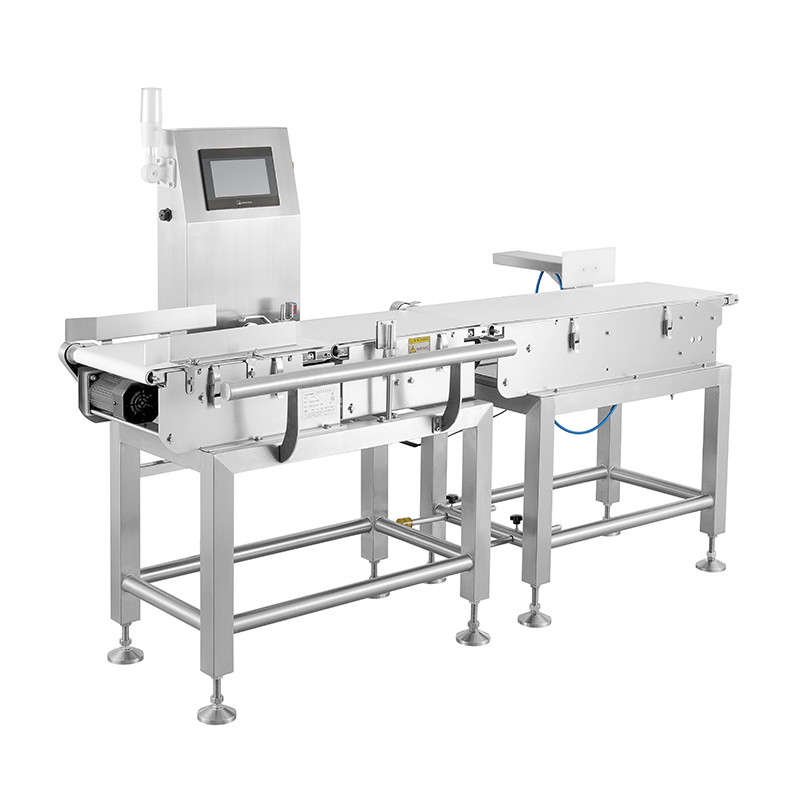

Checkweigher IMD-IXL Series
1. High speed, high sensitivity, high stability dynamic weight checking
2. Accurate and efficient rejector system
3. Professional human-machine interface design
4. User-friendly features
5. Top-level craft, professional mechanical design
6. Good environmental adaptability and stability
7. Brief user parameter setting
|
Parameter
Model
|
High speed and high precision
Check weigher
|
| JZ2512 |
| Power supply |
AC220V±10% 50HZ(60HZ |
| Weight range |
≤200g |
| Weighing accuracy range |
±0.05g~±0.1g |
| Mini screen value |
0.01g |
| Belt speed ( meter/min ) |
20～60m/min |
| Max speed |
180 pcs/min |
| Suitable product dimensions |
≤100mm(L)*100mm(W) |
| Weight zone size |
250mm(L)*120mm(W) |
| Size |
900mm(L)*500mm(W)
*1250mm(H)
|
| Reject system |
Air blast |
Push rod |
Flap drop |
| Parameter storage |
2000
|
| Frame materials |
SUS 304/ 316 |
Feature:
- Operating mode: three operating modes
- Dynamic mode:Normal assembly line type
- Static mode:After the material enters the weighing platform, the weighing platform stops running, and the weighing is performed to improve the accuracy. It is suitable for products with less than 20 passes per minute.
- Energy saving mode:On the basis of a and b modes, the energy-saving mode can be turned on, and can be set to pass the shutdown time. When the equipment is without product passes, it will automatically stop after the long time, and then automatically start when there is material passing.
- Interface function: Reserved standard interface, easy to manage data, can connected with PC and other smart devices
- Peripheral communication:Equipped with standard RS-485 and RS-232 dual communication port output.
- Report function:Built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year of statistical data, support the production status at any time; provide factory parameter setting recovery function, and can store a variety of recipes, replace Product specifications are convenient;
