Dynamic Checkweighing is a method of safe guarding within the food and packaging industries for product weights. A Checkweigher system will check weights of products whilst in motion, rejecting any products that are over or under the set weight. All our Checkweigher systems are approved to both OIML and MID (EC TAC) specifications and include Automatic Mean Weight correct, which helps to ensure weight legislation.
Widely used in package workshop with compact space.
Dynamic Checkweighers are easy to use with intuitive full colour touchscreens and icon-driven menus as well as offering fast inspection and product set up, automatically optimising the systems for each product type allowing you to learn and switch within minutes. Our machines are made for products ranging from small and light sachets right through to Heavy weight boxes.

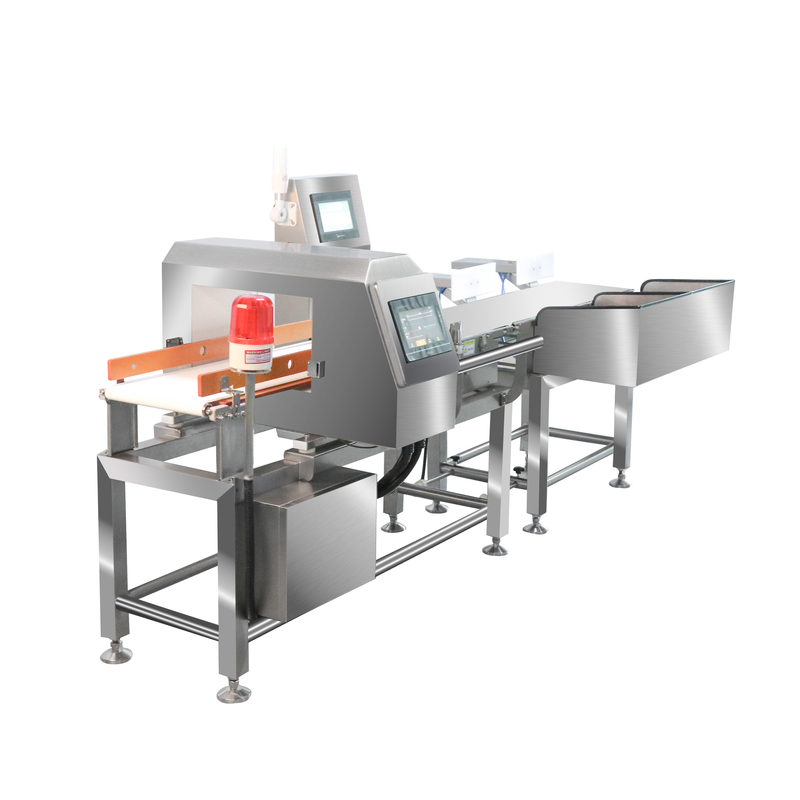

Checkweigher VCM Series
Specifications
| Model | VCM-2 | ||||
| Detecting Range | 1kg- 25kg | ||||
| Scale Interval | 0.1g | ||||
| Accuracy(??) | ±1g | ||||
| Detecting Speed(Max speed) | 155pcs/min | ||||
| Maximum Belt Speed | 80m/min | ||||
| The Weighed Product Size | Width | 220mm | |||
| Length | 350mm | ||||
| Height | 70mm | 110mm | 140mm | 170mm | |
| Weigher Platform Size | Width | 230mm | |||
| Length | 450mm | ||||
| Height | 80mm | 120mm | 150mm | 180mm | |
| Sensitivity | Fe | ?0.5mm | ?0.7mm | ?0.7mm | ?0.7mm |
| SUS | ?1.2mm | ?1.5mm | ?1.5mm | ?2.0mm | |
| Product Storage Quantity | 100 kinds | ||||
| Segments Number of Sorting | 2 or 3 | ||||
| Rejecter | Rejecter Optional | ||||
| Power Supply | AC220V (Optional) | ||||
| Degree of Protection | IP30/IP54/IP66 | ||||
| Body Material | Stainless Steel (SUS304) | ||||
