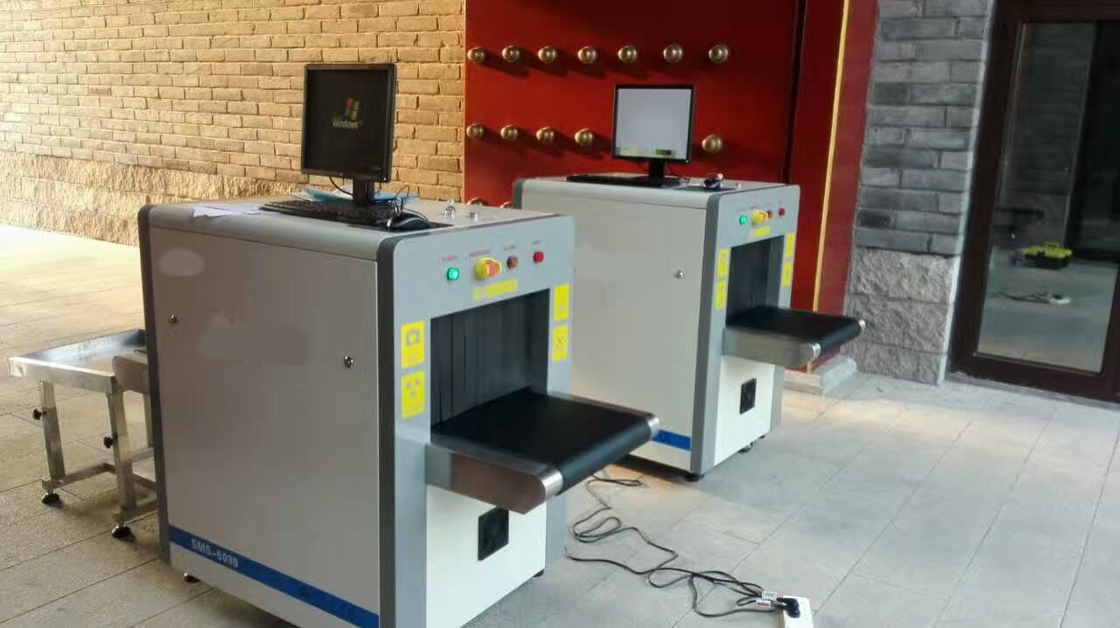

Small tunnel size X Ray Baggage Scanner For Checkpoint Inspection Cruise Screening Airports VX-5030C
| Image Processing System |
| X-ray sensor |
L-shaped photodiode array detector (single energy), 12bit depth |
| Monitor |
high resolution 19 inch LCD BenQ monitor |
| Color image display |
24-bit true color display |
| Edge Enhancement |
the outline of objects will be more clear |
| Super Image Enhancement |
the details of the image are more clear |
| High penetration display |
improve image contrast in bright areas, so the easy penetrating area will be more clear |
| Low penetration display |
improve image contrast in dark areas, so the difficult penetrating area will be more clear |
| Magnifier local |
amplification function |
| Brighten / darken |
Increase / decrease image brightness |
| Image pull back / front pull |
Show the top 20 images, and the current image can be any image processing |
| Image Restoration |
Restored to its original state |
| Image Storage |
Real-time save any image, any image can be processed arbitrarily ,continuous work to save |
Key features:
- Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
- Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
- Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
- A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
- Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
- Strict quality internal control , double-check principles of engineering and production
- Safeguard measures for machine parts
- Through the testing by Ministry of public security and police use electronic product quality testing center
- Through the EU CE certification
- Through the ISO9001 quality management system certification
- Through the ISO14001 environmental management system certification
- Through the GB/T28001 occupation health and safety management system certification
- Through thes provincial Environmental Protection Department of radiation safety certification
- Through the provincial occupation health inspection center detection of radiation
- Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
- Double soft certification .
| Technical standards |
Technical parameters |
| By size |
500(W)×300(H)mm |
| Conveyor speed |
Hour detection 600ps / h toy shoes products 0.22m/s |
| Load |
150 kg |
| Resolution |
∮0.0787 mm |
| Conveyor height from the ground |
700mm |
| Penetration |
≥8mm |
| Monitor |
BenQ 19in LCD monitor |
| Storage |
500G hard drive to save any image in real time, can store more than 100,000
and can make any image processing, and continuous work to save. |
| Noise |
≤55dB(A) |
| Operating system |
windowsXP |
| Single check dose |
One-time inspection of the X-ray light source irradiation amount ≤ 1.22uGy |
| Leaking radiation dose rate |
Away from any device outer surface of 5cm, the ray irradiation leak rate should
be ≤ 0.12uGy / h |
| Dimensions |
(L) 1750mm (W)730mm(H)1200mm |
| NW / GW |
280 kg / 350 kg |
|
