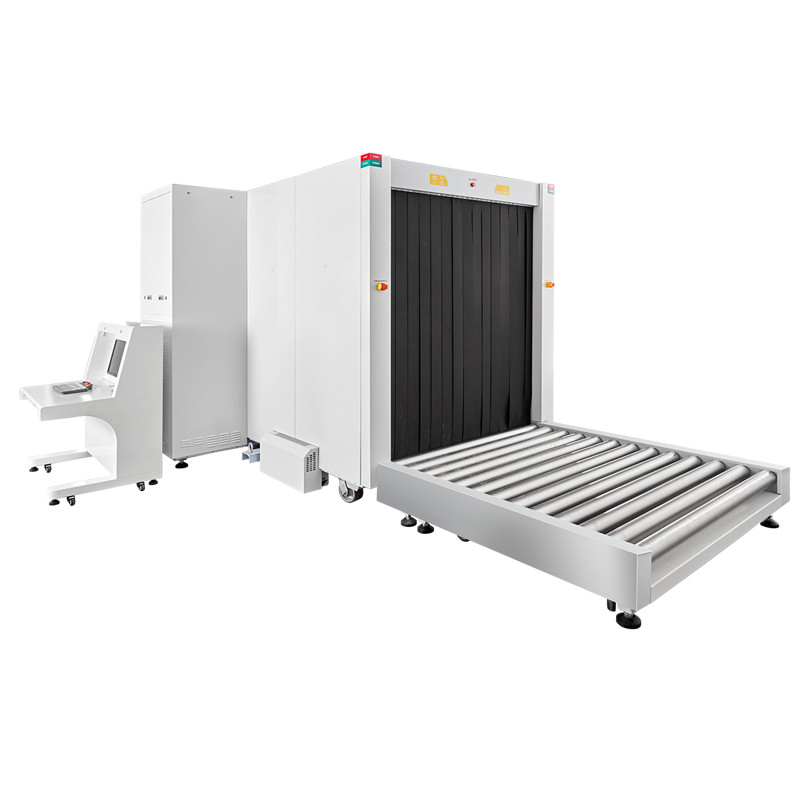

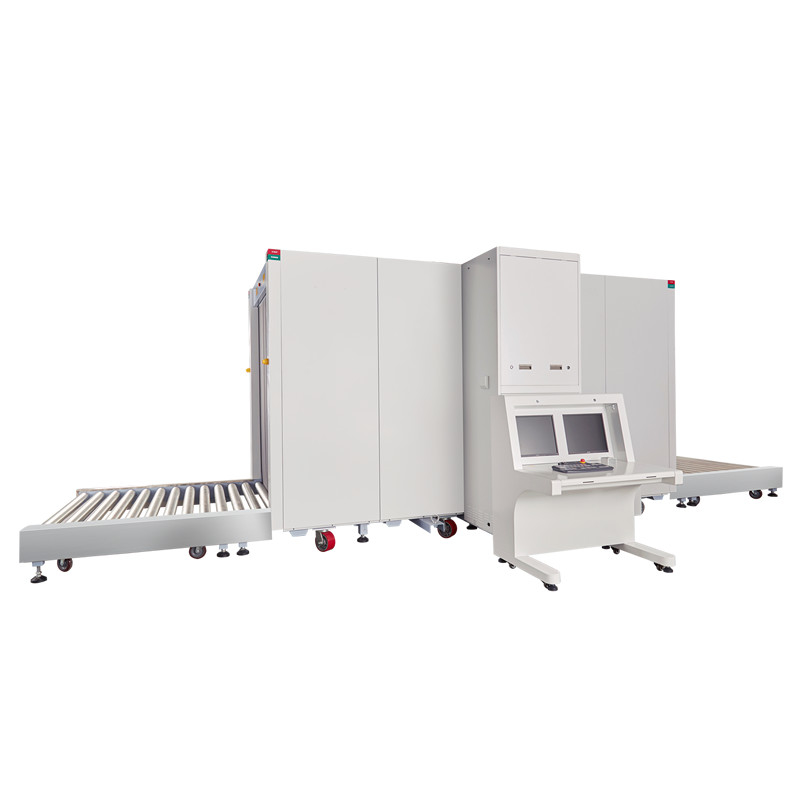

1500 1800 Bulk Cargo Scanner Multi - Energy X Ray Luggage Scanner
Fully designed for luggage inspection against weapons, explosives, drugs, and all other contraband. Widely used in Airports, Wearhouse, Customs, Ports and other important places.
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter
| Tunnel size(mm) | 1500(L)*1800(W) |
| Conveyor Speed(m/s) | 0.2 |
| Conveyor height(mm) | 350 |
| Conveyor Max Load(kgs) | 2000 |
| X ray dose per each inspection | 2.5 μGy |
| X ray leakage | <1.5 μGy / h |
| Penetration | 32mm steel |
| Wire Resolution | Dia 0.102mm copper wire (AWG38) |
| Penetration Resolution | Dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | Max. 2KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Generator | Single or Dual display screen |
| Anode Voltage | 100-160kv |
| Anode power | 0.4-1.2mA (adjustable) |
| Generate direct | 80 degreen from top to bottom |
| Cooling / Duty Cycle | Oil Cooling /100% |
| Brand | VFinder |
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
| Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
| Image Recall | All preceding images recallable, retrieval |
| Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature |
| High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
| Images process | 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags |
Packed by strong plywood carton case
1. Are you manufacturer or trader?
We are more than 10 years experience factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team.
2. Do you accept customer Logo and customized?
Yes, we do kinds of customized and logo of all of our products for customers
3. What terms of payment you usually use?
T/T 50% deposit and 50% against document, Western Union, or negotiable.
4. How does your factory do regarding the quality control?
Quality is always priority. Every product will be fully assembled and carefully tested before packing and shipping. The test
includes the appearance and the functions of the goods, the inclusion of applicable accessories and the packaging.
5. How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
Our products are sold all over the world, you can rest assured.
