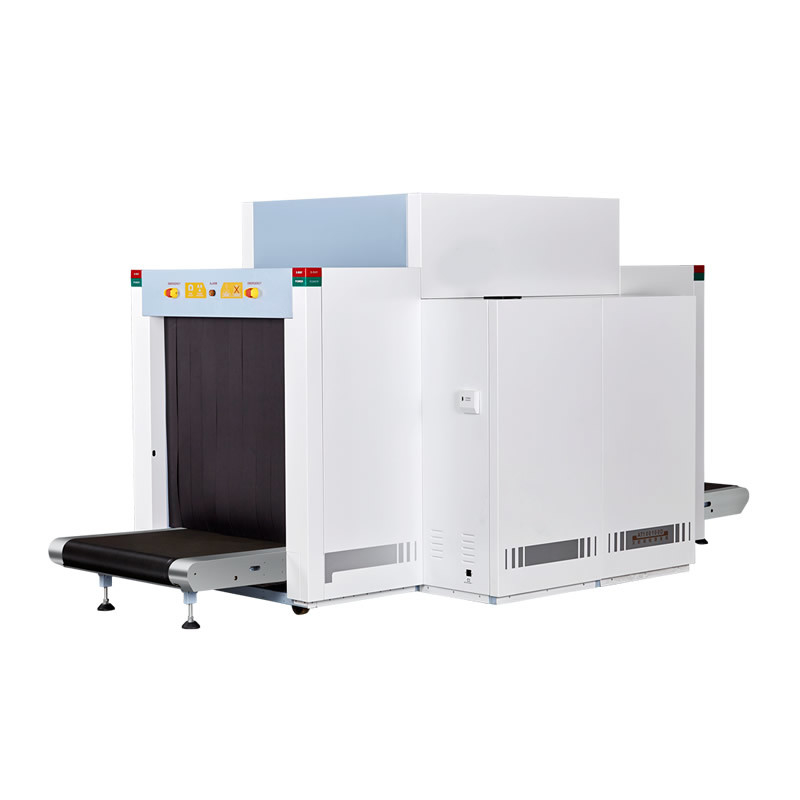

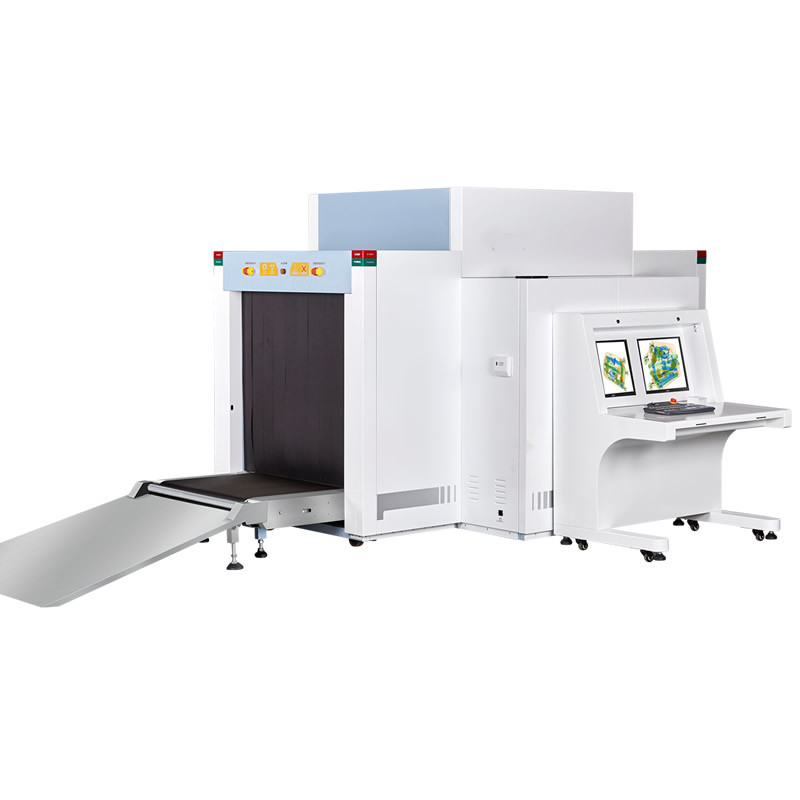

X-ray Luggage Scanner Inspection Systems Machine To Russia Security Equipment
X-ray Generator
| Ray Beam direction | Top-illuminated |
| Tube current | 0.4~1.25mA(adjustable) |
| Anode voltage | 100~160 kV(adjustable) |
| Angle | 90° |
| Generator cooling/working periods | Sealed oil bath with forced air/100% |
Image performance system
| X-ray sensor | L type photo-diode array detector(Multi-energy), 12-bit |
| Monitor | high resolution 19 inch LCD SamSung monitor |
| Color quality | 24-bit real-color |
| Console | full package sealed display, connecting cables can be adjusted according |
| Edge Enhancement | object contour edge is more distinct |
| Super Image Enhancement | image detail is more distinct |
| High-penetrate strength display | increase brightness of dark area in image to display object which is behind high-absorptive mass distinctly |
| Low-penetrate strength display | increase contrast of low absorptive mass to display it distinctly |
| Magnifier | function of partial enlargement |
| Brightening/dimming | increase brightness of image/decrease brightness of image |
| Image recurrence | display previous twenty images and process any one of them |
| Image restoration | restore image to initial status at the time of stopping conveyor |
| Image storing | real-time store more than 100,000 images and process it in operating status |
| Film safety | for ISO 1600 |
Multi-energy function

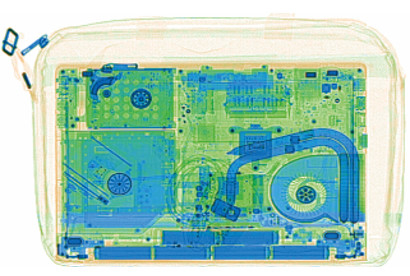

| Multi-energy color | orange--organic displays, blue--inorganic displays, green--the mixture |
| High-energy / low-energy | switching display two energy , high-energy display metals, low-energy displays non-metallic |
| Drugs explosives Auxiliary | Auxiliary detect drugs ,explosives and other dangerous items |
| Alarm by sounds and light | alarm by sounds and light when conform to condition |
Environment
| Operating temperature / humidity | 0℃～45℃／20%～95% (non-condensing) |
| Storage temperature / humidity | -20℃～60℃／20%～95% (non-condensing) |
| Voltage | 220VAC(±10%) 50±3Hz |
| Power consumption | 1.0KW(max) |
| Noise level | < 55dB (A) |
Our products are sold all over the world, you can rest assured.
