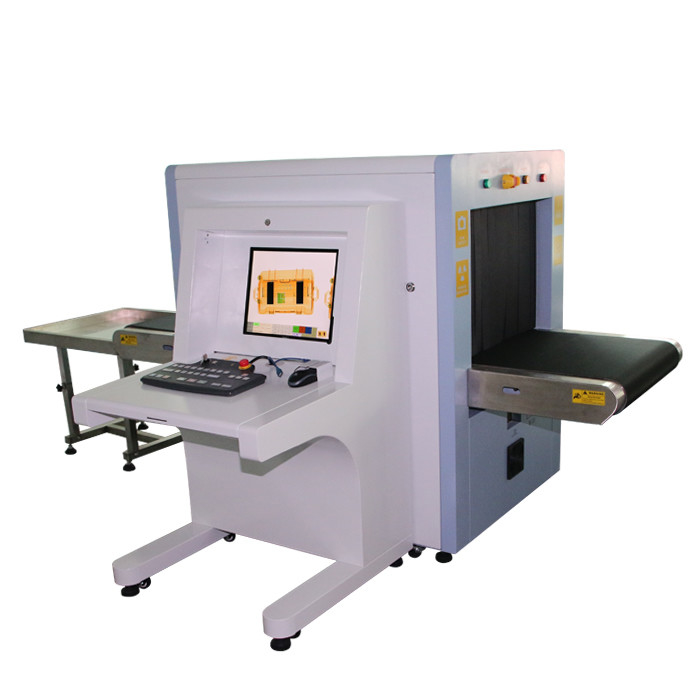

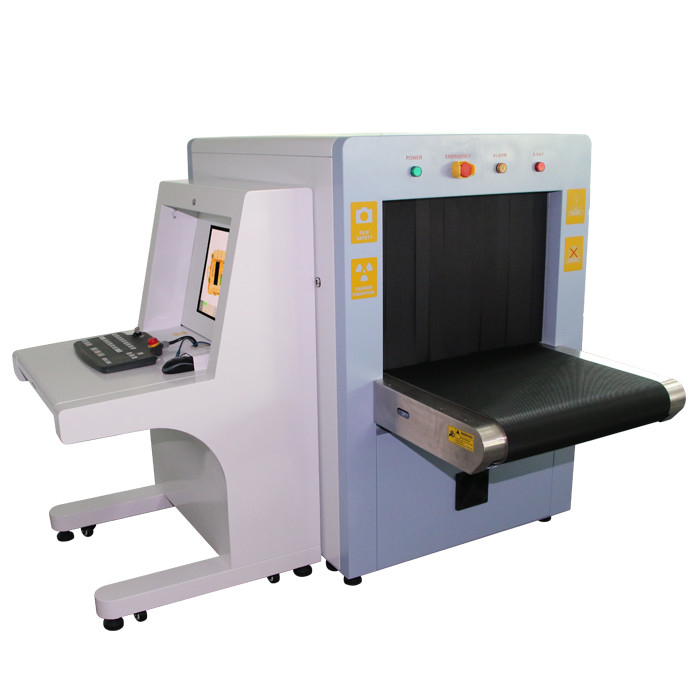

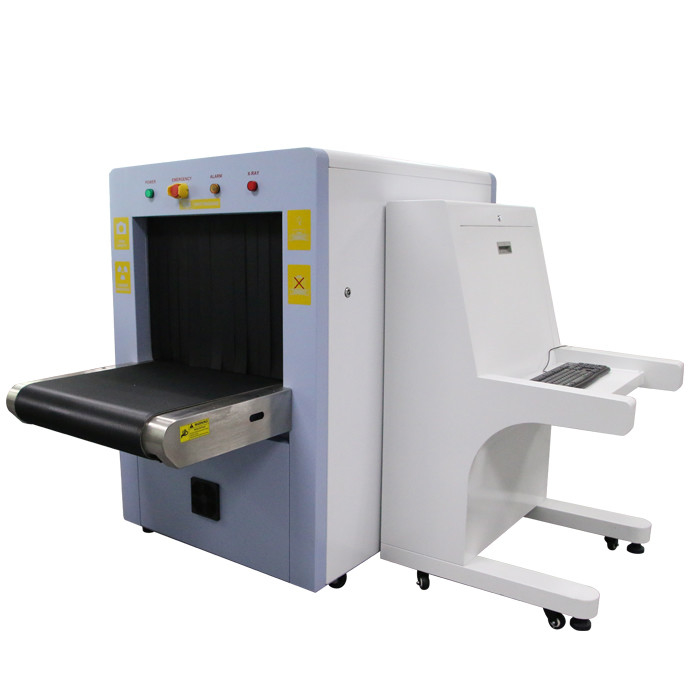

Security Inspection Luggage X Ray Machine For Airport Metro Station / Hotel
Products advantages:
Key features:
Specification:
| X-ray Generator | |
| Ray Beam direction | Bottom-illuminated |
| Operation cycle | 100% , without preheating |
| X-ray Generator cooling | Sealed oil cooling |
| Ray beam divergence angle | 80° |
| X-ray transition arranges | L-shaped linear detector array, more power |
| Image Processing System | |
| X-ray sensor | L-shaped photodiode array detector (single energy), 12bit depth |
| Monitor | high resolution 17 inch LCD monitor |
| Color image display | 24-bit true color display |
| Console | full package sealed display, connecting cables can be adjusted according to the requirements |
| Edge Enhancement | the outline of objects will be more clear |
| Super Image Enhancement | the details of the image are more clear |
| High penetration display | improve image contrast in bright areas, so the easy penetrating area will be more clear |
| Low penetration display | improve image contrast in dark areas, so the difficult penetrating area will be more clear |
| Magnifier | local amplification function |
| Brighten / darken | Increase/ decrease image brightness |
| Image pull back / front pull | Show the top 20 images, and the current image can be any image processing |
| Image Restoration | Restored to its original state |
| Image Storage | Save any image in real time, and can store more than 100,000 images and be processed arbitrarily, continuous work to save. |
| Safety requirements for food, medicines and tape | multiple exposure does no effect |
| Film safety | ISO1600 film safety |
| Environment | |
| Operating temperature / humidity | 0℃～45℃／20%～95% (no condensing) |
| Storage temperature / humidity | -20℃～60℃／20%～95% (no condensing) |
| Voltage | 220VAC(±10%) 50±3Hz |
| Power consumption | 1.0KW(max) |
| Noise level | ≤55dB (A) |
Technical parameters:
| Technical standards | Technical parameters |
| By size | 650(W)×500(H)mm |
| Conveyor speed | 0.22m/s |
| Load | 170 kg |
| Resolution | ∮0.0787 mm |
| Penetration | ≥40 mm steel plate |
| Through resolution | 0.202mm |
| Spatial resolution | Horizontal diameter ≤1.0mm,Vertical diameter ≤1.0mm |
| Conveyor height from the ground | 620mm |
| Monitor | BenQ 17in LCD Monitor |
| Storage |
500G hard drive to save any image in real time, can store more than 100,000 and can make any image processing, and continuous work to save. |
| Noise | ≤ 55dB(A) |
| Operating system | windowsXP |
| Single check dose | One-time inspection of the X-ray light source irradiation amount ≤ 1.22µGy |
| Leaking radiation dose rate |
Away from any device outer surface of 5cm, the ray irradiation leak rate should be < 0.12µGy/H |
This is a security apparatus for small and medium channel size, mainly for underground venues such as security services, and security design of small parcels in Logistics Center,in recent years, rail security become more and more perfect , equipped with almost all of this model.
