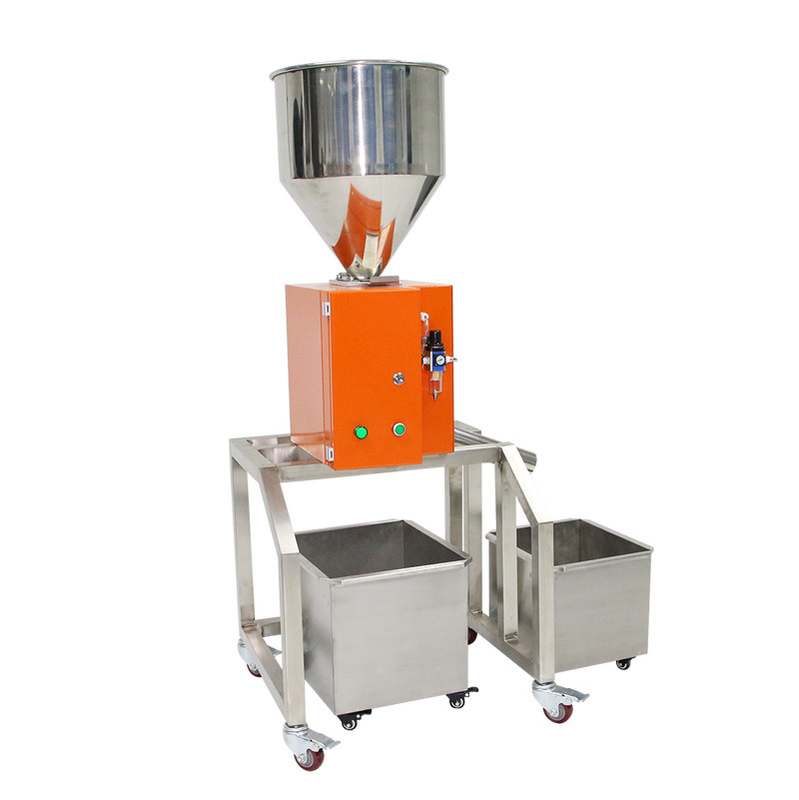

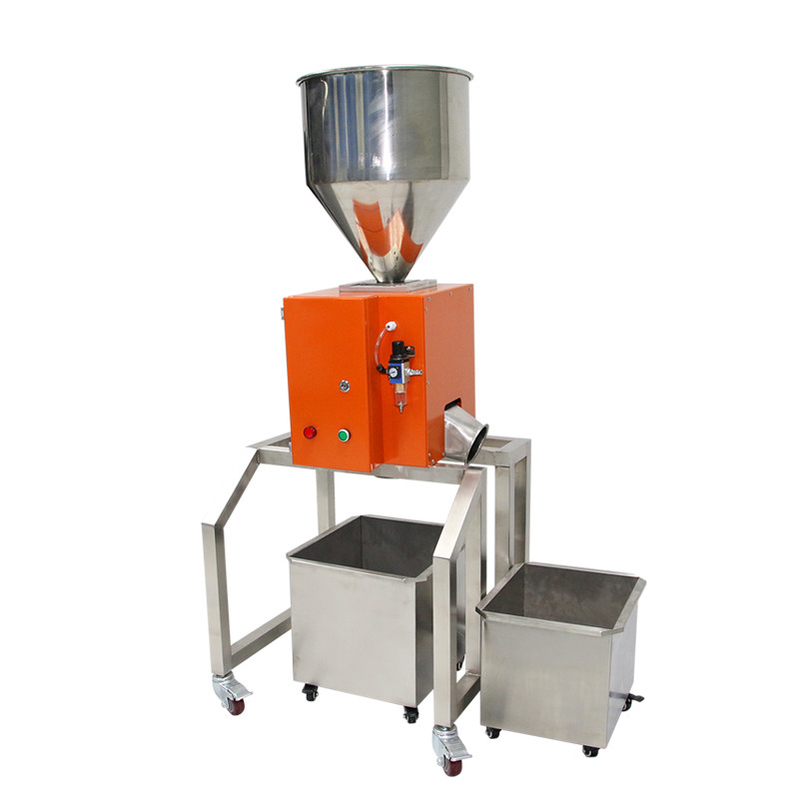

25mm Diameter High quality tablet capsule metal detector for pharmaceutical
Application:
Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .
Function:
To detect and separate of all metals: copper, iron, zinc, stainless steel and all metals.
Features:
Detection method: Free-Falling body/Gravity
Suitable material: grain or powder
Separate ways: automatic separation
Advantage: high precision and simple installation.
Technical Parameter:
Operating voltage: 220 VAC (+ / -10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10/60 degrees
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6 - 8 mm hose
Gas consumption: 0.6 liters each separate action
Level of protection: IP 66
Separation time 0.2 - 2.5 seconds. No level can be adjusted
Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
The way of using and detect the material: To detect the plastic granules with falling body.
Material characteristics: dry, no long-fiber, non-conductive ,particles less than 8 mm
Specifications:
80 type(internal detection tube Dia): 5000 l / h Accuracy: 0.7 iron, stainless steel, 1.5, copper 1.2 mm
100 type(internal detection tube Dia): 10000 l / h Accuracy: 0.8 iron, stainless steel, 2.0, copper 1.5 mm
150 type(internal detection tube Dia): 20000 l / h Accuracy: 1.2 iron, stainless steel, 2.3, copper 2.0 mm
200 type(internal detection tube Dia): 40000 l / h Accuracy: 1.5 iron, stainless steel, 2.5, copper 2.0 mm
250 Type(internal detection tube Dia): 65,000 l / h Accuracy: 2.0 iron, stainless steel, 3.0, copper 2.5 mm
Our products are sold all over the world, you can rest assured.
