Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator

Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator

Products - Metal Separator Machines
  • Highlight

    food safety detector

    ,

    metal detectors for food industry

  • Material
    SUS304
  • Usage
    Metal Particles Inspections
  • Applications
    Food, Plastic, Medicine,Powder, Granules, Rice
  • Detect Range
    Magnetic And Non Magnetic Materials
  • Tube Diameter
    35 50 70 Mm Optional
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    VMD series
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator

  • Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator
  • Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator
Get Price Contact Now

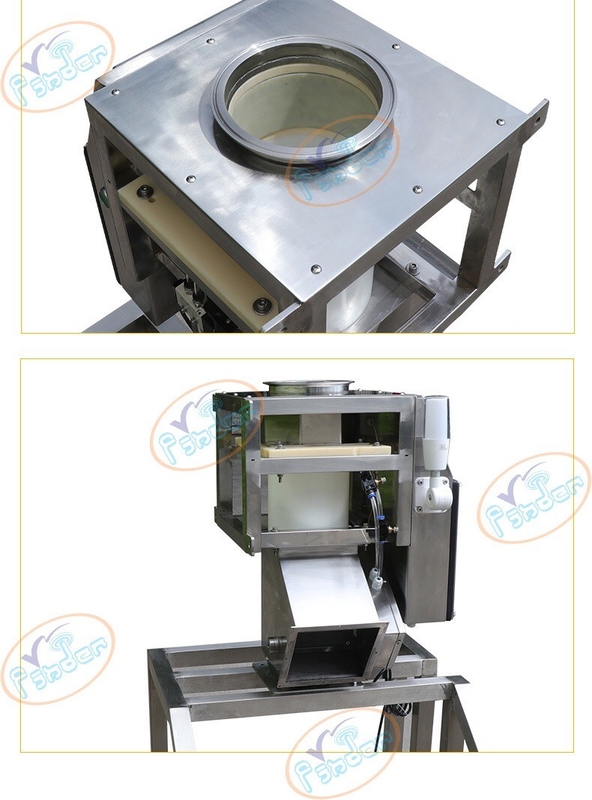

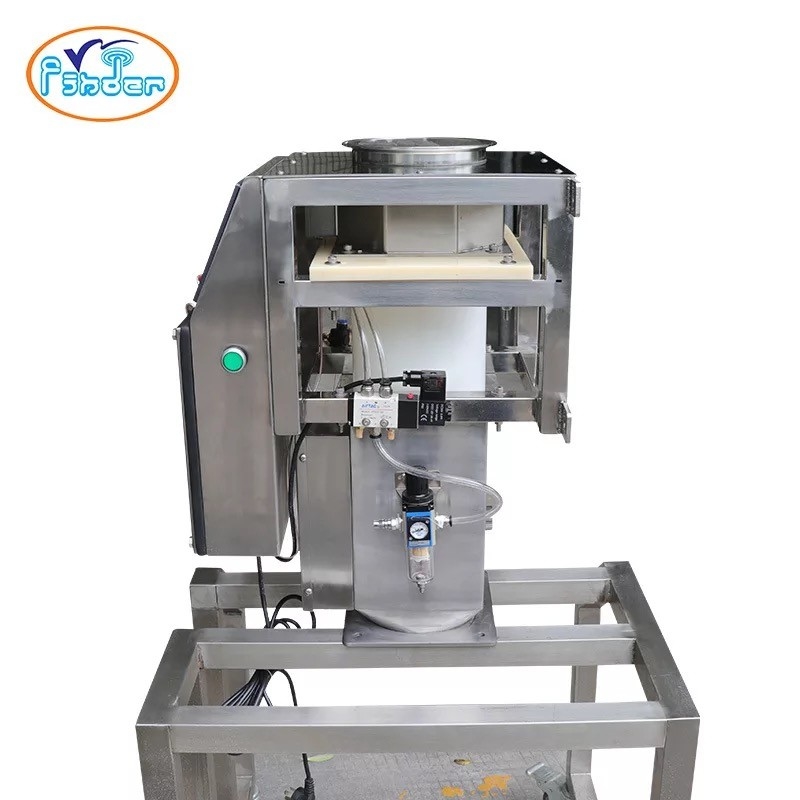

Needle Detection Tunnel Powder / Sauce Metal Separator / Plastic Needle Metal Separator


  • V FINDER metal separator is used for detecting and separating metal contamination that are mixed with plastic raw materials, including magnetic metal or non-magnetic metal ( such as copper,aluminum and stainless steel etc.).





  • Since metal may mix with the old waste materials in the process of recycling, which eventually will cause production accidents, increase the times of maintenance and repair.



  • Those problems finally will raise the cost and affect production efficiency. Compared with human feeding, vacuum feeding machine can automatically feed, thus can save labor cost, and it suits for customers with big production requirements.



  • Besides, this product has good quality, a strong suction and reliable. And automatic feeding can be realized.






Application:

  • Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator 0
Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator 1Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator 2
 Advantages:


1. Protect production device;

2. Enhance production efficiency;

3. Improve the availability of raw material;

4. Enhance product’s quality;

5. Reduce the expense of maintenance and shuts-down;




Technical Parameters:

Model VF-25 VF-35 VF-50 VF-70 VF-100


detecting passage

(mm)

 Φ25mm Φ35mm Φ50mm Φ70mm Φ100mm

Minimum detectable

(mm)

 Φ0.2mm Φ0.3mm Φ0.5mm Φ0.7mm Φ1.0mm
Maximum throughput 250KG/HR 300-400 KG/HR 700-800 KG/HR 1000-1500 KG/HR 2000-2500 KG/HR
Working voltage 220V/50~60Hz 220V/50~60Hz 220V/50~60Hz 220V/50~60Hz 220V/50~60Hz
Environment temperature -10~+80℃ -10~+80℃ -10~+80℃ -10~+80℃ -10~+80℃

Disposal time

(adjustable)

 0.3-5seconds 0.3-5seconds 0.3-5seconds 0.3-5seconds 0.3-5seconds

Compressed

air

 3~5Bar 3~5Bar 3~5Bar 3~5Bar 3~5Bar




Features:


1. Collection of detection coil, controller, separation device. Easy to operate and install.

2. It can save losses of material, because rejection board rapidly rejects unqualified material

3. Low height of installation, easy for integrity;

4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;

5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.

6. Controller can be installed around detection place about 10m.

7. Protection level: IP65




★Packing details:

Gravity Metal Separator Free Fall Metal Separator for Plastic Industry Package:
1. Plastic wrap moisture
2. Fixed on the bottom of the wooden box
3. Standard export wooden box packaging, reinforcement



Tube Diameter 70 Mm Food Grade Metal Detector Needle Detection Tunnel Powder / Sauce Needle Metal Separator 3



What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
