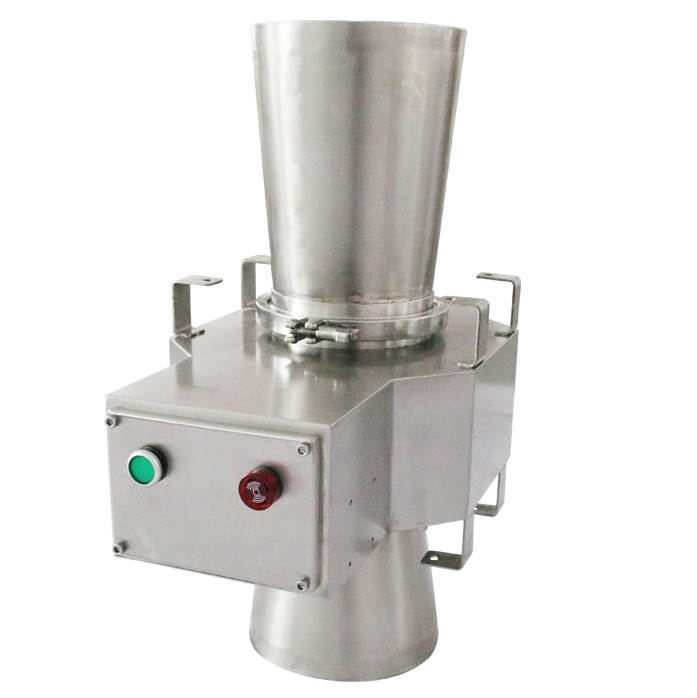

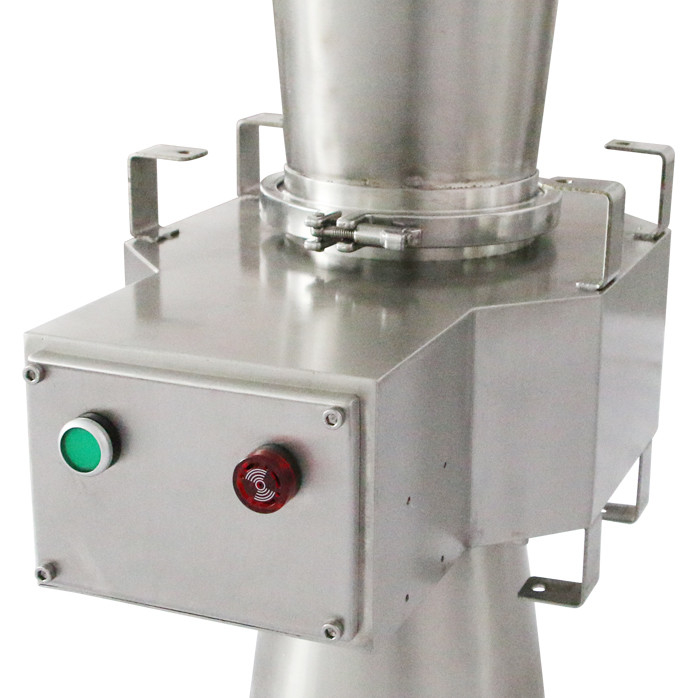

CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action

Application:

• Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

Functions:

• To detect and separate of all metals: copper, iron, zinc, stainless steel and all metals.
• Features:
• Detection method: Free-Falling body/Gravity
• Suitable material: grain or powder
• Separate ways: automatic separation
• Advantage: high precision and simple installation.
• Technical Parameter:
• Operating voltage: 220 VAC (+ / -10%, 50/60 Hz)
• Input current: 80/160 mA
• Ambient temperature: -10/60 degrees
• Case Material: Stainless Steel
• Contact parts with material: PP plastic and PTFE
• Compressed air: 4-8 kg, connected with 6 - 8 mm hose
• Gas consumption: 0.6 liters each separate action
• Level of protection: IP 66
• Separation time 0.2 - 2.5 seconds. No level can be adjusted
• Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
• The way of using and detect the material: To detect the plastic granules with falling body.
• Material characteristics: dry, no long-fiber, non-conductive ,particles less than 8 mm

Advantages:

1. Protect production device;

2. Enhance production efficiency;

3. Improve the availability of raw material;

4. Enhance product’s quality;

5. Reduce the expense of maintenance and shuts-down;

(a) Standard 12 (Twelve) months dated from delivery (Consumable parts and man-made broken are not included); ; If need much longer warranty period, please contact with our salesman. During warranty period, we offer replaced new parts for free.

(b) Out of warranty period, we will offer spare parts and technical support too and help customer to solve problems; If need replace parts, we will charge parts costs
