Advantages for using metal separator:
1. Protect production device;
2. Enhance production efficiency;
3. Improve the availability of raw material;
4. Enhance product’s quality;
5. Reduce the expense of maintenance and shuts-down;
Technical Parameters:
| Model |
Dimension(mm) |
Sensitivity (Fe) |
Sensitivity (SUS) |
Air compression |
Max.throughput(L/H) |
Defectives eliminated time |
Installation height(mm) |
| VMD-25 |
25 |
0.2mm |
0.4mm |
3~5Bar |
300 |
0.3~5s |
330 |
| VMD-35 |
35 |
0.3mm |
0.5mm |
3~5Bar |
400 |
0.3~5s |
330 |
| VMD-50 |
50 |
0.5mm |
1.0mm |
3~5Bar |
2000 |
0.3~5s |
330 |
| VMD-70 |
70 |
0.8mm |
1.2mm |
3~5Bar |
5000 |
0.3~5s |
330 |
| VMD-100 |
100 |
1.0mm |
1.5mm |
3~5Bar |
12000 |
0.3~5s |
473 |
| VMD-120 |
120 |
1.2mm |
2.0mm |
3~5Bar |
16000 |
0.3~5s |
473 |
| VMD-150 |
150 |
1.5mm |
2.5mm |
3~5Bar |
25000 |
0.3~5s |
600 |
| VMD-200 |
200 |
2.0mm |
3.0mm |
3~5Bar |
44000 |
0.3~5s |
922 |
| VMD-250 |
250 |
2.5mm |
3.5mm |
3~5Bar |
69000 |
0.3~5s |
948 |
Features of properties:

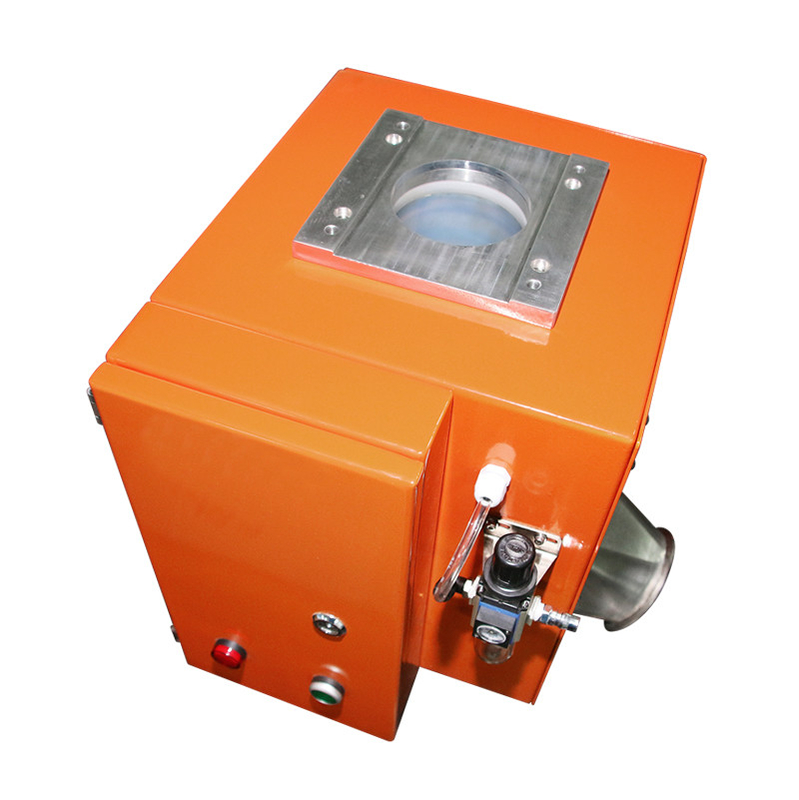

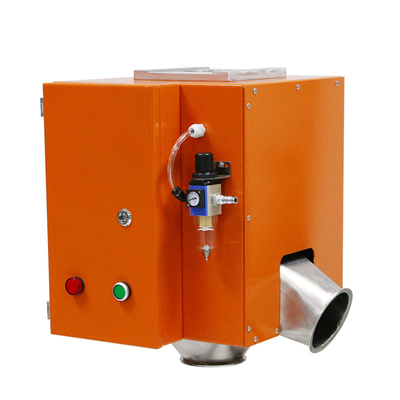

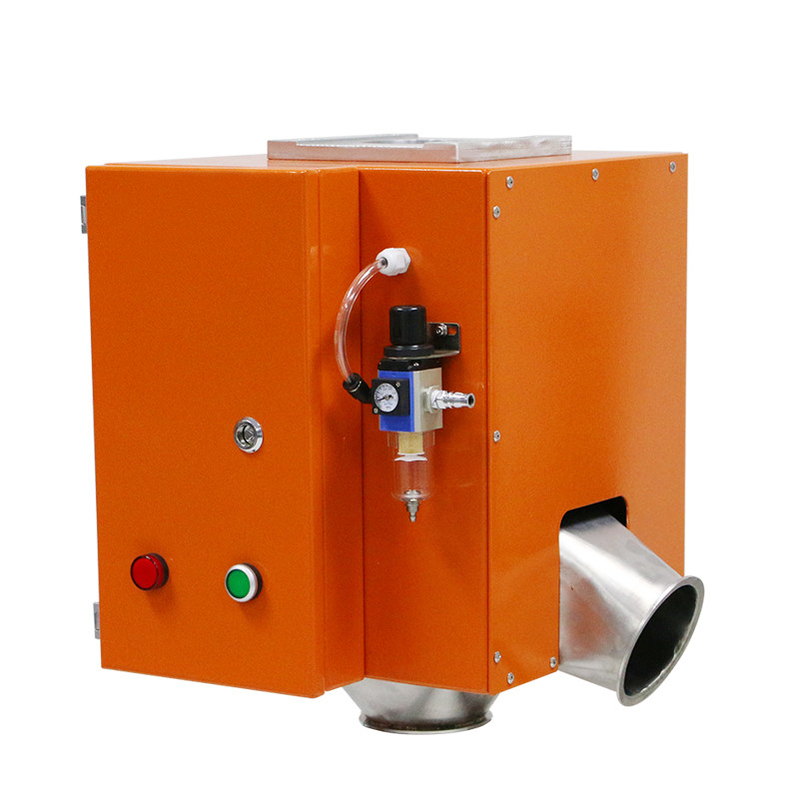

1. Collection of detection coil, controller, separation device. Easy to operate and install.
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
