Gravity Free Fall Throat Metal Detector For Food Industry Or Powder Processing

Gravity Free Fall Throat Metal Detector For Food Industry Or Powder Processing

Brief information :

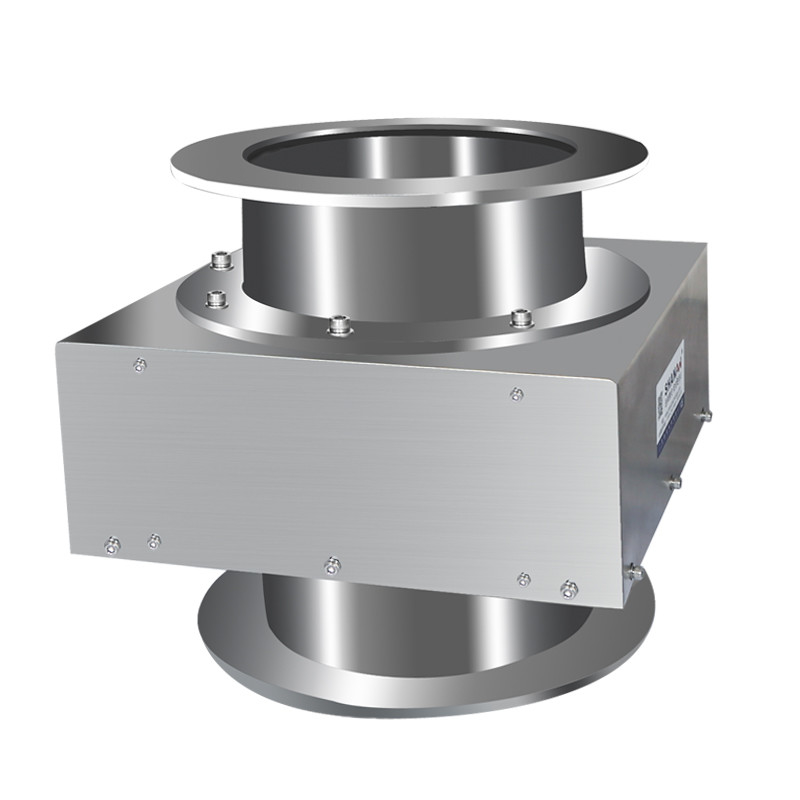

Vfinder Series Throat metal detector r is designed for free falling product in vertical packaging installations. This unit is ideal where space is limited such as above form, fill and seal machines.

Mainly features:

• Full SUS 304 built structure
• Upright feed structure .automatic free fall
• Can detect the magnetic and non magnetic metals ( for example Ferrous.cooper. Can independent place beside crush machine .all raw materials direct pass through metal separator . Prevent have metal scraps mixed into injection molding machine . Keep protect equipment screw .model tube and so on )
• The operating system uses user-friendly, intelligent design, high-definition 7 inches touch screen, intuitive and convenient. The interface is easy for the staff to operate. The effective information can be obtained without complex operation.

Control Inner parameter:

Work principle :

Once installed, bulk material falls through the metal detector. If any metallic contaminant, magnetic or non-magnetic is detected, the metal detector alerts the reject that will remove the contaminated package after it passes the fill and/or seal stages (depending on application installation).

Measuring Method :

Inductive; muti-channel operation, balanced receiver coils.

Metal Detection :

Ferrous, non-ferrous (e.g. aluminum or copper) and stainless steel.

Environment :

Standard: temp. -10°C to +40°C, rel. humidity 30 to 85% not condensing; Options: -40°C or +55°C

Product Temperature :

-30°C to +60°C, Option: -40°C to +120°C

Power Supply :

Single-Phase 110 - 240 VAC, 50/60 Hz, fuse 10 A (slow), typ. power consumption 20W, max. 60W

Machine parameter:

• Operating voltage: 220VAC (+/-10%, 50/60Hz)
• Input current: 80/160Ma
• Ambient temperature: -10/60 ℃
• Case Material: Stainless Steel
• Contact parts with material: PP plastic and PTFE
• Compressed air 4-8Kg,6-8mm hose connection
• Level of protection: IP54
• Detection accuracy: 0-10 adjustable

Reject system:

• Standard layout :Automatic stop by alarm and so on
• Optional A :Air blast (Especially for light food, like instant noodle.Small punches.)
• Optional B :Push rod(Especially for middle bag,small box.small container and so on)
• Optional C :Fall drop(Especially for some grain.nut.granule .and so on unpack products)

Application:

• Food industry
• Medical industry , detecting copper, iron, zinc, stainless steel and all metals.

• Special for plastic industry (Plastic recycling ).

• Special for food granule.candy .chocolate and so on food.

 Tips:

• 12month labor and parts full life technical support
• Full machine takes of two layer package
• Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
• All package takes of Strong ploy wooden case that meet different country import standard Installation and use
• When you takes of the package .up the rubber base ,use wheel move it to your work place.
• Then running the machine few hours before use ,No need complex installation .
• The user guide will make in book and Videos for customer reference .

Company information:

we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
