Pharmaceutical industrial for medicine tablet processing metal detector price
Company introduce:
Vfinder is a manufacturing company specialized in the design, engineering and production of Metal Detectors .check weigher .needle detector and Electromagnetic Inspection Devices.we offering solution for food industry ,Pharmaceutical industry , Textile garment industry ,Rubber industry .Tory industry where the factory need help to control their quality for find broken needles and metals .
Under our solution and machine support our valued customer can accreditation with the FDA ,ISF ,HACCP even FCCA request and requirement .
Meanwhile we strongly support the all the world public security career.with our support by our product of walk through metal detector and x ray baggage scanner . So many public can be safety , so many dangerous products can been keep away from public people .
Summary:

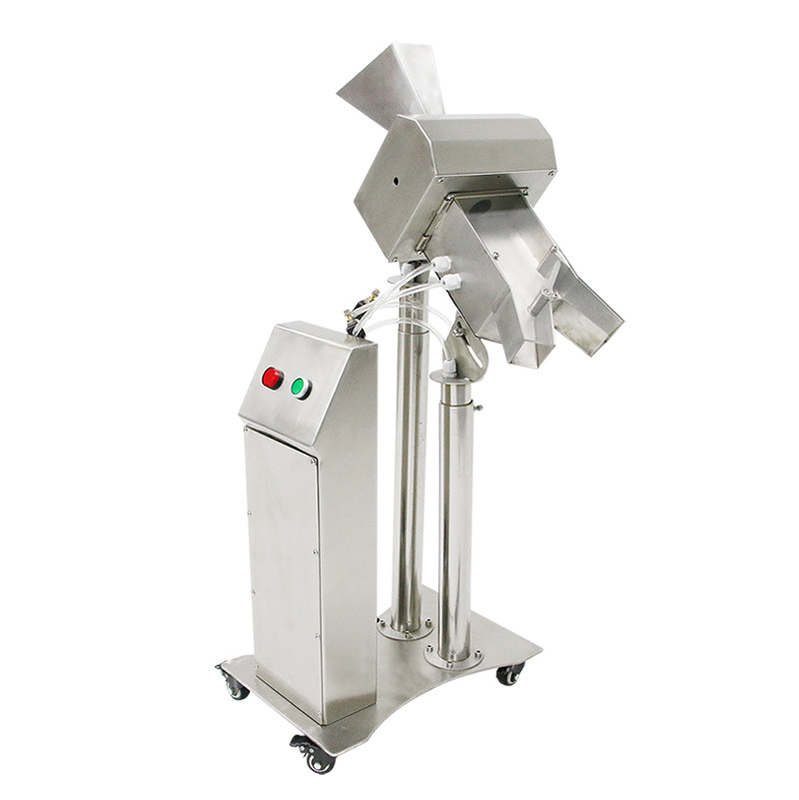

Vertical Throat Metal Separator Pharmaceutical Industry Capsule Tablet Metal Detector
use electronic sensing principle to detect metals, both magnetic and non-magnetic metal can be detected to a high-precision metal detection and separation equipment, metal, including iron (magnetic) and non-iron (non-magnetic: copper, aluminum, tin , Stainless steel, etc.), due to the old material in the process of recycling and recycling of metal impurities will be mixed in which metal impurities may cause damage to equipment, affecting production. It is necessary to exclude these potential metal particles as much as possible! The simplest way is to use an all-metal separator that automatically detects and separates particles, linear metal impurities - as long as metal can be detected and removed, whether stainless steel, copper, aluminum, zinc, steel, or iron
Economical type tablet metal separator can be applied in pharmaceutical industry for tablets, pills, capsules to detect metallic impurities.
Advantages:
1. Intelligent detection, maintenance-free;
2. The material of housing are made of SUS304 as well as those components that directly touch products.
3. High sensitivity for all metals; effective shockproof, noiseproof with special construction design;
4. Various types of caliber can be chosen, which can meet all practical applications.
Features of properties:
1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
Specification:
| Model | VMD-6 | Alarm | Buzzer,Lamp |
| Detecion method | Magnetic induction | Power Source | AC110V/240V 50-60Hz |
| Detection sensitivity | Max 110mm height by steel needle | Rated Output | Appr 15W |
| Sensitive adjustment | 6 steps | Dimension | 400(L)*680(W)*70 mm |
| Detection Area | 160*500mm | Weight | Appr11Kg |
| Deliver time | 15-20 workdays | ||
| Package | Plywooden case for package suitable for export shipment | ||
| Payment term | 50%T/T deposit,50% before shipping | ||
Features:
1. Keypad operation.
2. Sensor made from high quality magnetic material;Digitalized sensitive adjustment.
3. Dual-Side LED alarm lamp.
4. 6 steps LED sensitive indicator.
Our products are sold all over the world, you can rest assured.
