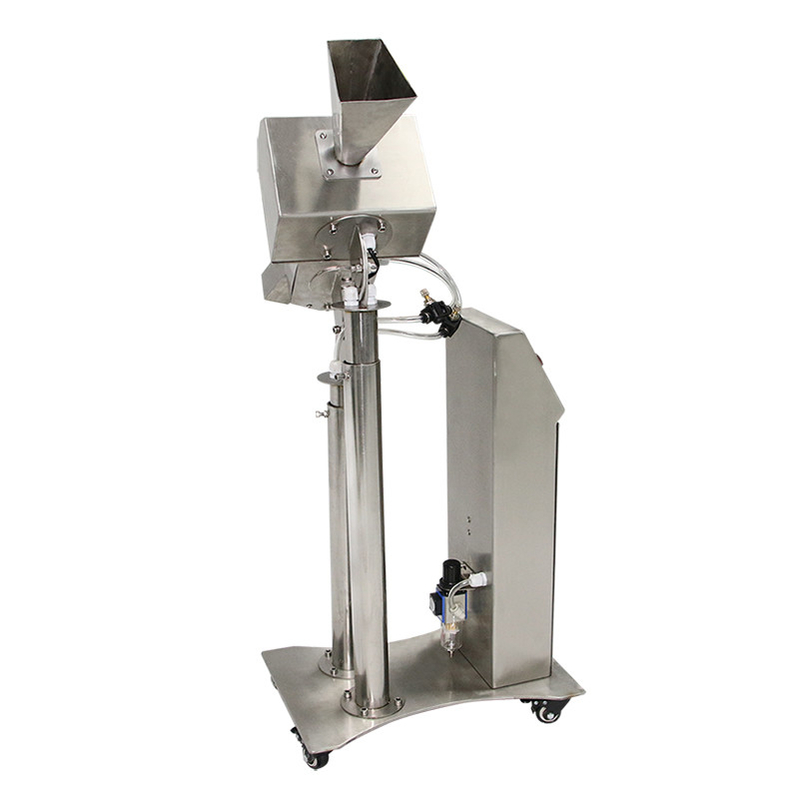

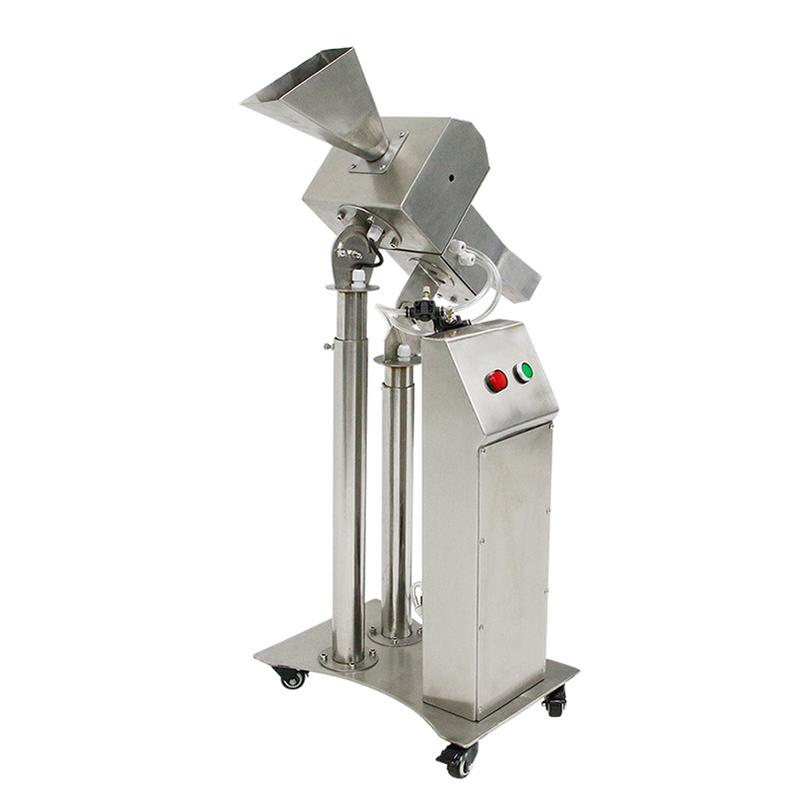

25mm Diameter High quality tablet capsule metal detector for pharmaceutical
Product Usage:
Can be used for tablet press, capsule filling machine, sieve machine and other pharmaceutical equipment, apply to tablets, capsules of metal foreign body detection.
Features:
high frequency operation mode, greatly enhance the detection sensitivity.
Precise and efficient removal of equipment to minimize material waste.
meet the pharmaceutical regulatory standards, in accordance with the GMP standard manufacturing.
Touch screen display, easy to set up and operate.
The height angle of the device can be easily adjusted, and the universal casters ensure easy movement.
Device parameters:
| name | All-digital intelligent metal detector |
| model | VDM-6T |
| Main material | Made of all stainless steel |
| Detection sensitivity | Air machine: Fe ≥ φ0.6mm No-fe≥φ0.8mm Sus304≥φ0.8mm |
| Effectively detect the hole width | 100mm |
| Effectively detect hole height | 25mm |
| Operation interface | touch screen |
| Alarm mode | Sound and light alarm, copy automatically removed |
| Body material | Subject SUS304 |
| Record function | 99 species |
| Self-learning function | Quickly learn product features and complete automatic setup |
| Phase tracking function | Maintain a stable high-precision detection capability |
| Product tracking function | Automatic adjustment of the internal adjustment according to the change of the product effect |
| Optimize the hardware structure | Using single-chip high-performance FPGA hardware program to provide hardware base |
| speed | Free to fall |
| Power requirements | AC220V (other requirements optional) |
| Protection class | IP54 |
| Overall size | 870*650*1000mm |
| Net weight |
100kg |
Features of properties:
1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
