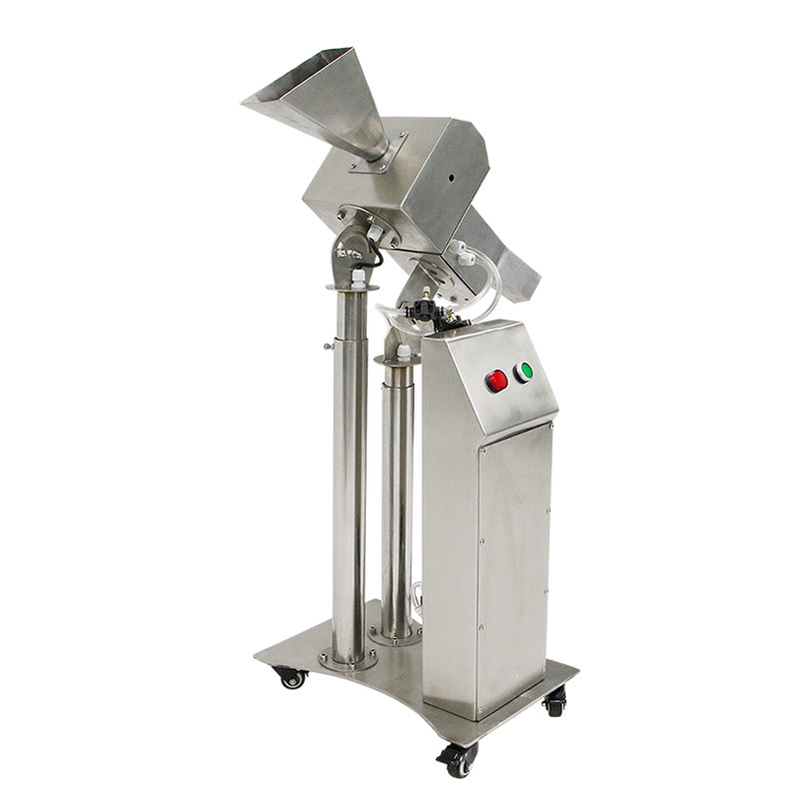

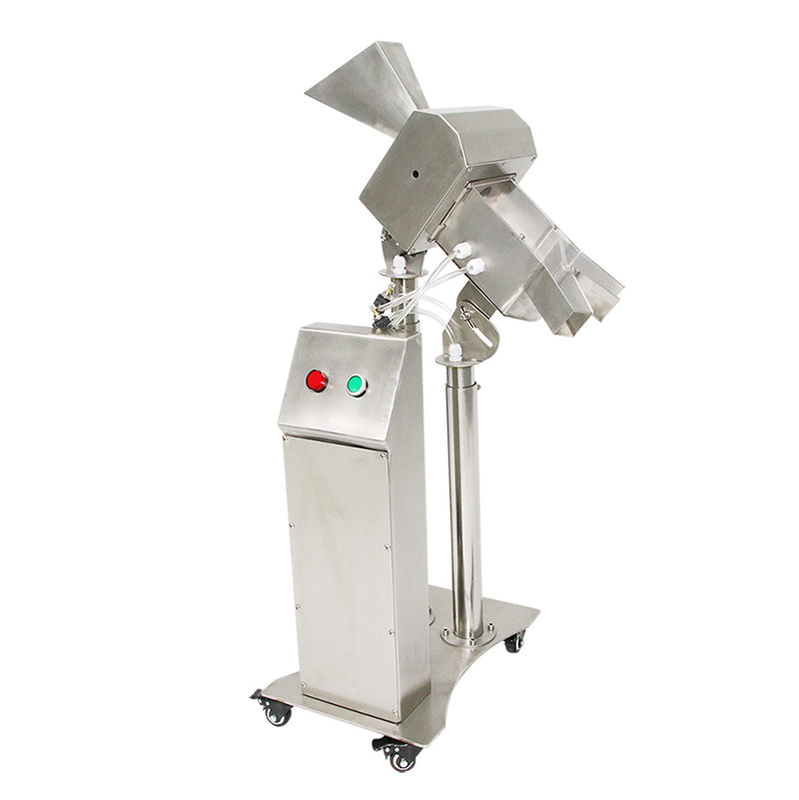

Economical type tablet metal separator high sensitivity tablet metal detector made in China
Germany imported technology, main control board in Germany, has high accuracy, high sensitivity
Designed for metal detection pharmaceutical industrydesign of the machine, to improve the detection performance, can detect tiny scrap metal and metal wireand eliminate
Supporting the tablet machine, capsule filling, packing machine, can also be used alone
Product advantage:
Completely waterproof design, easy to clean
Manual lifting frame height and tilt angle, easy moving and cleaning
Equipment using mirror stainless steel 304, eliminating device and non-metallic products channel can meet the pharmaceutical industry grade requirements and FDA certification
Performance characteristics:
With learning function, product inhibition function, can adapt to different product detection
Has 200 kinds of products storage function, can be quickly replaced product parameters
Rapid elimination by eliminating system, can reduce the material loss, does not interfere with the normal manufacturing process
Detection of material characteristics: tablet, capsule, granule
The detection sensitivity: Fe >= 0.15mm, SUS >= 0.3mm
Delete: eliminating hopper automatic removal of metal impurities
A variety of opening size, can be customized according to customer requirements
Overall design of the GMP and CE requirements, which can meet the 21CFR eleventh standard certification
Protection grade: IP65, can meet the requirements of HACCP certification.
Product parameter
| model | VMD-6T |
| feed caliber | Φ30mm |
| detection accuracy | Φ0.2mm |
| processing capacity | 10000-15000 granules per minute(tablets) |
| work power | AC220V±10% 50-60Hz (can be customized AC 110v or AC 380V ) |
| work environment | -10~+80 degrees |
| detection time | 0.3-5 second(can be adjusted) |
| compressed air | 4-7Bar |
