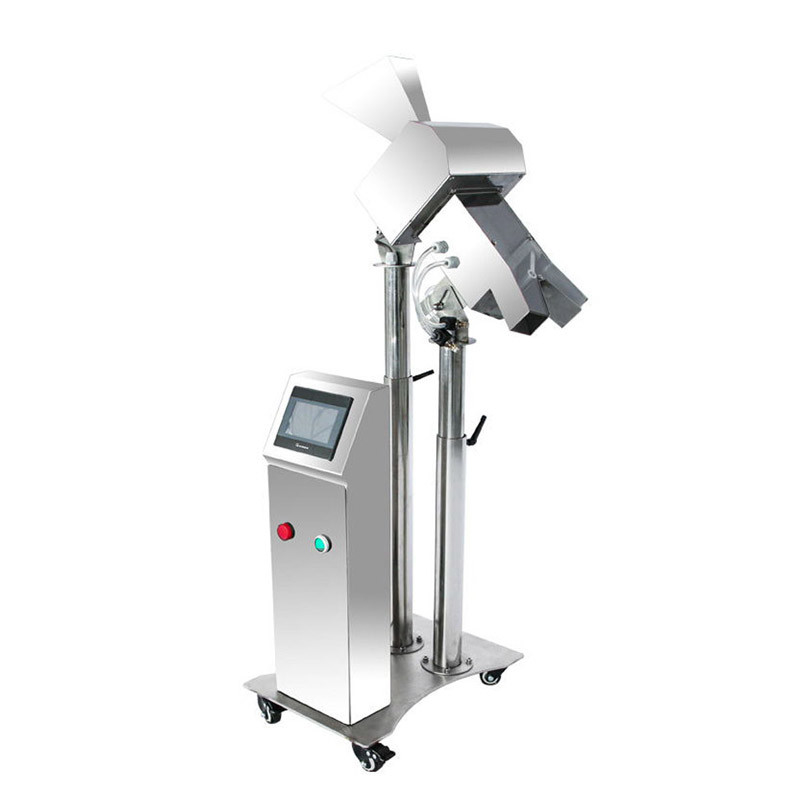

Digital pharmaceutical tablet metal detector machine for tablets and pills.
Application of Tablet metal detector machine:
It is mainly using for metal detectoring in tablets and pills in pharmaceutical production room and laboratory developing.
Features of tablet metal detector machine:
1. With two kinds of working frequency, the equipment can automatically choose the right frequency according to the product information.
2. Adopt touch LCD screen display, can operate without button.
3. Enjorys a self-learning function, and can store 100 kinds of products date.
4. Enjorys high sensitivity. can automatically reject the foreign bodies.
Technical specificaiton of metal detector machine:
| 1. Model: VMD-8T |
| 2. Inspect ability: Fe, Al, Pl, Cu and other non-ferrous metal |
| 3. Dual frequencies |
| 4. Inspect ability (width): Max 115mm |
| 5. Inspect ability (height): Max 25mm |
| 6. Alarming form: Rejection via flipping the bezel |
| 7. Configuration material: SUS316 stainless steel |
| 8. Sensitivity: Fe≥0.8mm SUS≥1.5mm |
| 9. With rejecter |
| 10. Power supply, voltage: 220V, 50 Hz, 1ph, 200W |
| 11. Environment temperature: -10 ℃ ~40℃ |
| 12. Touch screen |
Technical Parameters:
| Model | VDM-8T | VDM-8T | VDM-8T | VDM-8T | |
| Cutting caliber | Φ25mm | Φ35mm | Φ50mm | Φ75mm | Φ100mm |
| accuracy | Φ0.2mm | Φ0.3mm | Φ0.5mm | Φ0.7mm | Φ1.0mm |
| Amount | 250KG/HR | 300-400 KG/HR | 700-800 KG/HR | 1000-1500 KG/HR | 2000-2500 KG/HR |
| voltage | 220V/50~60Hz | 220V/50~60Hz | 220V/50~60Hz | 220V/50~60Hz | 220V/50~60Hz |
| Temp | -10~+80 | -10~+80 | -10~+80 | -10~+80 | -10~+80 |
| Nesting time | 0.3-5S | 0.3-5S | 0.3-5S | 0.3-5S | 0.3-5S |
| Compressed air | 3~5Bar | 3~5Bar | 3~5Bar | 3~5Bar | 3~5Bar |
| Dimension | 318X230X326(mm) | 318X230X326(mm) | 318X230X326(mm) | 378X270X350(mm) |
390X280X385(mm) |
Our products are sold all over the world, you can rest assured.
