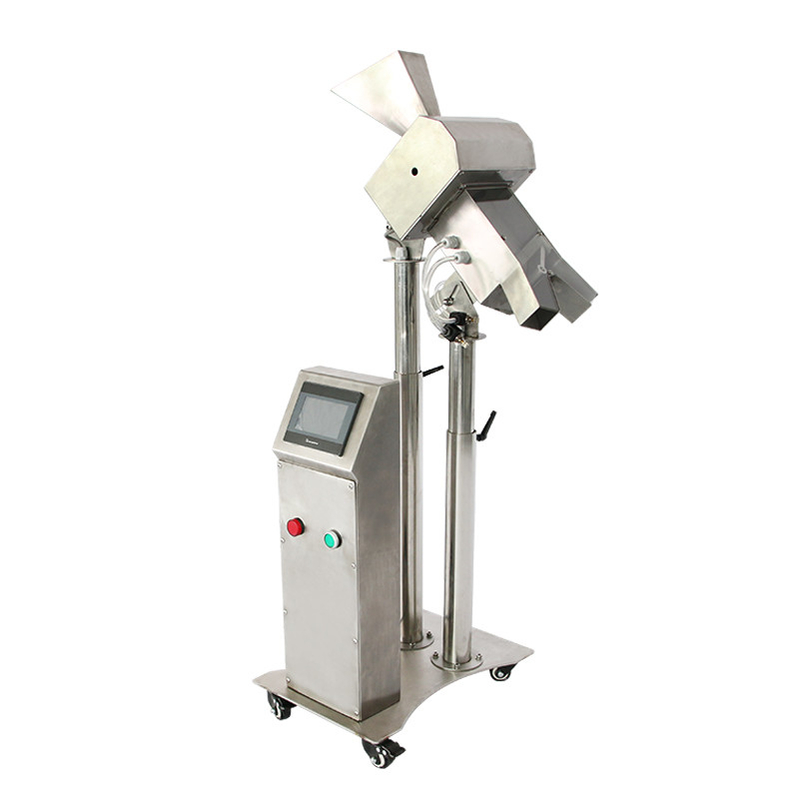

Capsule / Tablet Metal Detector With Automatic Push Rod Reject System

Capsule / Tablet Metal Detector With Automatic Push Rod Reject System

  • Highlight

    pharma metal detector

    ,

    tablet metal detector

  • Product Name
    Pharmaceutical Metal Detector
  • Other Name
    Tablt Metal Detector
  • Sensitivity
    0.3mm Ferrous
  • Structure Material
    SUS316
  • GMP Standard
    Yes
  • Detection Diameter
    30mm
  • Reject System
    Automatic Push Rod
  • Customized
    OEM
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    VDM-8T
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

Capsule / Tablet Metal Detector With Automatic Push Rod Reject System

Pharmaceutical Tablet medicine processing metal detector with high sensitivity





The VFINDER Pharmaceutical Metal Detector provides the ideal solution for detection and rejection of the smallest metal contaminants in tablets and capsules. With its current GMP design and construction suited for FDA compliance, the system meets the stringent QA requirements of the pharmaceutical industry. A free IQ/OQ Validation package is included.



V FINDER Pharmaceutical detectors use precision Digital Signal Processing Technology to detect ferrous, non-ferrous, and stainless steel contaminants. Available in stainless steel construction, contact parts are all removable for cleaning without the need for tools. The Phantom’s high quality build and straightforward interface enhances ease of use for the operator. This compact detector can be easily angled and height-adjusted to suit any press configuration. Plus, it’s the only detector that features an electrical powered lift.



Renowned for their superior accuracy and reliability, Phantom Pharmaceutical Metal Detectors act as essential Critical Control Points in HACCP systems, effectively identifying and rejecting potential contamination.



KEY FEATURES

  • Core DSP: Digital Signal Processing (DSP) technology provides unparalleled precision, speed, and detection results
  • UltraSense: Maintains high sensitivity levels to detect the smallest metal contaminants
  • Auto Test ensures consistent performance and saves costs
  • Automatic Calibration at the touch of a button
  • Intuitive User Interface Provides dedicated shortcut keys
  • Flash RAM Memory technology prevents information loss
  • Robust Modular Design for fewer product parts results in greater reliability

APPLICATIONS

  • Tablets
  • Capsules
  • Nutraceuticals
  • Pharmaceuticals
  • Bubble Gum
  • Tablets
  • Extruded Candy







Product details:



VMD-8T Fe(mm) SUS(mm) Non Fe(mm)
sensitivity 0.2 0.4 0.25
