X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products

X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products

Products - Food X Ray Machine
  • Product Name
    Food X-Ray Inspection Machine
  • Optimum Inspection Sensitivity
    Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
  • Inspection Tunnel Size Parameters
    400mm X 250 Mm Or Customized
  • Conveyor Speed
    5-60 M/min
  • Load Capacity
    10Kg Or Customized
  • Rejector Mode
    Sound And Light Alarm, Belt Stops (Rejector Optional)
  • X-ray Leak
    <1μSvh (CE Standard)
  • Detector Type
    Linear Scan
  • Protection Level
    IP67
  • Monitor
    17'' Full-color TFT Touch Screen
  • Operation Method
    Touch Screen Operation
  • Operation System
    Linux (Core 4.10)
  • Support Data Interface
    USB
  • Parameter Settings
    Self-learning / Manual Adjustment
  • Body Material
    Food Grade SUS 304/ SUS316
  • Conveyor Belt Material
    PU Belt/ PVC Belt
  • Air Conditioning
    Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
  • Protection Method
    Detachable Protective Curtain
  • Cleaning Method
    Tool-free Removal Of Conveyor Belt For Easy Cleaning
  • Power Supply
    AC110V/220/380V, 50/60Hz
  • Environmental Requirements
    Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
  • Machine Weight
    360Kg
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    SAXR-4025
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products

  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
  • X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products
Get Price Contact Now
Products Description

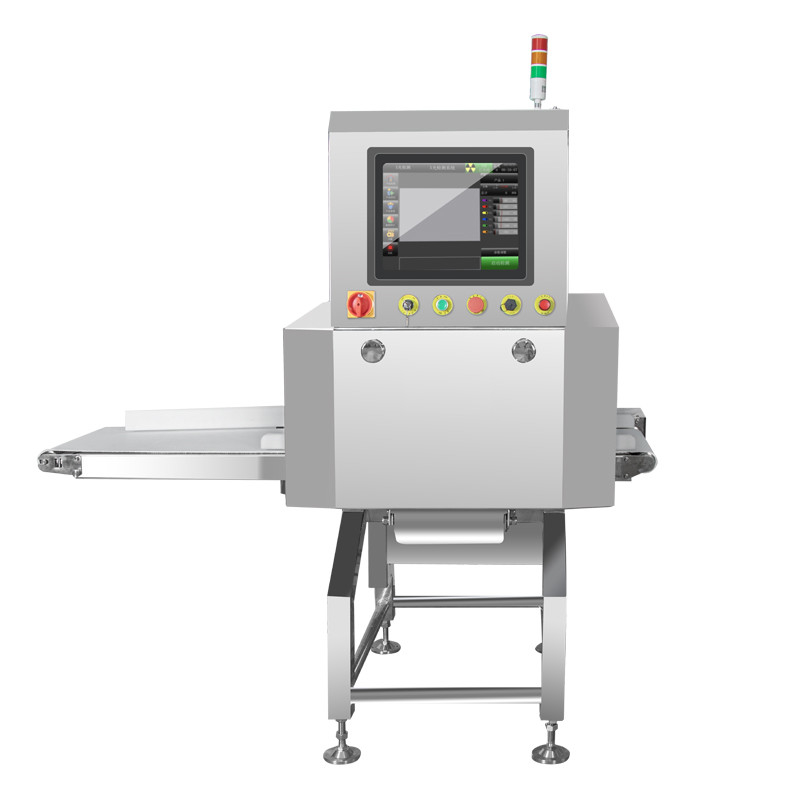

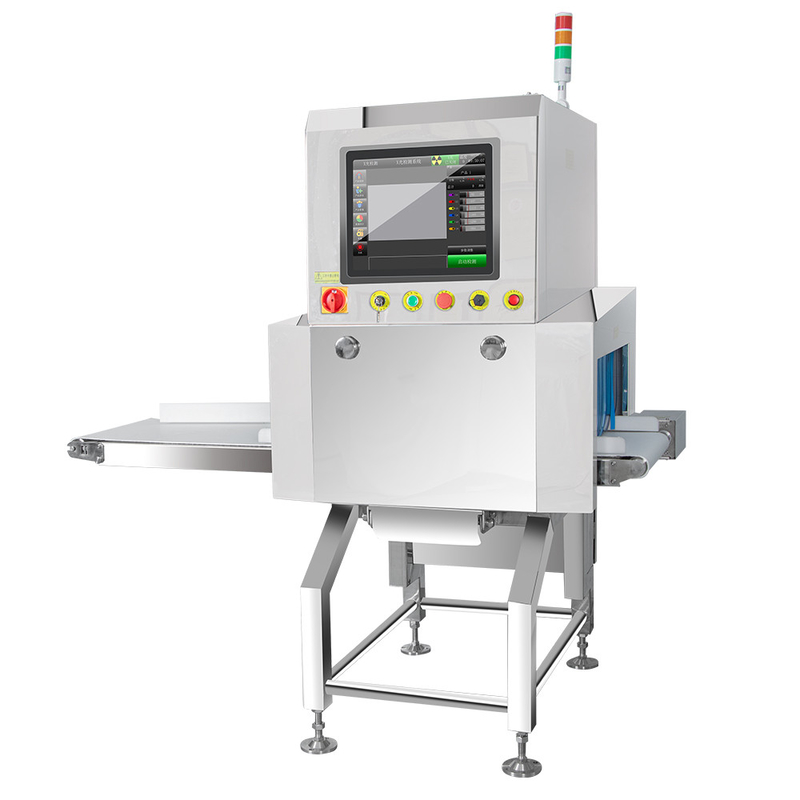

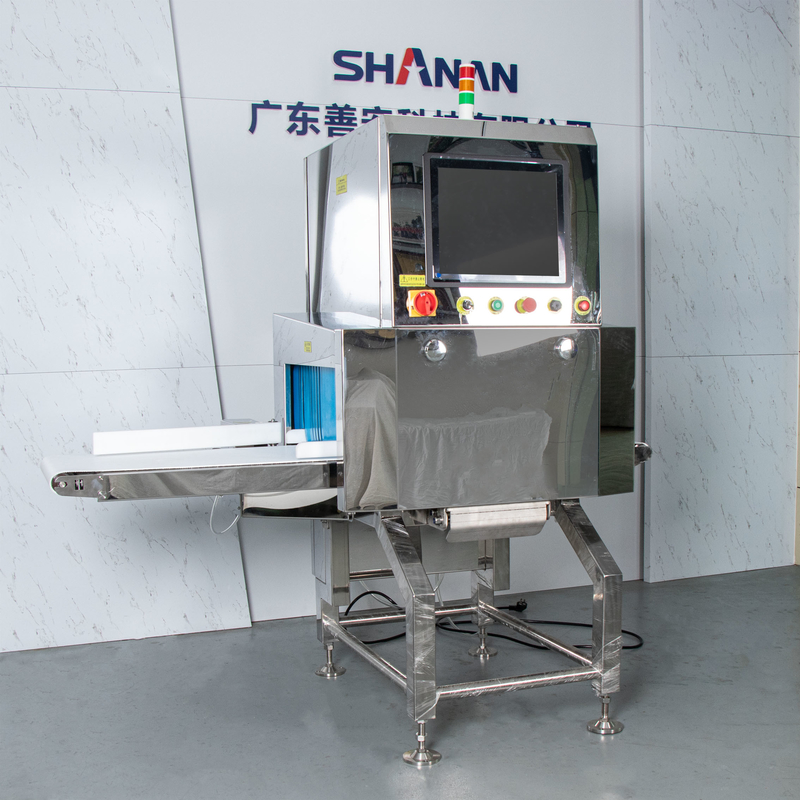

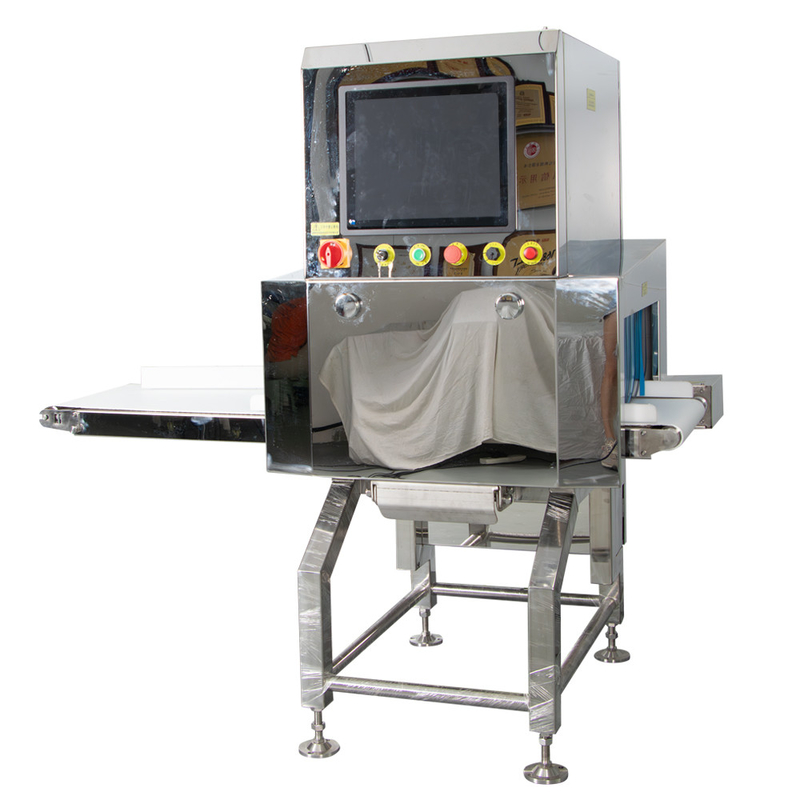

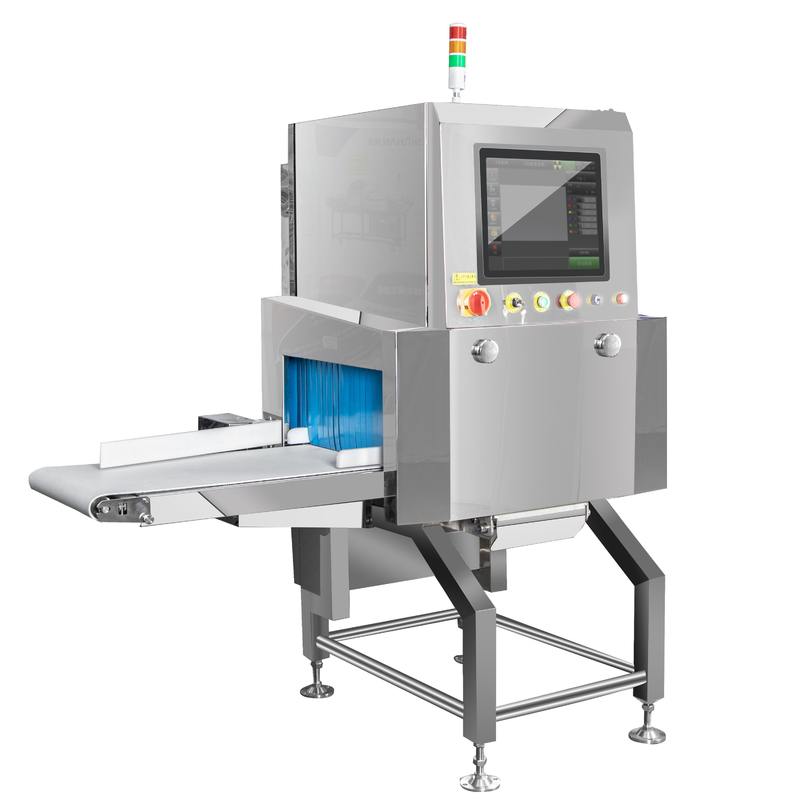

X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 0
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 1
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 2
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 3
Model
SAXR-4025
X-ray source
VJX IXS100 150W/210W 80kV
Detect maximum width(mm)
250 (can customize)
Detect maximum height (mm)
400 (can customize)
Best empty machine detection accuracy
FE(Φmm)
≥0.4
Glass ball(Φmm)
≥1.0
Ceramic ball(Φmm)
≥1.0
Overall equipment size
1650x530x1895 mm
detector
DT X-Scan C 0.4 mm
conveyor belt
10-60m/min speed adjustable
Display
17-inch full-color touch screen
Maximum load-bearing capacity of conveyor
5Kg
operating system
Windows 11
working environment
Temperature: 0‒40°C Humidity: Relatively moderate 30~90%, no condensation
X-ray leak
< 1 microsievert/hour
Exclude organizations (optional)
Swing bar/Push plate removal/Flip plate/Blow
Protection method
Removable protective curtain/shield
Equipment fixation and mobility
The feet can be raised and lowered. If the rejection device is a stand-alone machine, it should be the same as the main machine.
power supply
AC 220V
Protection level
IP65
Body material
SUS304
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 4
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 5
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 6
X Ray Machine For Food Industry With Rejection System Aluminum Wrapped Products 7
