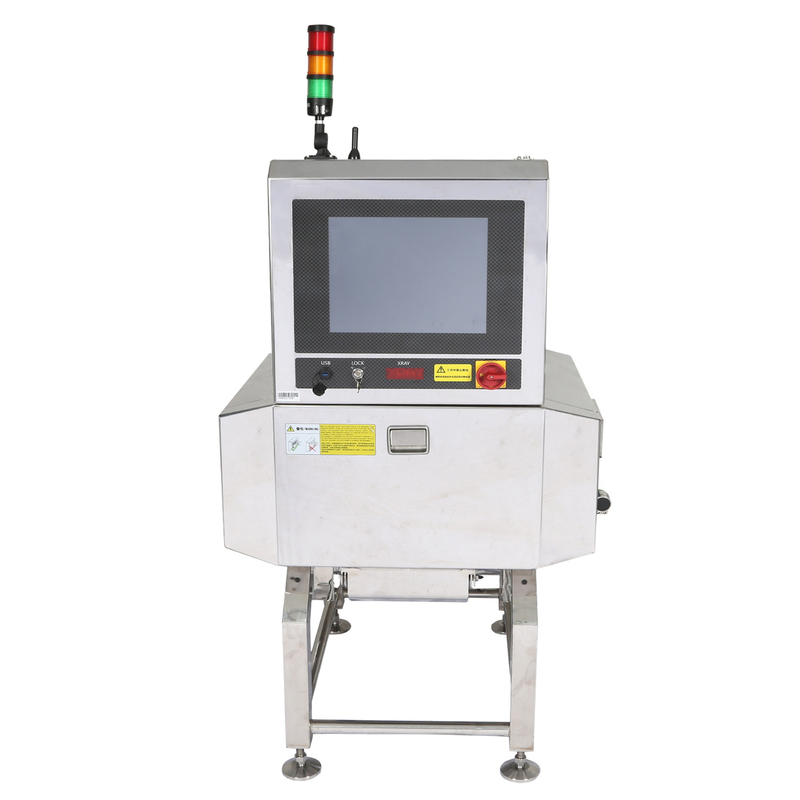

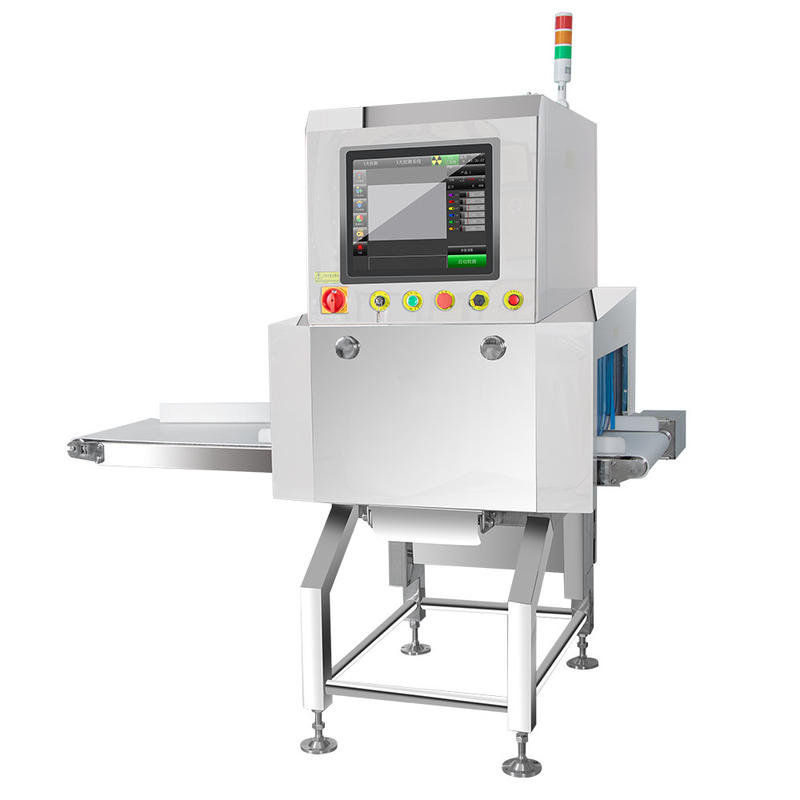

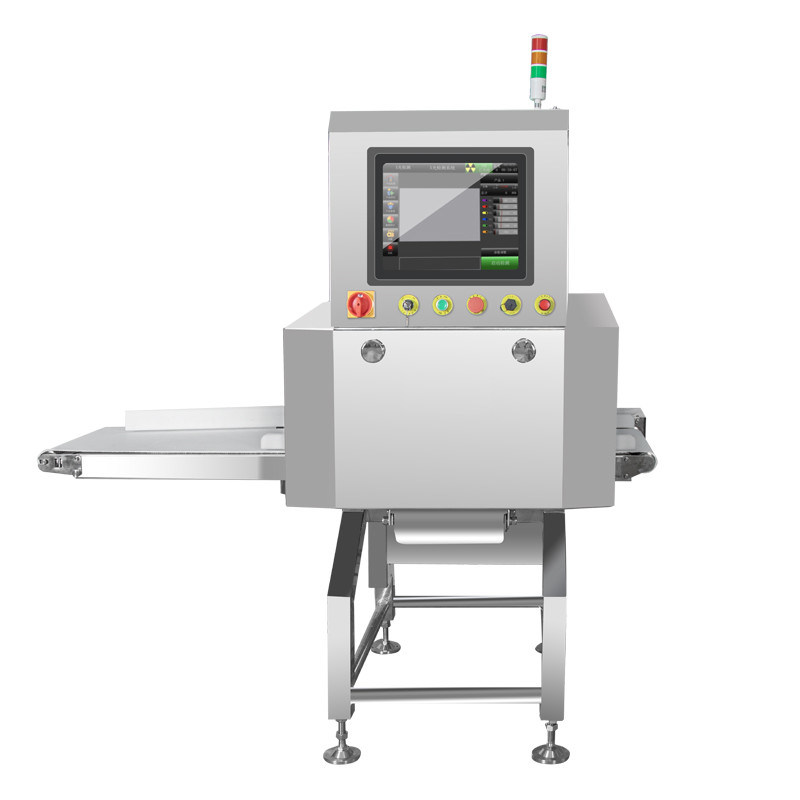

XIS-3500D is widely used for the detection of foreign objects in its food, medicine, beverage and
other products (for example: metal, stone, glass, bone, rubber, etc.), not only that, but also for multi-point
miss detection and shielding segmentation detection. , liquid level height detection, high-speed rejection
detection, remote control, integrated real-time management and other functions
| Product features and advantages: |
| model | XIS-3500D |
| Optimum detection accuracy |
Lead: φ0.2mm, stainless steel ball: φ0.4mm, ceramic ball: φ0.8mm, Bone: φ0.8mm, glass: φ1.0mm
|
|
Detecting size parameters
|
Mamum dtidth: 385mm |
| Maximum detection height: 285mm | |
| Conveying bandwidth | 410mm |
| Conveyor belt height from the ground |
850±30mm
|
| Conveyor speed |
10-120 Meter/minute
|
| Load capacity | 10Kg |
| X-ray output | 40-80kVp/0.2-5mA |
| X-ray leak | <1μSvh |
| Detector type | Linear scan |
| Irradiation direction | Top-illuminated |
| Pixel size | 0.4mm |
| monitor | 15-inch LCD touch screen |
| Operation method | Touch screen operation |
| software | X-ray Inspection System |
| system | Windows 7 |
| Support data interface | USB |
| parameter settings | Self-learning / manual adjustment |
| Case material | SUS304 |
| Conveyor belt material | PU belt |
| air conditioning | Internal circulation industrial air conditioner, automatic temperature control |
| Protection method | Detachable protective curtain |
| Cleaning method | Tool-free removal of conveyor belt for easy cleaning |
| power supply | AC220/230V, 50/60Hz |
| Environmental requirements | Temperature: 5-35 ° C / humidity: 30-85% RH (no condensation) |
| Machine size |
900*920*1825mm(Length * width * height)
|
| Machine weight | 350Kg |
| Product application: |
