Application

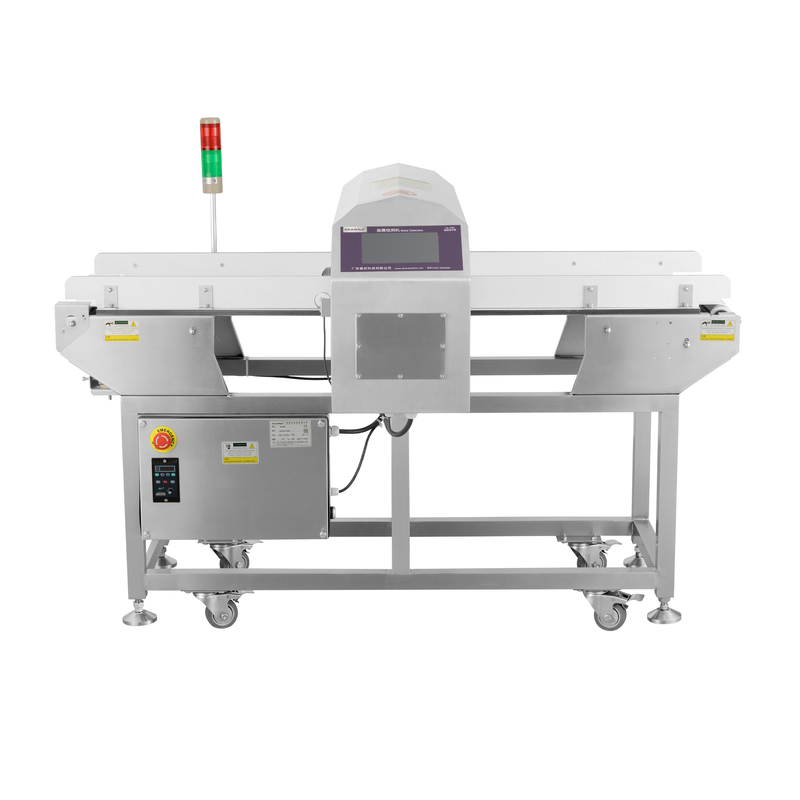

Metal detectors are used to detect metal contamination during food processing. To prevent metal foreigners from entering the food, consumers and factories that may harm consumers will be compensated. Help protect the factory's brand reputation. Help comply with food safety standards, retail codes of practice, industry guidelines. Metal detectors are widely used in most industries such as food processing, chemical, pharmaceutical, cosmetics, toys, etc.
Parameter
| No. | Part | SA-3009 | SA-3012 | SA-3015 |
| 1 | Size of Effective Width(mm) | 300 | 300 | 300 |
| 2 | Size of Effective Height(mm) | 90 | 120 | 150 |
| 3 | Width of PU Belt (mm) | 280 | 280 | 280 |
| 4 | Body length (mm) (Without rejector) | 1500 | 1500 | 1500 |
| 5 | Belt height, above ground(mm) | 800±50 | 800±50 | 800±50 |
| 6 | Belt speed(m/min.) | 32 | 32 | 32 |
|
7 |
Sensitivity (Air test of center) (mm) |
FE:0.8 NFE:1.0 SUS304:1.2 |
FE:0.8 NFE:1.2 SUS304:1.5 |
FE:1.0 NFE:1.5 SUS304:1.8 |
| 8 | Maximum Weights to drive (KG) | 25 | 25 | 25 |
| 9 | Sorting/Rejecting device |
Stop belt with audible and visual alarm (Down belt,Flipper,Pusher optional) |
||
| 10 | Power | AC 220V±10% 50Hz(60Hz) | ||
Note: The sensitivity above is only based on the Test Sample. The actual sensitivity would be affected by the product being inspected and working environment.
Features
※ Detector is made by hard filling technology with better stability.
※ An intelligent learning function, automatically set parameters with simple operation.
※ Multiple filtering algorithm, X - R orthogonal decomposition algorithm, stronger anti-interference.
※ Phase intelligent tracking technology, better stability.
※ Anti-interference photoelectric isolation drive, remote installation operation panel.
※ Based on adaptable DDS and DSP technology, they can improve detection sensitivity and stability.
※ Store 100 kinds of product parameters by ferromagnetic random-access memory.

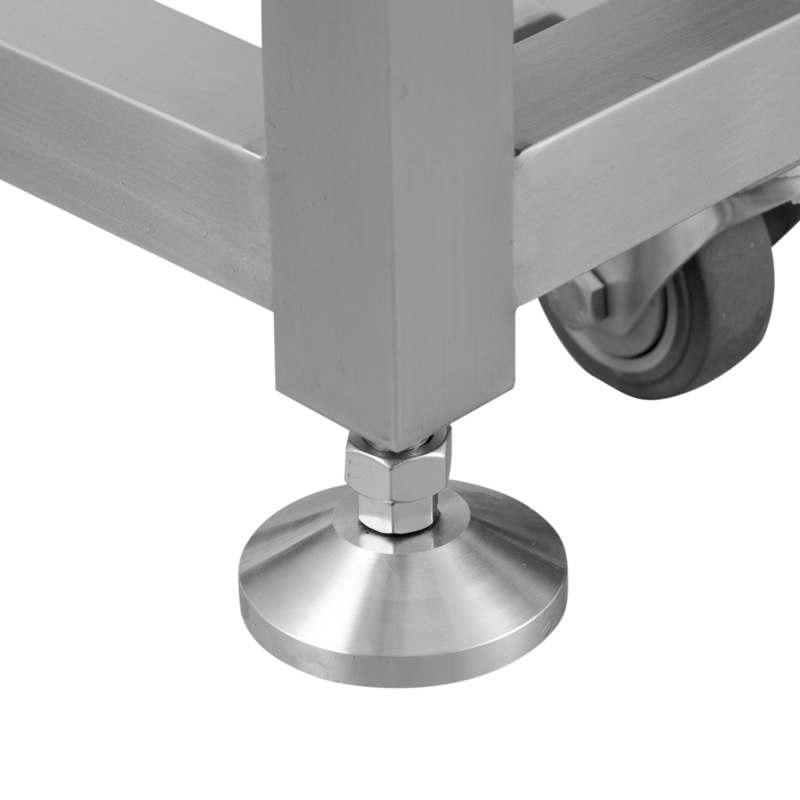

※ Frame and roller made by 304 stainless steel, strong and durable.
※ Can detect all kinds of metal including Iron, Stainless Steel, Copper, Aluminum.
Our products are sold all over the world, you can rest assured.
