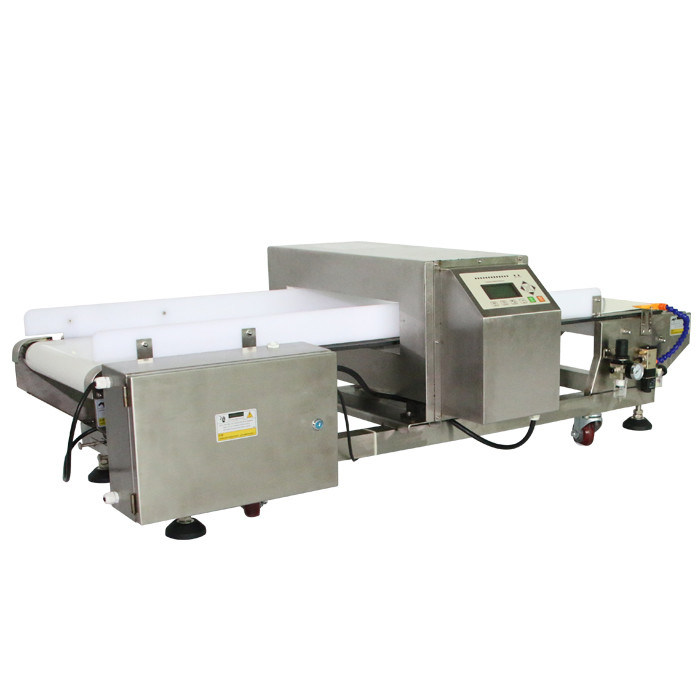

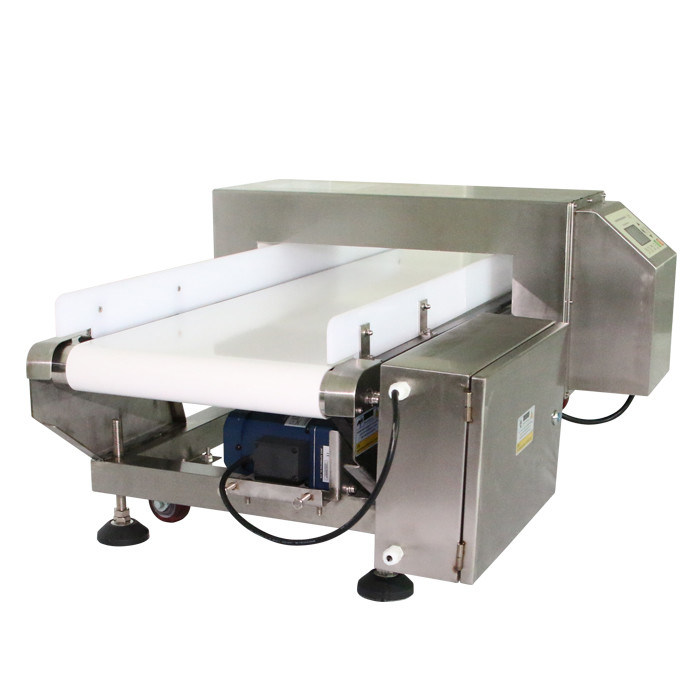

Conveyor Belt System with Metal Detector Equipment for Food and Cosmetic
|
(Quick to know)Parameters: |
|||||||||
|
Model
|
VDF series
|
||||||||
|
Machine specification
|
Normal machine
|
Customized width
|
|||||||
|
(mm)
Detection Width
|
400
|
300 customized
|
|||||||
|
(mm)
Detection Height
|
100
|
120
|
150
|
200
|
250
|
300
|
350
|
400
|
|
|
Detection
Sensitivity
|
Fe(Φmm)
|
≥0.6
|
≥0.8
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
|
Non-Fe(Φmm)
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
304Sus(Φmm)
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
Alarm and rejector system
|
Automatic stop by alarm and sound or push rod or falling drop
|
||||||||
|
Machine structure
|
Full structure takes of stainless 304
|
||||||||
|
Machine size (mm)
|
L1520mm×W830mm×H1100mm
if customized it will according to customized size
|
||||||||
|
Machine weight
|
Around 250KG if customized the weight will different
|
||||||||
|
Voltage and power
|
220V 50Hz 90W
|
||||||||
|
Load ability of belt
|
5-25KG
conveyor belt running speed:25-30m/min or customized various
|
||||||||
|
Height of line
|
750mm±50mm can customized
|
||||||||
|
Note :Normal size machine have stocks. Unnormal size machine have to customized
|
|||||||||
Tech:
| 1. Identify a variety of magnetic and non-magnetic metals like iron, stainless steel, aluminum, etc. even if the metal contained in the food products. |
| 2. Adopt the-double-circuit signal detection make it high sensitible and strong anti-disturbance. |
| 3. With the double circuit signal demonstration function: When the metal good is passing, the signal light will demonstrate different inductions according to the size of the metal objects. |
| 4. With the adjustment function of products effect such as moist products and products including sugar or salt, they all can make the machine create a signal from metal, which is actually has no metal in it, so it gets wrong information from the products and affects the detection result. So it can reduce the products’ effect to get better detection result via using this machine with this function. |
|
5. Get rid of missing detection. When there are several metal signals passing, the machine will automatically record the signal amount, therefore it won’t have miss detection results. |
|
6. Control system: Controled by ADLINE microprocessor. |
| 7. Conveyors: PU (polyurethane) or PVC food grade conveyor. |
| 8. Special transport mechanism designed can maximize the sensitivity of metal detectors. |
| 9. Flexible modular design can be customized according to different requirements . |
|
10. Easy for workers to clean because of mirror stainless steel with open transport system. . |
| 11. Conveyer belt meet FDA standards. |
| 12. Meet the requirements of IFS and HACCP certificates. There are a variety of options to exclude institutions depending on the application |
How a metal detection system work?
|
Regarding Quality Assurance & Food Safety Magazine, all of general purpose non-ferrous metal detectors work in the same way: |
| 1.The three coils are wound completely parallel on the non-metallic frame. |
| 2. The center coil is connected to a high frequency radio transmitter. |
| 3. Two transmission-receiving coils sit on either side of the center coil. |
| 4. They receive the same signal and produce an identical, balanced output voltage because the two outer coils are identical and the exact same distance from the center. |
|
5. When a particle of metal passes through the system: The high-frequency field is disturbed beneath one coil, changing the voltage and disrupting the balance. |
| 6. The output fluxes from zero, producing a signal alerting the system to the presence of metal. |
| 7. Depending on the specifics of the system, a rejection mechanism is generally activated, with the ideal result of removal of 100 percent of the metal and a minimum amount of salable product. |
