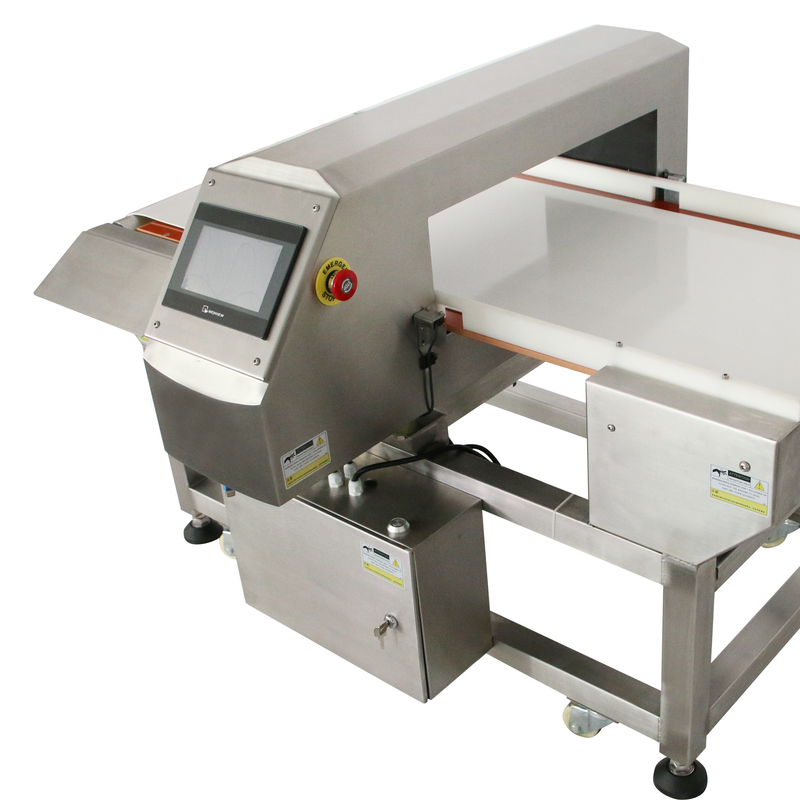

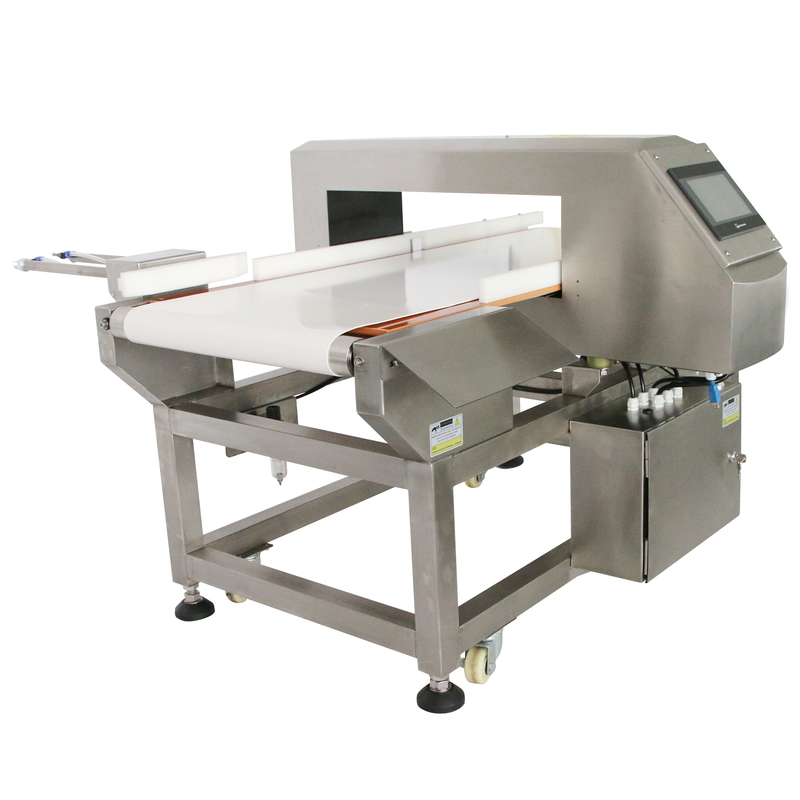

Detector de Metales Para la Industria Alimentaria Metal Detector Price
Quick details:
|
Specifications for your reference: |
|||||||||
|
Model
|
VDF series
|
||||||||
|
Machine specification
|
Normal machine
|
Customized width
|
|||||||
|
(mm)
Detection Width
|
400
|
300 customized
|
|||||||
|
(mm)
Detection Height
|
100
|
120
|
150
|
200
|
250
|
300
|
350
|
400
|
|
|
Detection
Sensitivity
|
Fe(Φmm)
|
≥0.6
|
≥0.8
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
|
Non-Fe(Φmm)
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
304Sus(Φmm)
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
Alarm and rejector system
|
Automatic stop by alarm and sound or push rod or falling drop
|
||||||||
|
Machine structure
|
Full structure takes of stainless 304
|
||||||||
|
Machine size (mm)
|
L1520mm×W830mm×H1100mm
if customized it will according to customized size
|
||||||||
|
Machine weight
|
Around 250KG if customized the weight will different
|
||||||||
|
Voltage and power
|
220V 50Hz 90W
|
||||||||
|
Load ability
|
5-25KG
conveyor belt running speed:25-30m/min or customized various
|
||||||||
|
Height from the earth
|
750mm±50mm can customized
|
||||||||
|
Note :Normal size machine have stocks. Unnormal size machine have to customized
|
|||||||||
| Deteails: |
| 1. Adopt the theory of balance, more reliable; |
| 2. Phase-adapted technology can adapt products in order to effectively eliminate product effect. |
| 3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency. |
| 4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters. |
| 5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs. |
| 6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters. |
| 7. It can store more than 100 kinds of testing data of products. |
| 8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs. |
| 9. Suitable for wet, dry, dust, dew environment, made of stainless steal, has HACCP attestation, waterproof IP65 |
How does the metal detector system operate:
|
Regarding Quality Assurance & Food Safety Magazine, all of general purpose non-ferrous metal detectors work in the same way: |
| 1.The three coils are wound completely parallel on the non-metallic frame. |
| 2. The center coil is connected to a high frequency radio transmitter. |
| 3. Two transmission-receiving coils sit on either side of the center coil. |
| 4. They receive the same signal and produce an identical, balanced output voltage because the two outer coils are identical and the exact same distance from the center. |
|
5. When a particle of metal passes through the system: The high-frequency field is disturbed beneath one coil, changing the voltage and disrupting the balance. |
| 6. The output fluxes from zero, producing a signal alerting the system to the presence of metal. |
| 7. Depending on the specifics of the system, a rejection mechanism is generally activated, with the ideal result of removal of 100 percent of the metal and a minimum amount of salable product. |
