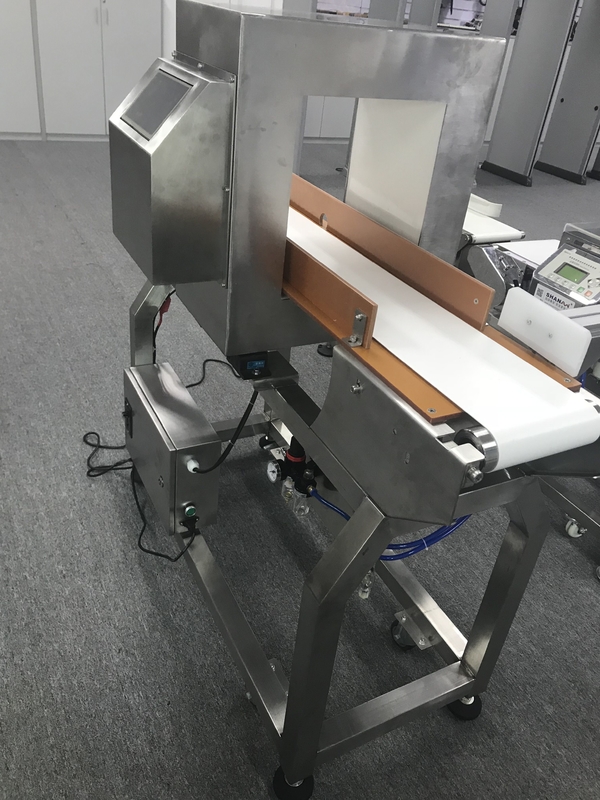

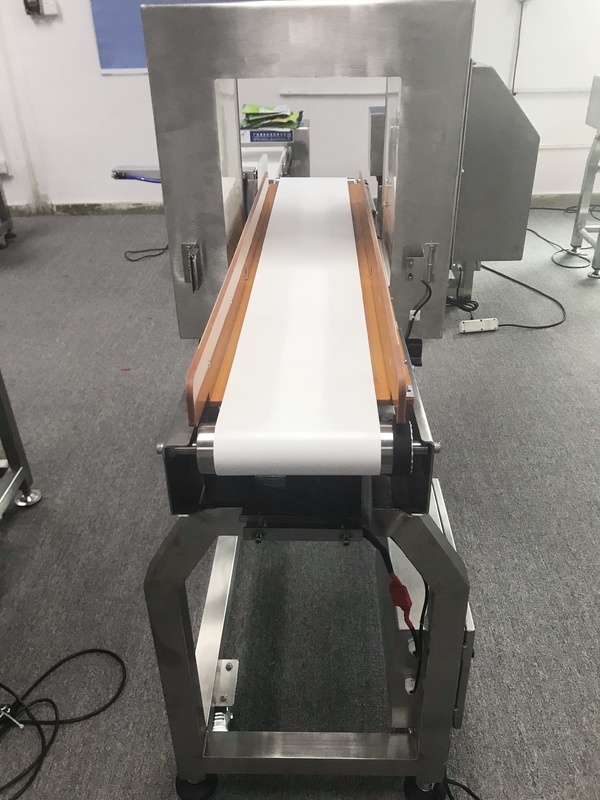

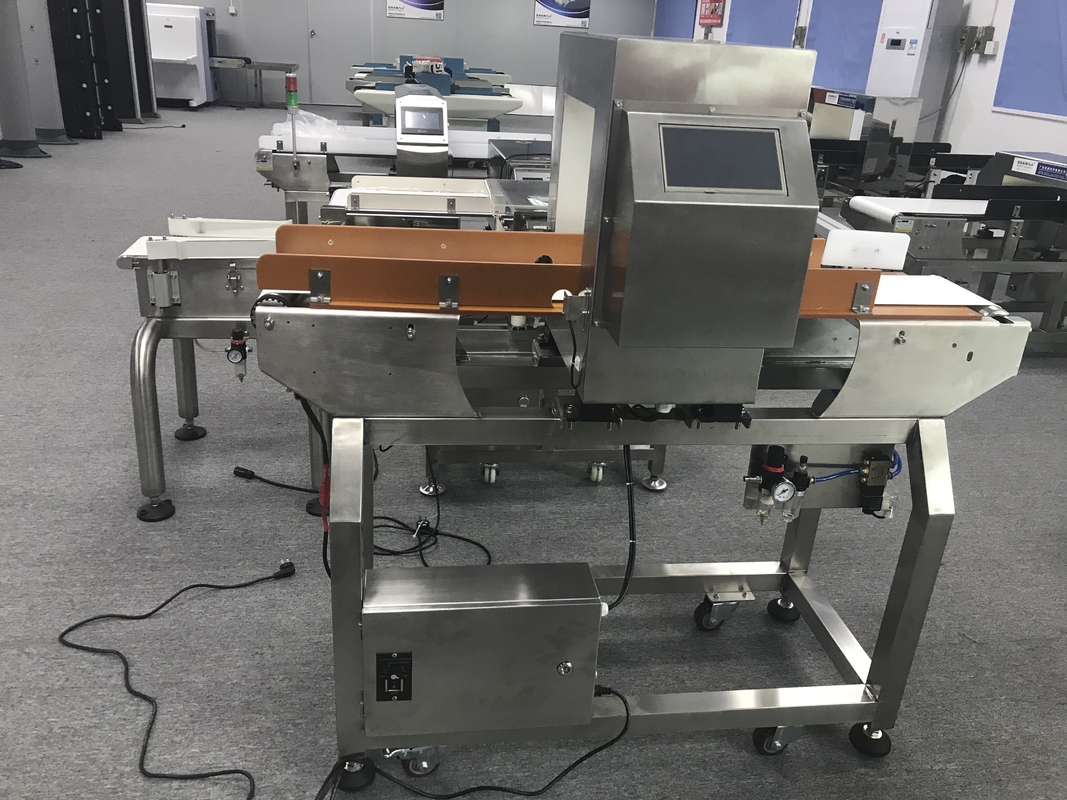

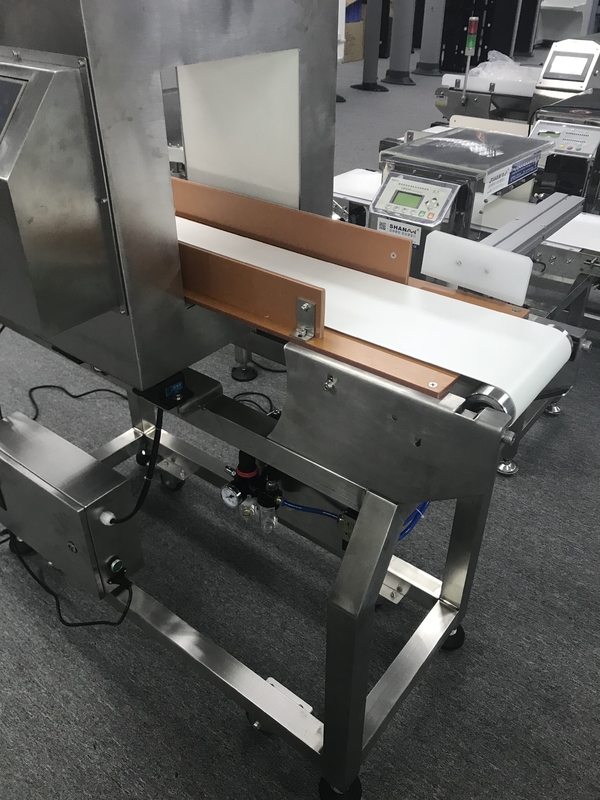

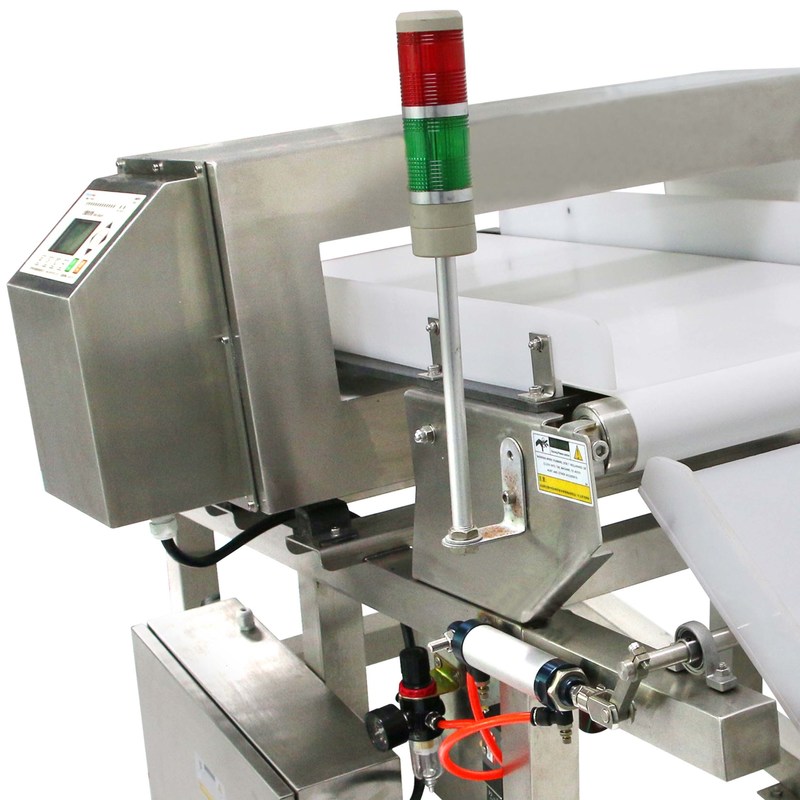

Touch screen intelligent Packaged and Bulk Food metal detector
Product advantages:
◆ A dual channel metal detection system exported from Germany. A rectangular hole (no point) coil.
◆ Control system: ADLINE micro processing controller.
◆ Conveyors: Joint-body PU (polyurethane) Conveyor.
◆ Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
◆ Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
◆ With memory and learning function, can store 100kinds of product testing parameters, detecting a wide range of materials.
◆ Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
◆ The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.
◆ Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.
◆ Flexible modular design can be customized according to different requirements.
◆ Mirror stainless steel with open transport system. Easy to clean .
◆ Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
◆ With superior shock interference.
Detail Specification
| Model | VDF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 300 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various | ||||||||
| Height from the earth | 650mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3. How about the packing for product? Is it easy damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box .
For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
Every prepackage have a plastic bags cover .
4. What's your main product?
We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
5. Where is your main sales market?
Our Gold meal detectors customer all over the world.
Our hand metal detector and walk through metal detector mainly in Southeast of Asia.
South of America.Middle east. East Europe and Africa
Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
6. How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
7. Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
Our Service
24 Hour after- sales service
12 months warranty
Professional technical guidance
Lifelong technical support
Our products are sold all over the world, you can rest assured.
