VFINDER introduce and big project
VFINDER is one of the leading manufacturers and exporters of ALL Types of Industrial Metal Detectors extensively used in Varied Manufacturing Industries including the Food, Pharmaceutical, Beverage, Dairy, Spices, Chemical, FMCG, Cement and Textiles Industries worldwide. Our Systems are suitable for All Dry, Wet, Frozen, Hot & High Moisture Content Products.

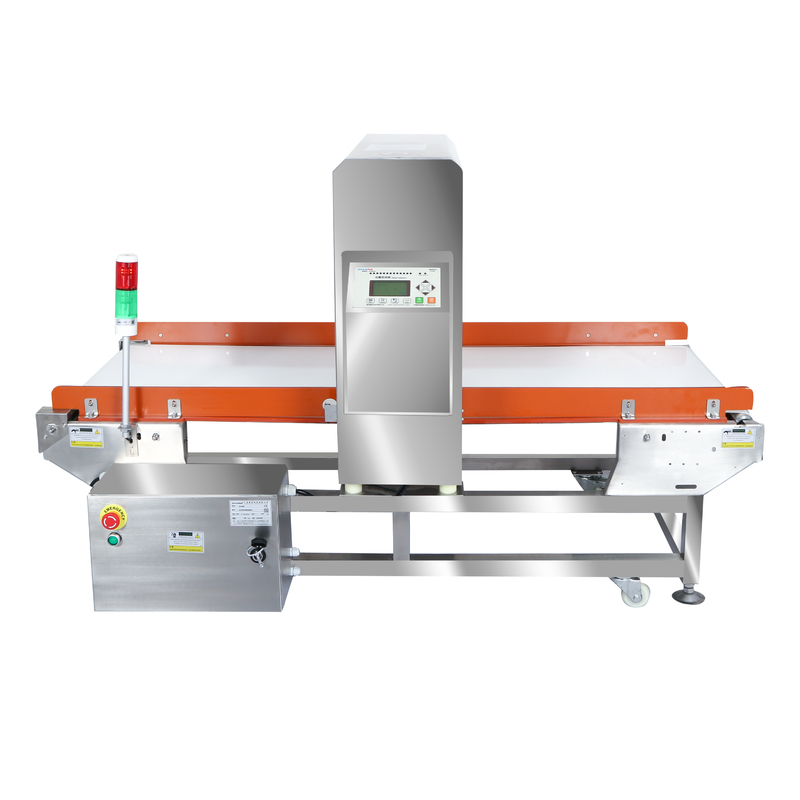

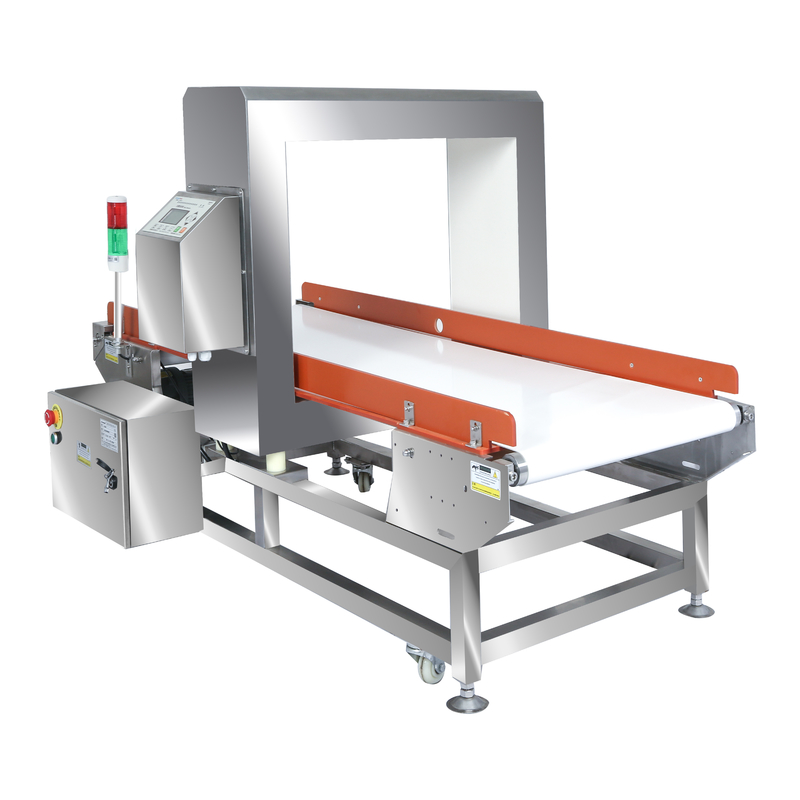

vfinderConveyor Metal Detectors (VCB Series) detect metal contaminants accidently present in any product on a Conveyor line and reject the faulty product. Our Metal Detectors detects all Ferrous and Non-Ferrous metals including Stainless Steel. An automatic Phase Angle function cancels out any variation in product effect caused by the product under inspection.
BENEFITS OF vfinderCONVEYOR METAL DETECTORS:
| Type | VB-3008 | VB3010 | VB4008 | VB4010 | |
| Controller type | Analog / Digital / Touch Screen | ||||
| Passing height ※1 | 100mm | 80mm | |||
| Sensitivity ※2 | Fe | φ0.4 | φ0.3 | ||
| SUS | φ0.8 | φ0.7 | |||
| Rejection method | Conveyor stop and buzzer (through optional configurations). | ||||
| Belt width | 300mm | 220mm | |||
| Detection unit | Opposing-type | Coaxial-type | Coaxial-type (SUS) | ||
| Conveyor frame | SS | SUS | SS | SUS | |
| Conveyance speed | 20m/min(50Hz)･24m/min(60Hz) | ||||
| Power source | AC100V±10％･50/60Hz | ||||
| Conveyor length ／ height of pass line |
800mm/750±50mm | ||||
| Weight | 220kg | 250kg | |||
MORE related models :
| Model | APPLICATION | |
| VFG-4012 | POUCH/BAGS /ncluding bakery items, meat and sausage products, fruits and vegetables, dairy products, and even spices and sugar. These metal detectors can find both ferrous metals (cast iron, mild steel, etc.) and non-ferrous metals (copper, lead, aluminum, etc.). | |
| VLP liquid metal detector | liquid .sauce | |
| VMS-2 | Any production line that need metal detector application | |
| VMD-8 |
capsule.tablet.chemical.granule. medicine pharmaceutical product .candy. |
|
| VMD-1 | Power.chemical.plastic .bulk food | |
| VFG-600S | aluminum package food | |
| VCM metal detector and check weigher | check weighter and metal detector intergrated together suitable for any kinds of food industry | |
| VCF moduclar chain conveyor food metal detector | Suitable for vegetable. furit ,frozen food and related wet foods | |
| VC-22 High accurate conveyor belt check weigher | Any package that need check the weights |
Accurate And Reliable Metal Detection
Precise Detection, Even At Maximum Throughput
Simple To Install And Use
Accommodates Quick Product Changes
Suitable For Packs Made From Non-Metal Materials And Metal Materials Too (Aluminum Foil)
Easy To Clean And Maintain
FEATURES :
Detecting Theory : Balance Coil / Electromagnetic Induction
Aperture/Tunnel Size Options : 150~1500mm (W) x 100~600mm (H)
Conveyor Belt Size Options : 80~1450mm (W) x 500~2000mm (L)
MOC Options : SS 316, SS 304, MS Powder Coated or Aluminium; Non-metallic Parts made from Polypropylene (Food Grade)
Rejection Options : Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap
FAQ:
. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about the packing for product? Is it easy damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box .
For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
Every prepackage have a plastic bags cover .
4. What’s your main product?
We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
5.Where is your main sales market?
Our Gold meal detectors customer all over the world.
Our hand metal detector and walk through metal detector mainly in Southeast of Asia.
South of America.Middle east. East Europe and Africa
Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
6.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
7.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
8. What is your usually payment term :
We accept LC, TT .western union .Money Gram .Paypal. trade assurance etc payment.
Our products are sold all over the world, you can rest assured.
