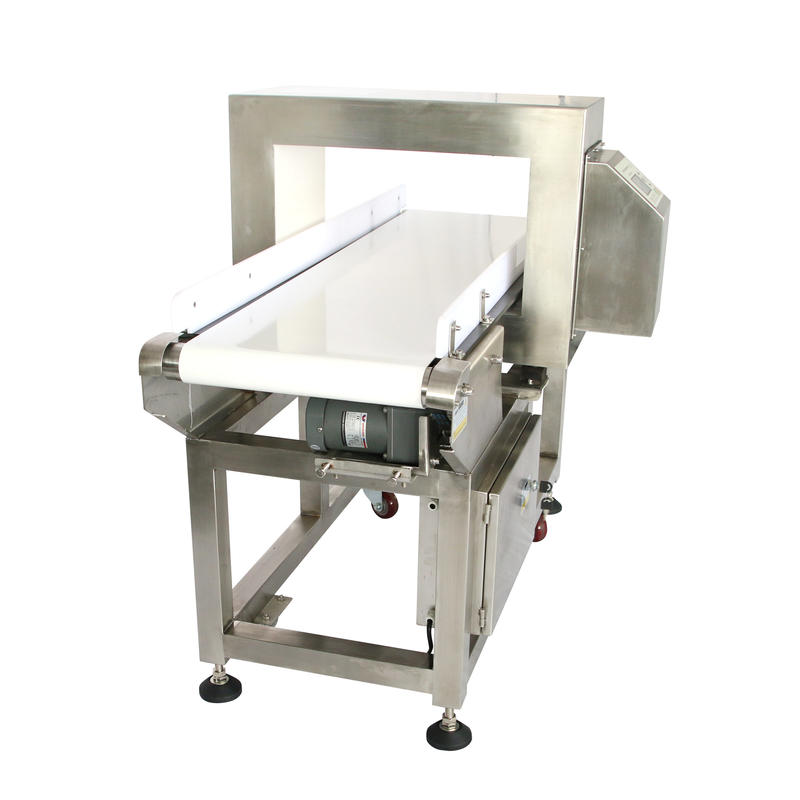

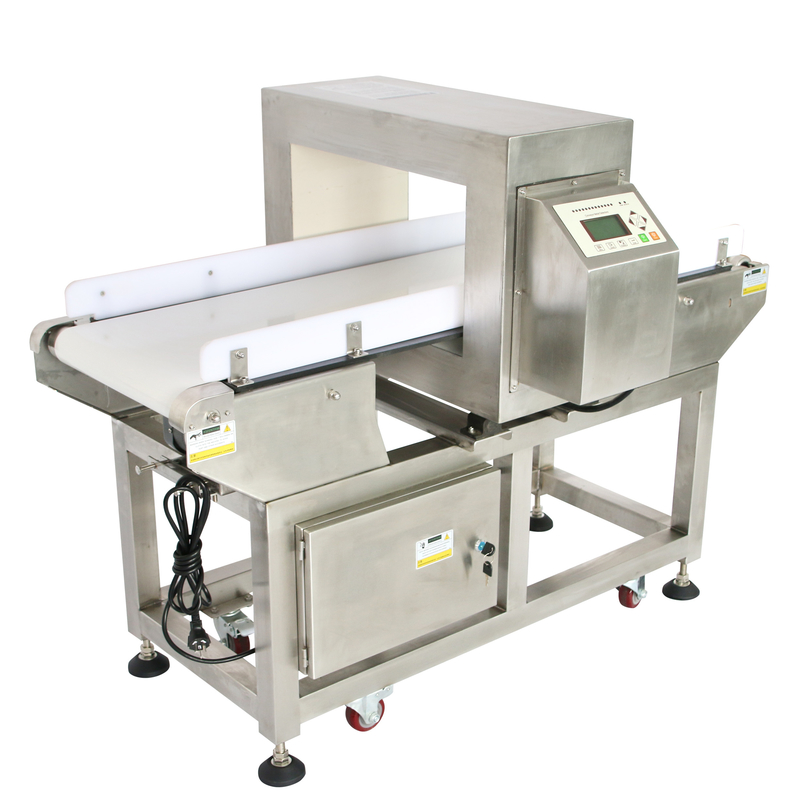

Auto Conveying Industrial Metal Detector for Broken Needle Ferrous Metals
QUICK TO KNOW
You could customize a tunnel size that could meet your needs:
|
Model
|
VDF series
|
||||||||
|
Machine specification
|
Normal machine
|
Customized width
|
|||||||
|
(mm)
Detection Width
|
400
|
300 customized
|
|||||||
|
(mm)
Detection Height
|
100
|
120
|
150
|
200
|
250
|
300
|
350
|
400
|
|
|
Detection
Sensitivity
|
Fe(Φmm)
|
≥0.6
|
≥0.8
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
|
Non-Fe(Φmm)
|
≥1.0
|
≥1.2
|
≥1.5
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
304Sus(Φmm)
|
≥1.2
|
≥1.5
|
≥2.0
|
≥2.5
|
≥3.0
|
≥3.5
|
≥4.0
|
≥4.5
|
|
|
Alarm and rejector system
|
Automatic stop by alarm and sound or push rod or falling drop
|
||||||||
|
Machine structure
|
Full structure takes of stainless 304
|
||||||||
|
Machine size (mm)
|
L1520mm×W830mm×H1100mm
if customized it will according to customized size
|
||||||||
|
Machine weight
|
Around 250KG if customized the weight will different
|
||||||||
|
Voltage and power
|
220V 50Hz 90W
|
||||||||
|
Load ability
|
5-25KG
conveyor belt running speed:25-30m/min or customized various
|
||||||||
|
Height from the earth
|
650mm±50mm can customized
|
||||||||
|
Note :Normal size machine have stocks. Unnormal size machine have to customized
|
|||||||||
Application:
|
Key reason to have a metal detector helping you run your business:
|
|
Within the food production industry, there is perhaps no bigger contaminant material than metal. Due to its abundant use in all stages of food processing, the material is often found in the raw foodstuffs. It is essential that this is located and move before the packaging stage to guarantee the safety of consumers and the legitimacy of your company.
|
|
Metal detectors catering specifically to the food industry should be a compulsory piece of equipment for any area of food production, including baked goods, fruit and vegetables, dairy, fish, meat, cereals, beverages and more. With the vegetable processing industry for example, the sheer range of products catering to a variety of vegetables means that here is always a risk of contamination from metal, through broken equipment or delivery.
|
|
There is also the risk of sabotage within food production, especially as a large percentage of product is imported overseas where rules and regulations are not necessarily as strict as within the United Kingdom. By having a metal detector, the risk of sabotaged food product reaching the consumer is greatly reduced.
|
FAQ:
Our products are sold all over the world, you can rest assured.
