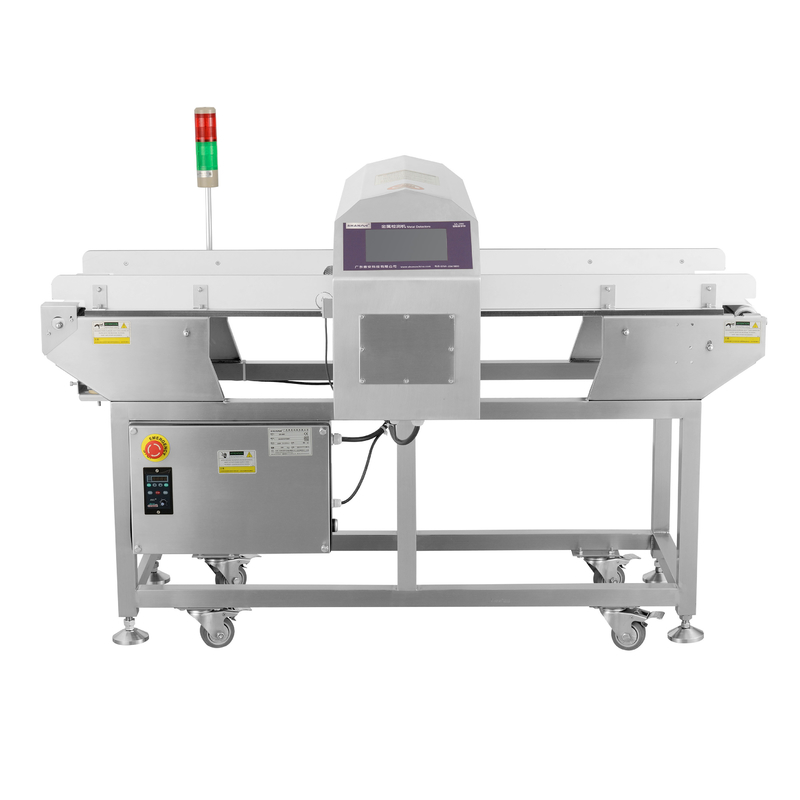

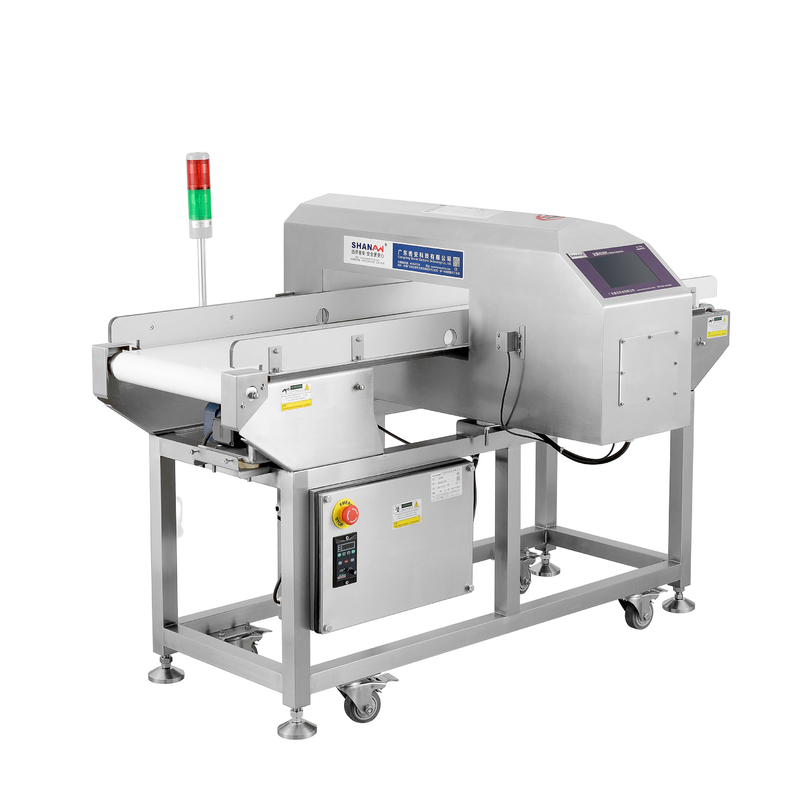

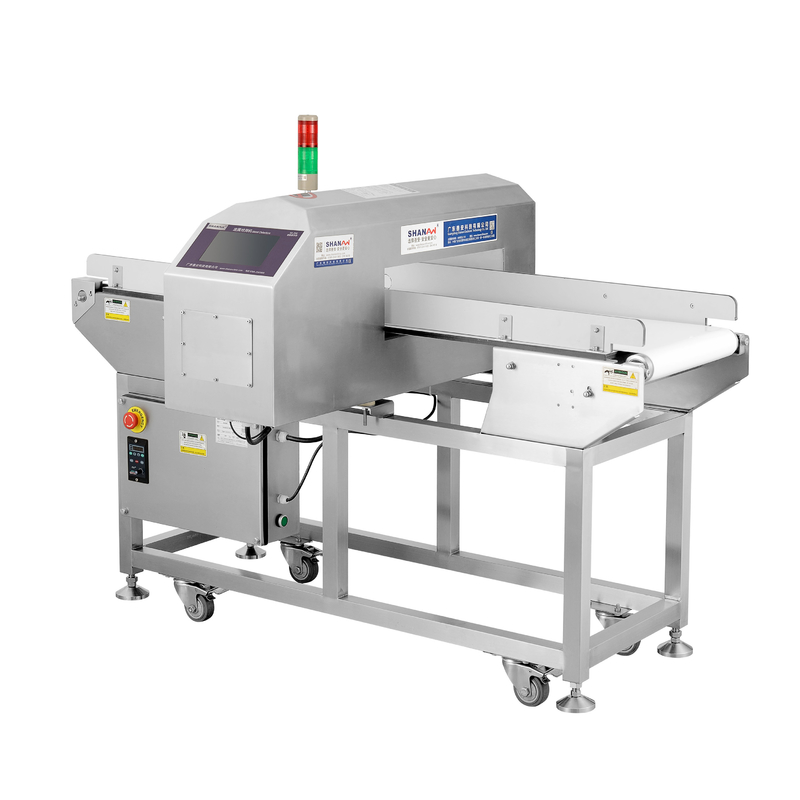

Food Security Detection Conveyor Belt Metal Detector Machine
QUICK TO KNOW
You could customize a tunnel size that could meet your needs:
| Detection width : | 30-80 cm, Customized |
| Detection height: | 8-50cm Customized |
| Detection sensitivity: | See below table |
| Alarm mode: | The buzzer alarm, the motor automatically stop |
| Transfer speed: | 25 meter / min or you can select adjust speed |
| Power: | 100-265VAC, 50-60Hz (According to customer request) |
| Size: | (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) |
| Reject system | Option |
| Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
| Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Length(mm) | 1350 | ||||||
|
Detecting sensitivity(mm) |
Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
| SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 | |
| N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 | |
| Speed of belt |
25-38M/min (Fixed speed) ; |
||||||
| Load ability | 20KG | ||||||
| Count function | 100 | ||||||
| Warning method | Atomatically with sound and light alarm | ||||||
| Reject Ways | Push rod or customized | ||||||
| Application | Fe, Non- Fe, Stainless steel inspection | ||||||
| Work Environment | Temperature -10℃-40℃ ,relative humility 20-95% | ||||||
Application:
Metal detectors are mainly used for the detection and inspection of metal impurities in food.
Widely used in meat, frozen meat, fungi, candy, mushrooms, seafood, salt, beverages, food,
fruits and vegetables, dairy products, aquatic products, health products, additives and condiments.
Can also detect rubber, plastic, textiles, leather, chemical fiber, toys, medicine, health products,
biological products, cosmetics, gifts, packaging, paper products, etc.
The considerations on purchasing a metal detector:
|
Determine the types of metal that need to be tested. There are two main types of metals: ferrous and non-ferrous. The ferrous metal comes from iron. Non-ferrous metals are all others. Carefully inventory the types of metals that may eventually appear in your product. |
|
What size of metal contaminants do you need to filter? For this problem, you need to be pragmatic and realistic, because if you specify too much sensitivity, you will get too many false alarms and vice versa. |
|
Understand the operating environment and product characteristics - The operating environment includes temperature and whether water, dust or chemicals may come into contact with metal detectors and possible electric fields. In addition, is the product fresh or frozen, and the package is still exposed, scanned separately or in a box? All of these factors will be used to design the metal detector that best meets your needs. |
|
Reject System Considerations - The most common way is to use a propeller or blower to transport metal detection products. However, you can save space by stopping the conveyor and starting the warning light. Further more, an optional lockable collection container prevents unauthorized employees from accessing rejected products.
|
FAQ:
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to
do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working
days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel
and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy,
Germany,European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,
Iran, Brazil...and so on
Our products are sold all over the world, you can rest assured.
