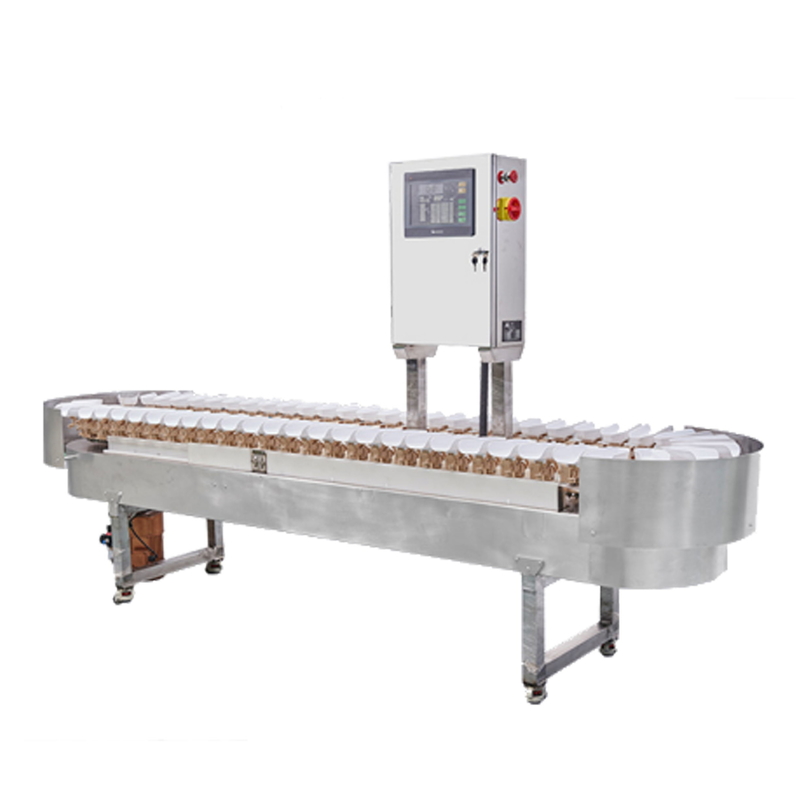

304 Stainless Steel Online High Speed Weight Multi-grade Sorting Check Weigher machine for fish slices
Technical details:
| Name | Weight sorting machine |
| Model | VS-6g |
| Menu language | English(Other languages optional) |
| Product quantity restored | 250 kinds of product restored in menu |
| Max weighing | 1kg/3kg |
| Increment | 0.1g |
| Accuracy(Зσ) | +-0.5-+-1.0g(depends on product) |
| Weighing speed | 120 pcs/min(as per request) |
| Segments of sorting | Conveyor,weigher and 6 sorters |
| In feed conveyor size | Length 400mm Width 200mm |
| Weigher platform size | Length 400mm Width 200mm |
| Out feed conveyor pusher | Length 2400mm Width 200mm |
| Height from floor to conveyor belt | 750+-50mm |
| Sorting ranges | 6 kinds of weight sorting |
| Sorting system | Automatic pusher sorter(other sorters optional) |
| Ingress rating | IP65/IP66 |
| Frame material | SUS 304(industrial grade) |
| Display type | 10 inches touch screen |
| Data exchange and export | USB, RS232,Ethernet port(other optional) |
| HS code | 842320 |
Applied industries:
Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.
Product function:
Sorting different weight range online conveying products to different groups in accordance with preset weight range .
Features:
1. New designed IP66 ingress rating ensure machine proper workint at bad care environment
2. Various fast sorting systems to classify products in different weight ranges
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Standard multiple weight sorting areas ensure higher production efficiency and lower labor cost
Note
1. The technical parameter above namely is the result of accuracy by checking only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
2. The detecting speed above will be affected according to the product size to be checked.
3. Requirements for different sizes by customers can be fulfilled.
