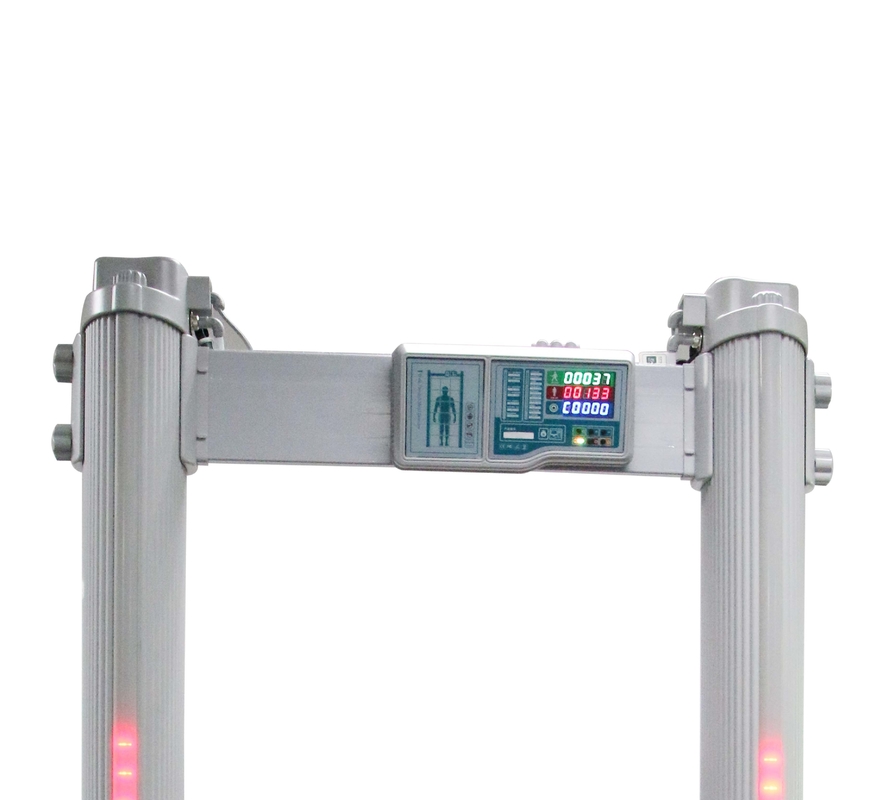

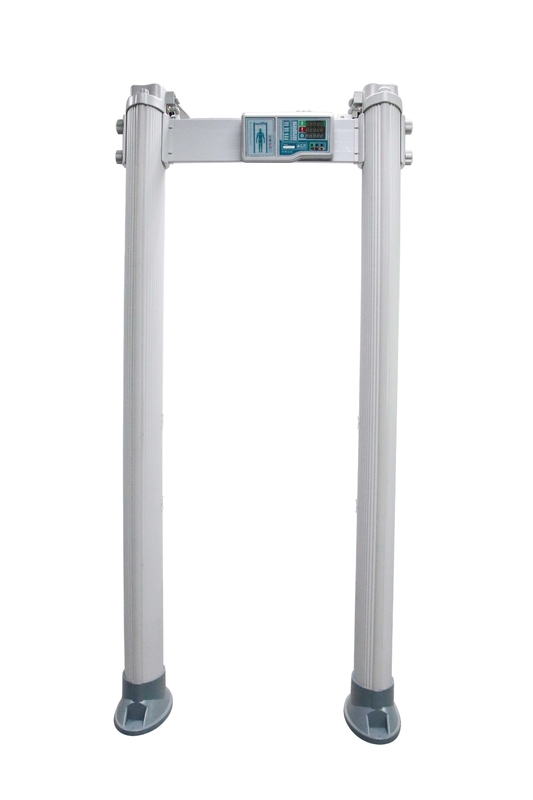

100 Levels Pass Through Metal Detector Security Doors With Adjustable Detecting Zones
Key features:
- Pinpoint Zone Detection:24 zones shows precise target locations on the left, center and right side of the body from head to toe
- High technology attractive 7-inch HDMI LCD touch screen Design
- Optional Mobile connection technology: realize mobile APP remote control(optional).
- Automatic recording number of people passed, alarming times and strength of interference on the large LCD.
- Self calibration when turn on .
- Self diagnostic, it will inform the user when exit the system.
- Each menu Protection with password: The protection from the password can only allow the authorized person for the operations. It is highly safe
- Professional detection process:built in 60 different detection occasions(providing upgrade services).
- Security level:100 security levels.
- Detection sensitivity of each zone: From 0 to 355 level.
- Intelligent Standby: The system has intelligent standby operation alerts.
- Working Standby:16 high-brightness LED indicator on.
- Detection speed: more than 60 people pass and detect in 1 minute.
- High capability of anti-interference: The adoption of digital, analogy and left and right balanced technology can prevent false or omitted alarming, which greatly enhance the capability of anti-interference.
Standard features:
- Easy installation .Easy bring
- Traffic Lights indicate :on the entrance of the archway ,there traffic light to remind you the detector is ready for passenger.
- Elegant column design .Easy move. Attractive appearance
Bonus Features:
- Multi-alarm sounds to choose-to fit different applications.
- High waterproof standard :Can use in room or outdoor easily IP Grade: IP67 superior waterproof performance.
- Query function: The system has real-time information query function.
Specification:
| Model |
VMP-8000 Plus |
| External dimensions |
2240×670x850mm |
| Vertical channel size |
2000x700mm |
| Packing size |
2440x650x730mm |
| NW |
65KG |
| GW |
70KG |
| Working voltage |
AC90V~240V 50/60Hz |
| Power |
12W |
| Working frequency |
1-100 |
| Working environment |
-20℃~65℃ |
| Installation environment |
(W) 100cm* (L) 200cm
(no metal in this range)
|
| Highest standard |
Metal size≥6g |
| Backup power |
Optional |
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
