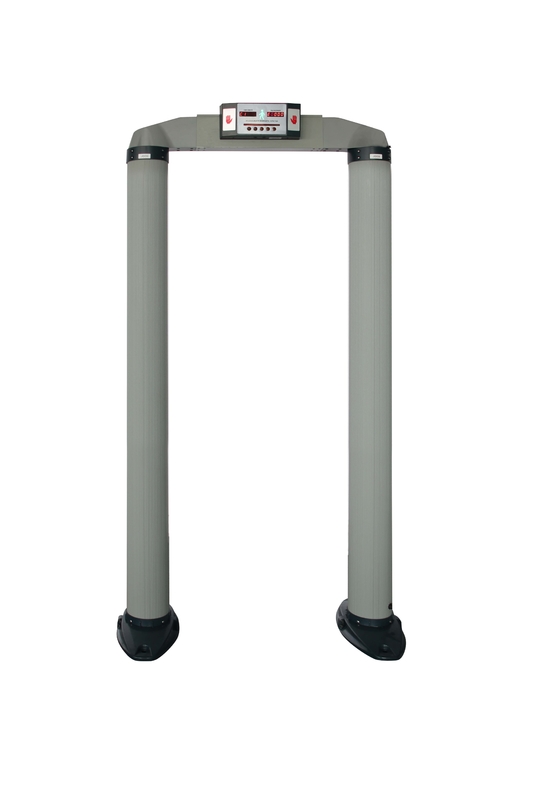

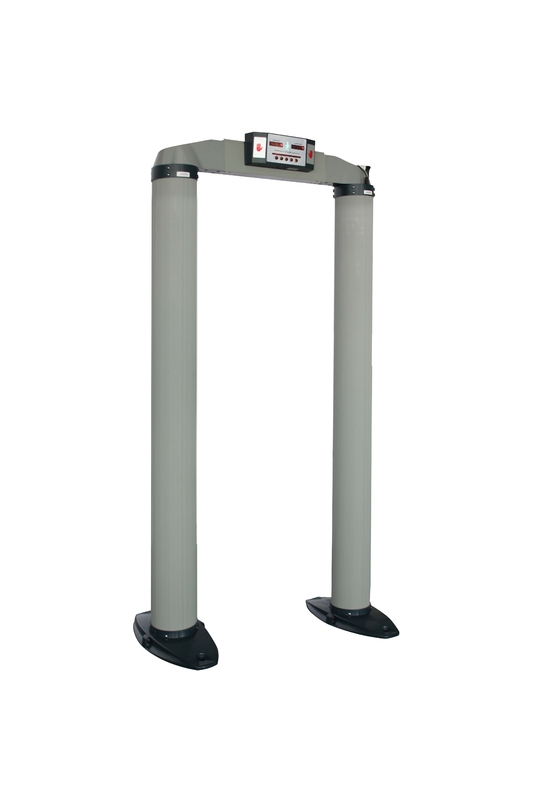

Enhanced Walk Through Metal Detector Security Gate , Wtmd Airport Body Scanners

Enhanced Walk Through Metal Detector Security Gate , Wtmd Airport Body Scanners

Features and Functions:

• Different alarm tunes for choose
• Adjustable sensitivity of each detection zone
• Operating frequency can be adjusted manually or automatically
• Overall Detection technology: Overall detection technology,no blind spot
• Optional remote control system
• Working band: 50 working bands
• Sensitivity of each detection zone:400 level
• Security level: 100 level

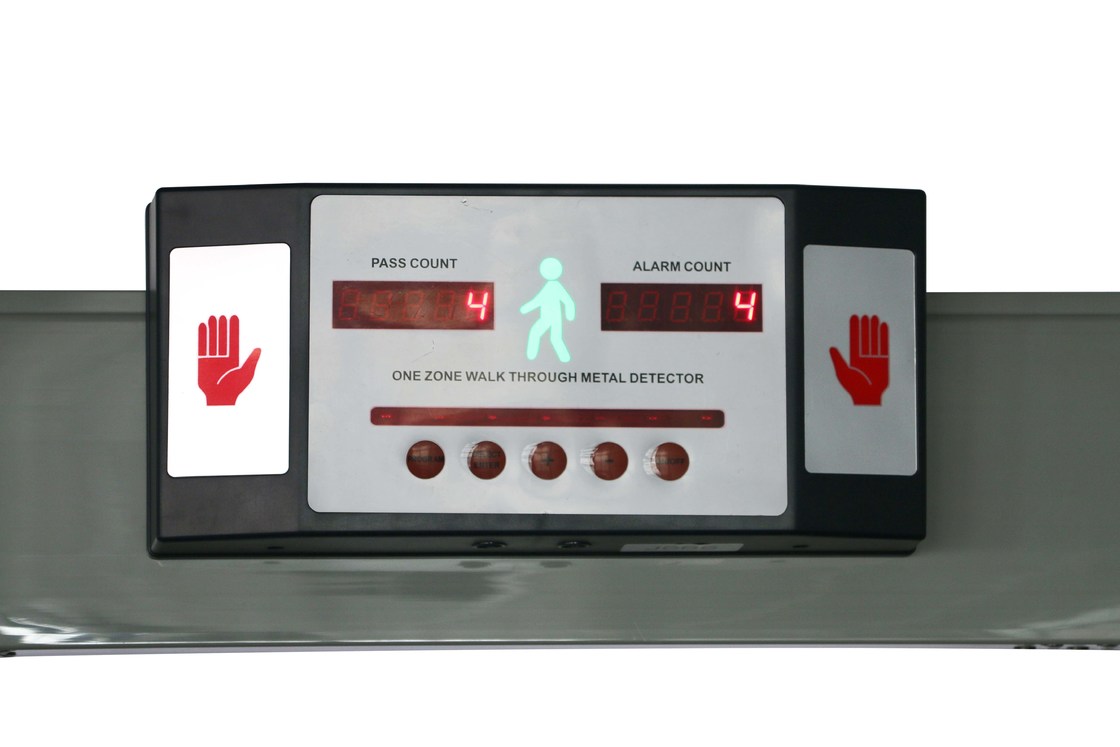

• Statistics: Record the pass and alarm numbers
• Query function: The system has real-time information query function
• Intelligent Standby: The system has intelligent standby operation alerts
• Detection speed: more than 60 people pass and detect in 1 minute

Advantages:

• Intelligent integrated adjustment : Can adjust detection zones according to different application
• Each model have the basic convert 6 zones to 12 zones or 18 zones(optional)
• Column shape design .Easy move and install
• Optional Can connect PC terminal that change specification of WTMD
• anytime,anywhere(optional)
• Quick setting for 72 application occasions in the program,user can according to different occasion to setting
• Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON

Technical parameters:

• Vertical dimension:2230x580x830mm
• Vertical channel size:2000*700mm
• Detection door packing size:2290x600x200mm
• Main box packing size:755x210x340mm
• Net weight of main box/detection door:56.6KG
• Gross weight of main box/detection door:62.8KG
• Working voltage:90V~240V 50/60Hz
• Power consumption:20W
• Working frequency range:1-50 bands
• Working environment temperature:-20℃ ~ 65℃
• Installation environment :(W) 100cm* (L) 200cm(minimum range without metal)
• Be detected in a zone:Maximum sensitivity ≥ 10g metal

 Specification:

Company information:

we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
