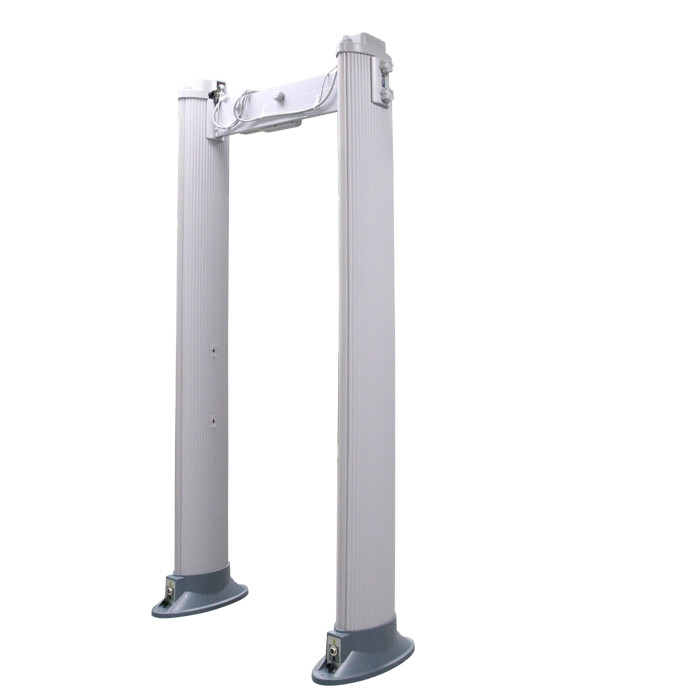

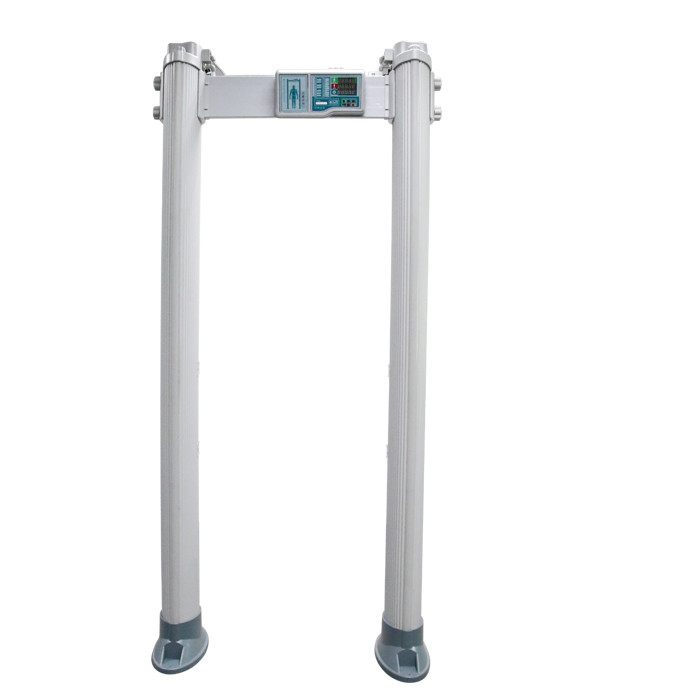

Column shape 33 zone Digital touch screen walk through metal detector gate
★. Elegant column design .Easy move. Attractive appearance
★ Pinpoint Zone Detection:24 zones shows precise target locations on the left, center and right side of the body from head to toe

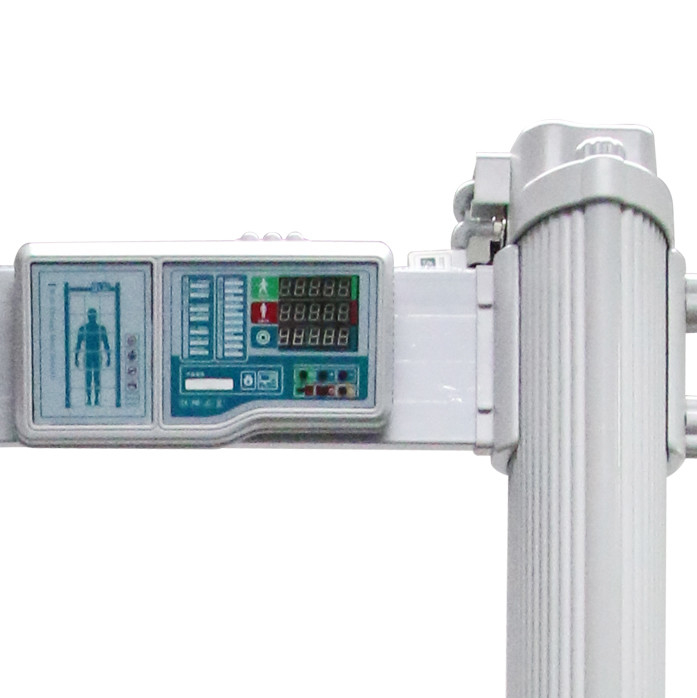

★ High technology attractive 7-inch HDMI LCD touch screen Design
★ Optional Mobile connection technology: realize mobile APP remote control(optional).
★ Automatic recording number of people passed, alarming times and strength of interference on the large LCD.
★ High waterproof standard :Can use in room or outdoor easily IP Grade: IP67 superior waterproof performance.
★ Self calibration when turn on .
★ Self diagnostic, it will inform the user when exit the system.
★ Traffic Lights indicate :on the entrance of the archway ,there traffic light to remind you the detector is ready for passenger.
★ Each menu Protection with password: The protection from the password can only allow the authorized person for the operations. It is highly safe
★ Professional detection process:built in 60 different detection occasions(providing upgrade services).
★ Working frequency: 100 working frequency.
★ Security level:100 security levels.
★ Detection sensitivity of each zone: From 0 to 355 level.
★. Multi-alarm sounds to choose-to fit different applications.
★. Query function: The system has real-time information query function.
★. Intelligent Standby: The system has intelligent standby operation alerts.
★ Working Standby:16 high-brightness LED indicator on.
★ Detection speed: more than 60 people pass and detect in 1 minute.
★ High capability of anti-interference: The adoption of digital, analogy and left and right balanced technology can prevent false or omitted alarming, which greatly enhance the capability of anti-interference.
★ Easy installation .Easy bring
|
Vfinder is a manufacturing company specialized in the design, engineering and production of Metal Detectors .check weigher .needle detector and Electromagnetic Inspection Devices.we offering solution for food industry ,Pharmaceutical industry , Textile garment industry ,Rubber industry .Tory industry where the factory need help to control their quality for find broken needles and metals . Under our solution and machine support our valued customer can accreditation with the FDA ,ISF ,HACCP even FCCA request and requirement . Meanwhile we strongly support the all the world public security career.with our support by our product of walk through metal detector and x ray baggage scanner . So many public can be safety , so many dangerous products can been keep away from public people .
|
| Model | VMP-8000 Plus |
| External dimensions | 2240×670x850mm |
| Vertical channel size | 2000x700mm |
| Packing size | 2440x650x730mm |
| NW | 65KG |
| GW | 70KG |
| Working voltage | AC90V~240V 50/60Hz |
| Power | 12W |
| Working frequency | 1-100 |
| Working environment | -20℃~65℃ |
| Installation environment |
(W) 100cm* (L) 200cm (no metal in this range) |
| Highest standard | Metal size≥6g |
| Backup power | Optional |
Our products are sold all over the world, you can rest assured.
