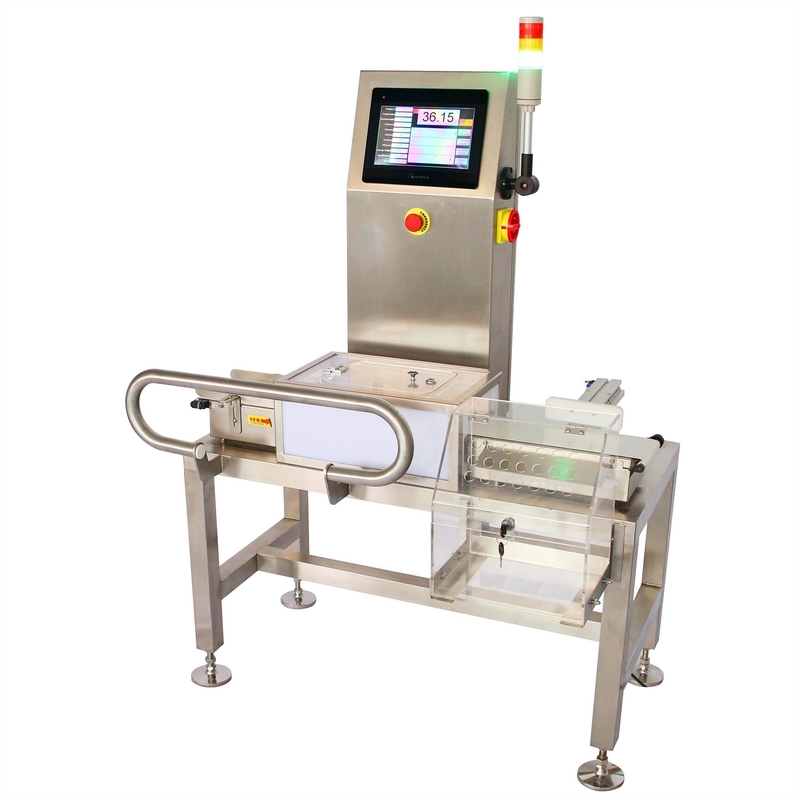

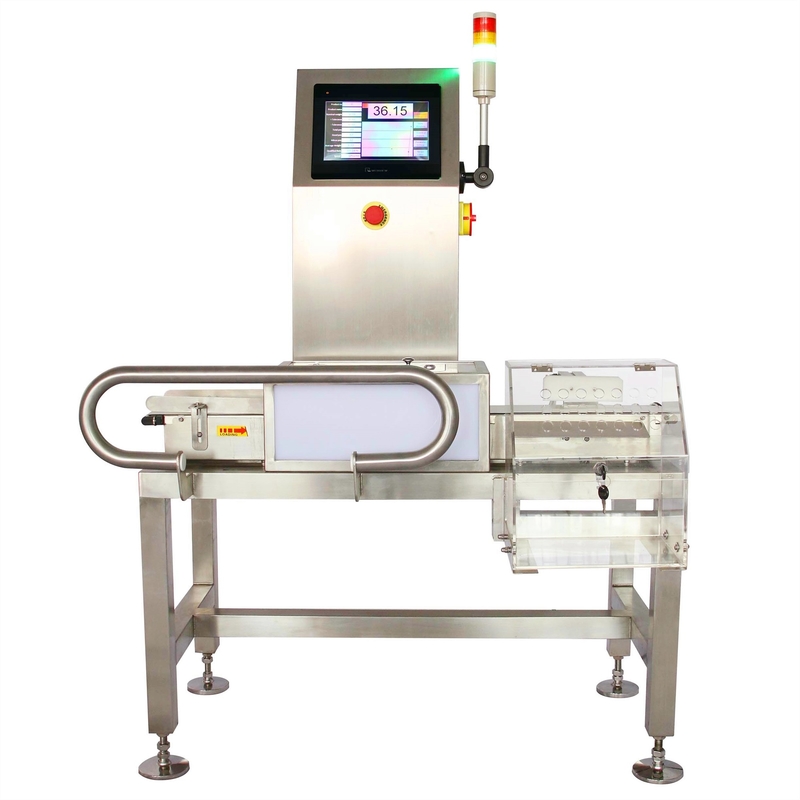

What is a checkweigher scale and Why Use a Belt conveyor Checkweigher?
Checkweighers prevent the under filling and overfilling of product, resulting in brand protection and cost reduction due to less product giveaway. Other advantages include simple and intuitive operation of the machines leading to short familiarization periods and trouble-free usage.
Application: It can be widely used in food, pharmaceutical, daily chemical, chemical, battery, hardware accessories, electronics, plastic and other industries.
Advantage:
•Entire machine in stainless steel housing with infeed, weighing, and outfeed belts
•Sorting device by means of blowing nozzle or mechanical pusher
•Maintenance free servo drives
•Memory of 2000 product parameters
•Easy , tool free exchange of conveyors
•Flexible integration in production lines
Tech Parameter
| Model |
SA-210 |
| power supply |
AC220V±10% 50HZ(60HZ) |
| rated power |
0.15KW |
| Single weighing range |
≤1000g |
| Weighing accuracy range |
±0.3g~±1g |
| Minimum scale |
0.1g |
| transfer speed |
30～100m/min |
| Maximum speed |
160 pcs/min |
| Weighing material size |
≤280mm(L)*200mm(W) |
| Weighing conveyor belt size |
400mm(L)*210mm(W) |
| Product Size |
1500mm(L)*560mm(W)*1222mm(H) |
| Elimination method |
Pusher / single side swing / flap |
| Control System |
High speed A/D sampling controller |
| Preset product number |
2000pc |
| Operation direction |
Facing the machine, left to right |
| External air supply |
0.6-1Mpa |
| Barometric interface |
Φ8mm |
| working environment |
Temperature: 0℃～40℃,Humidity:30%～95% |
| Body material |
SUS304 |
|
Product model
|
SACW-210
|
Transfer speed
|
30~100m/min
|
|
Power supply
|
AC220V土10% 50HZ (60HZ)
|
Maximum speed
|
160 pcs/min
|
|
Rated power
|
0.15KW
|
Weighing conveyorbelt size
|
400mm(L)“210mm (W)
|
|
Single weighing range
|
1.5-200g
|
Elimination method
|
Blow-out
|
|
Weighing accuracy range
|
土0.02g~土1g
|
Control System
|
High speed A/Dsampling controller
|
|
Minimum scale
|
0.01g
|
Preset product number
|
2000pcs
|
|
Inspection item size
|
≤2800mm(L)*200mm (W)
|
|
size Machine
|
2100mm (L)*560mm(W)*1222mm (H)
|
|
Operation direction
|
Facing the machine, left to right
|
|
External air supply
|
0.6-1Mpa
|
|
Air pressure interface
|
Φ8mm
|
|
Workingenvironment
|
Temperature:0C~40C,Humidity:30%~95%
|
|
Body material
|
Stainless steel 304 polished
|
|
Operationscreen display
|
Chinese, English, Turkish, Spanish, etc.
|
|
Other standardequipment
|
Windshield (colorless and transparent), calibration weight
|
|
Height of beltsurface from ground
|
650mm~~750mm(can be customized)
|
|
Protection level
|
Protection level conforms to IP-65 international standard
|
|
Remarks
|
According to the different dimensions of the tested product andthe working environment in which the equipment is running, the
accuracyof the speedometer is slightly different
|
