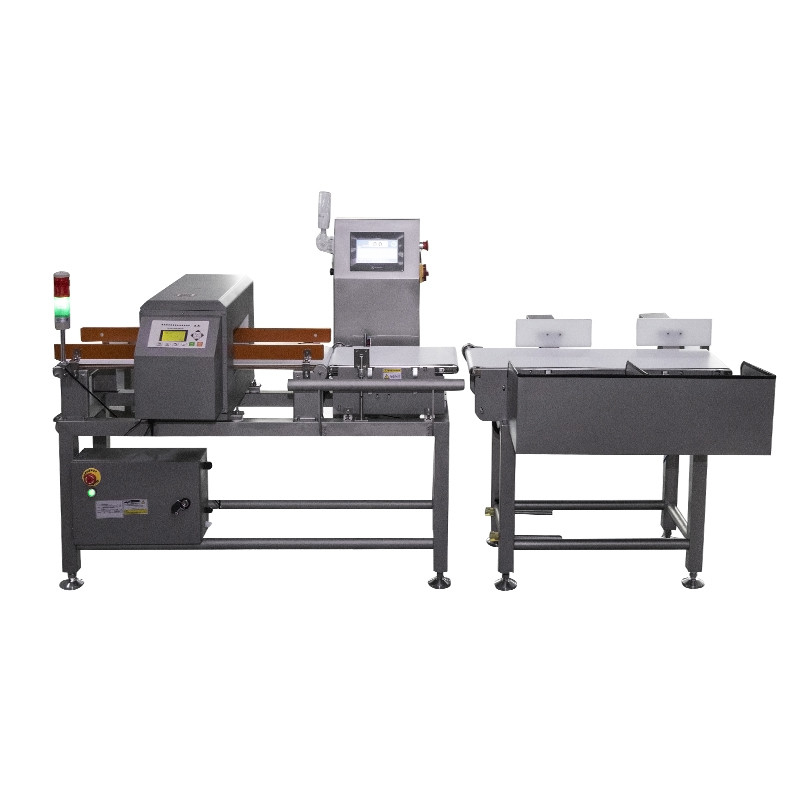

A Solution to reduce the space requirement of the production line to minimum through integrating the metal detector and checkweigher on a cantilever frame.
(1) To save production space
(2) Professional design, simple structure, convenient installation and cleaning.
Technical Parameter:
| Specifications | VCM-3 | |
| Detecting Range | 10g~2000g | |
| Detecting Accuracy | ±0.4~0.5g | |
| Detecting Speed | 80~120pieces/min | |
| Segments number of sorting | 3 | |
| Product Size to be Detected | Width | 20~220mm |
| Length | 35~200mm | |
| Height | 5~160mm | |
| Pressure Requirements | 0.5Mpa | |
| Rejecter | Rejecter Optional | |
| Power Supply | AC220V(Optional) | |
| Main Material | SUS304 | |
Our products are sold all over the world, you can rest assured.
