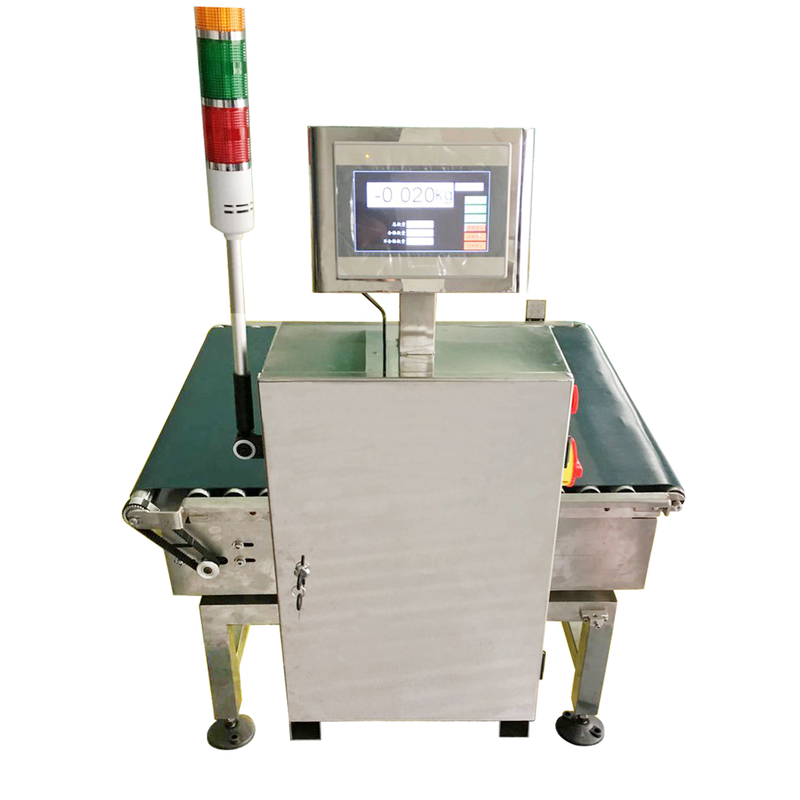

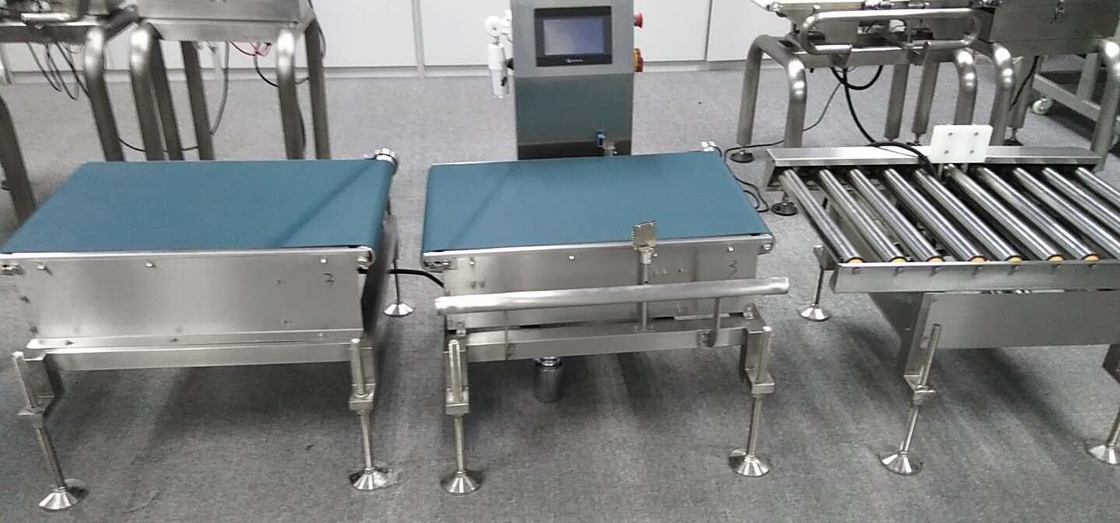

Overload Automatic check weigher weighing scales / conveyor weight inspection machine
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Features of weighing scales:
1. Precison accuracy
Put to use high speed weighting module of importation and weight sensor in order to ensure checking accuracy
2. Simple structure
Full stainless steel manufacture, simply structure, easy maintain & maintenrance, according with GMP & HACCP standard.
3. Covenient operation
Adopting Schneider touch screen, operating simply, displaying intuitively, supporting multi-language (acquiesce in Chinese & English ).
4. Extenal connecting conveniently
Can be connected with other equipment in production line,such as printer, labeller & inkjet printer and so on (client customization).
5. Wide application
Application for bag, filling pack weight checking, there are various rejection way to select (pulling, blowing,pushing jar type and so on ).
6. Function of utomatic feedback
Providing the signal to frontend, feedback packing accuracy in time in order to adjust the feeding status of connected equipment.
| Parts Name | Specification /Brand | Unit | Use amount |
| Control system | Vfinder control system ,8 inch industrial touch screen | pcs | 1 |
| Weight sensor | Germany HBM | Pcs | 1 |
| Driving system | Delta | Pcs | 1 |
| Inverter | Delta | Pcs | 1 |
| photoelectric switch | Taiwan Riko | Pcs | 1 |
| Motor Switch | CHNT | Pcs | 1 |
| Conveyor belt | White Shabaker | Pcs | 1 |
| Main conveyor belt roller | NSK Bearing , | Pcs | 1 |
| Accessory conveyer belt |
NSK Bearing | Pcs | 1 |
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color LCD Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)
| VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 | |
| Model Name | |||||||
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) | |||||||
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) | ||||||
| Optional | |||||||
Our products are sold all over the world, you can rest assured.
