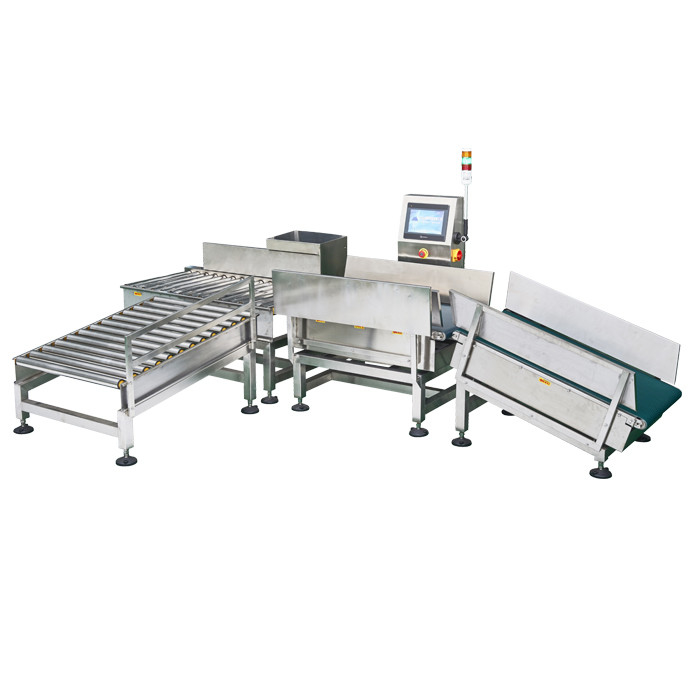

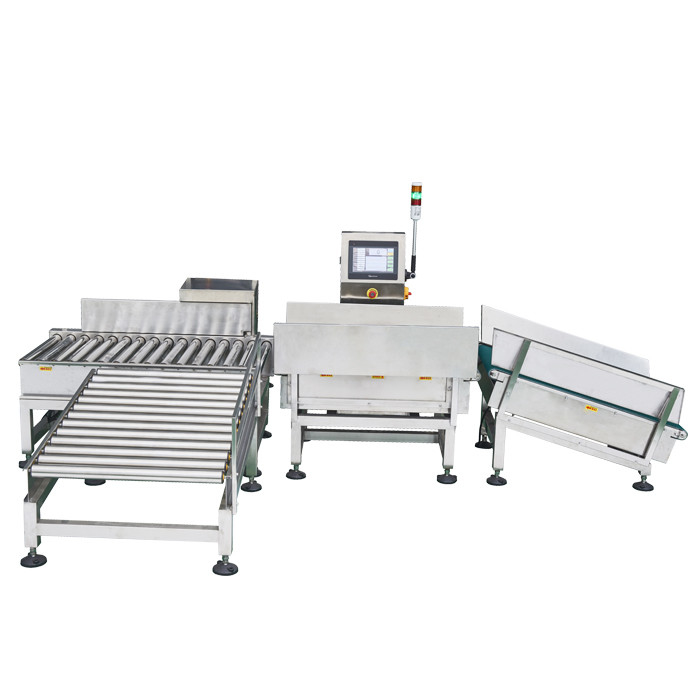

Large-scale Belt Conveyor Check Weigher Up To 50 kgs , Food Grade PVC CheckWeigher
Application: The checkweigher is suitable for testing the weight of a small single item whether is qualified or not, for example, pharmaceutical and health care products industry uses the checkweigher to test whether the tablets is more or less than the specified quantities, whether the powder packaged drug is more or less than the standard bags, whether the weight of liquid products meets the standard requirements; or the omission of drug attachments (such as instructions, desiccant, etc.).
Main functions:
1. Report function: built-in report statistics; the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year statistical data (need to be equipped), at any time hold grip production status;
2. Interface: reserved standard interface, convenient for data management, can connect communication network with PC and other intelligent devices;
3. Achieve centralized control: can achieve centralized control of a computer / man-machine interface operates many check weighers;
4. Parameter recovery function: possessing the factory parameter setting recovery function.
5. Versatility: Standardized machine structure and standardized man-machine interface can complete the weighing of various materials;
6. Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;
7. Simple operation: the use of Weilen color man-machine interface, the whole intelligent, user-friendly design;
8. Easy to maintain: The conveyor belt is easy to disassemble, easy to install, maintain and clean;
9. Adjustable speed: adopt variable frequency control motor, speed can be adjusted according to needs;
10. High-speed, high-precision: adopt the high-precision digital sensors;
11. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
|
Parameter Model |
Large-scale Check weigher |
| JZ9050 | |
| Power | 0.4 KW |
| Power supply | AC220V±10% 50HZ(60HZ |
| Weight range | ≤50kg |
| Weighing accuracy range | ±5g~±30g |
| Mini screen value | 1g |
| Belt speed ( meter/min ) | 20～35m/min |
| Max speed | 30 pcs/min |
| Suitable product dimensions | ≤650mm(L)*490mm(W) |
| Weight zone size | 900mm(L)*490mm(W) |
| Size |
1888mm(L)*935mm(W) *1060mm(H) |
| Reject system | Push rod |
| Parameter storage | 2000 |
| Frame materials | SUS 304/ 316 |
12 Months Guarantee
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
Our products are sold all over the world, you can rest assured.
