High Precision Conveyor Weight Checker For Food Industry 220v 50HZ Energy Saving

High Precision Conveyor Weight Checker For Food Industry 220v 50HZ Energy Saving

  • Highlight

    dynamic checkweigher

    ,

    checkweigher machine

  • Maetrial
    304 / 316 Stainless Steel
  • Weight Range
    1~500 G
  • Accuracy
    ±1g
  • Speed
    110 M /min
  • Height From Ground To The Belt
    700 Mm + 50 Mm
  • Voltage
    110 V / 220 V, 50 HZ / 60 HZ
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    JZ2512
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

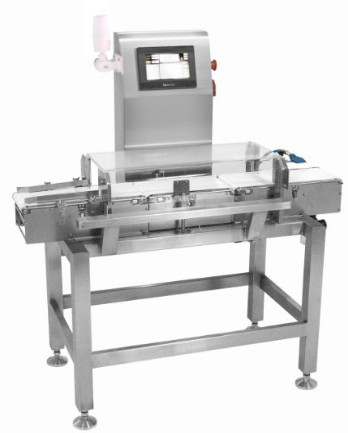

High Precision Conveyor Weight Checker For Food Industry 220v 50HZ Energy Saving

High Speed And High Precision Check Weigher For Food Industrial 220v , 50 HZ



Application:

This product is suitable for testing the weight of individual products. It is widely used in many industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products. Such as small bags of drug granules, high-precision materials.



Feature:

  • Operating mode:  three operating modes
  1. Dynamic mode: Normal assembly line type
  2. Static mode: After the material enters the weighing platform, the weighing platform stops running, and the weighing is performed to improve the accuracy. It is suitable for products with less than 20 passes per minute.
  3. Energy saving mode: On the basis of a and b modes, the energy-saving mode can be turned on, and can be set to pass the shutdown time. When the equipment is without product passes, it will automatically stop after the long time, and then automatically start when there is material passing.



  • Communication function
  1. Interface function: Reserved standard interface, easy to manage data, can connected with PC and other smart devices
  2. Peripheral communication:Equipped with standard RS-485 and RS-232 dual communication port output.
  3. Report function:Built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year of statistical data, support the production status at any time; provide factory parameter setting recovery function, and can store a variety of recipes, replace Product specifications are convenient;
  4. Parameter

    Model

    High speed and high precision

    Check weigher

      JZ2512
    Power supply AC220V±10% 50HZ(60HZ
    Weight range ≤200g
    Weighing accuracy range ±0.05g~±0.1g
    Mini screen value 0.01g
    Belt speed ( meter/min ) 20~60m/min
    Max speed 180 pcs/min
    Suitable product dimensions ≤100mm(L)*100mm(W)
    Weight zone size 250mm(L)*120mm(W)

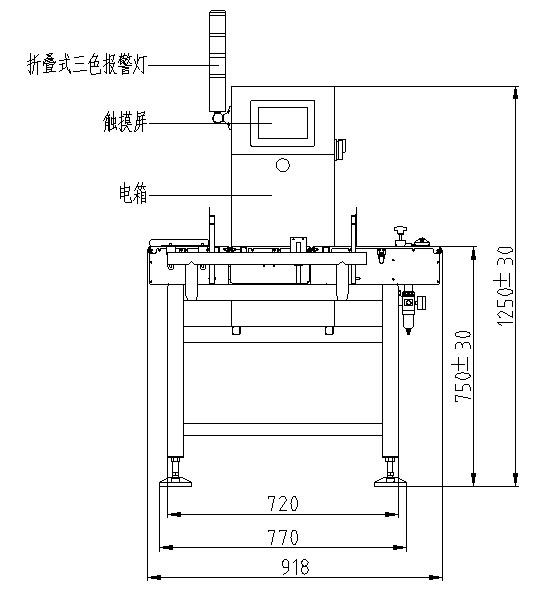

    Size

    900mm(L)*500mm(W)

    *1250mm(H)

    Reject system Air blast Push rod Flap drop
    Parameter storage 2000
    Frame materials SUS 304/ 316
