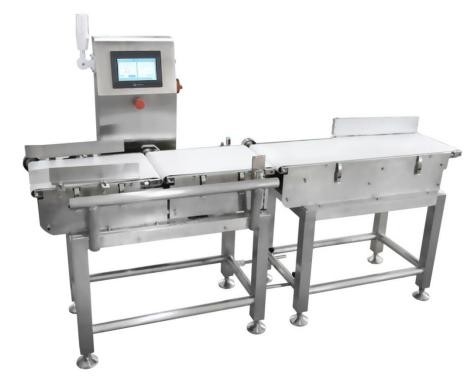

High Precision Conveyor Weight Checker / General Dynamic Checking And Weighing Machine


High speed and high precision Check weigher ,General Dynamic Checking And Weighing Machine


Application: This product is suitable for testing whether the weight of a single product is qualified. It is widely used in many industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products. Such as cosmetics for daily chemical products (including cosmetics, cleaning, cosmetics, skin care products, hair cosmetics, etc.); detergents (including soaps, washing powder, detergents, etc.); oral products (including toothpaste, mouthwash, etc.); Other chemical products (including shoe polish, floor wax, deodorant, insect repellent, etc.)


Strong versatility: the standardization structure of the whole machine and the standardized man-machine interface can complete the weighing of various materials;
Simple operation: using Weilun color human-machine interface, fully intelligent and user-friendly design; conveyor belt is easy to disassemble, easy to install and maintain, easy to clean；
Adjustable speed:Variable frequency control motor, speed can be adjusted as needed；
High speed, high precision:High-precision digital sensor for fast sampling speed and high precision；
Operating mode: three operating modes
a.Dynamic mode:Normal assembly line type；
b.Static mode:After the material enters the weighing platform, the weighing platform stops running, and the weighing is performed to improve the accuracy. It is suitable for products with less than 20 passes per minute.；
c.Energy saving mode:On the basis of a and b modes, the energy-saving mode can be turned on, and can be set to pass the shutdown time. When the equipment is without product passes, it will automatically stop after the long time, and then automatically start when there is material passing.

Feature
Fault self-test:It can self-test whether the motor, inverter, AD, sensor and photoelectric are normal and the cause of the fault and the pilot detection of the cylinder, solid state relay and solenoid valve. It is convenient for non-professional inspection and maintenance.
Auto-learn:No need to set parameters after creating new product recipe information, use the self-learning function to automatically set the device suitable parameters, and save it for the next time the product is switched (parameter storage entry 2000, can be added)
Zero tracking:Can be cleared manually or automatically, as well as dynamic zero tracking；
English Manual:
a.The formula name can be entered in English, and it is more intuitive to find the recipe to switch.
b.With the RS-232 communication port, you can send Unicode strings to the peripherals in English (suitable for external printers or marking machines, which you need to print English).


Communication function
Interface function:Reserved standard interface, easy to manage data, can connected with PC and other smart devices；Peripheral communication:Equipped with standard RS-485 and RS-232 dual communication port output.a.The RS-485 interface is MODBUS, RTU standard protocol but can modify the read address (57600bps, 8, N, 1, and the slave number is 3) and cannot be modified.b.The S232 interface is a custom protocol, and you can set the command to send content yourself. (57600bps, 8, N, 1) can be modified.Communication devices such as external printers or printers can also be connected with the front and rear packaging machines and production equipment to feed back the weighing results so that the recipe parameters can be automatically modified.Report function:
Built in report statistics, the report can generate EXCEL format, can automatically generate a variety of real time data reports, U disk can store more than 1 year of statistical data, support the production status at any time; provide factory parameter setting recovery function, and can store a variety of recipes, replace Product specifications are convenient;
