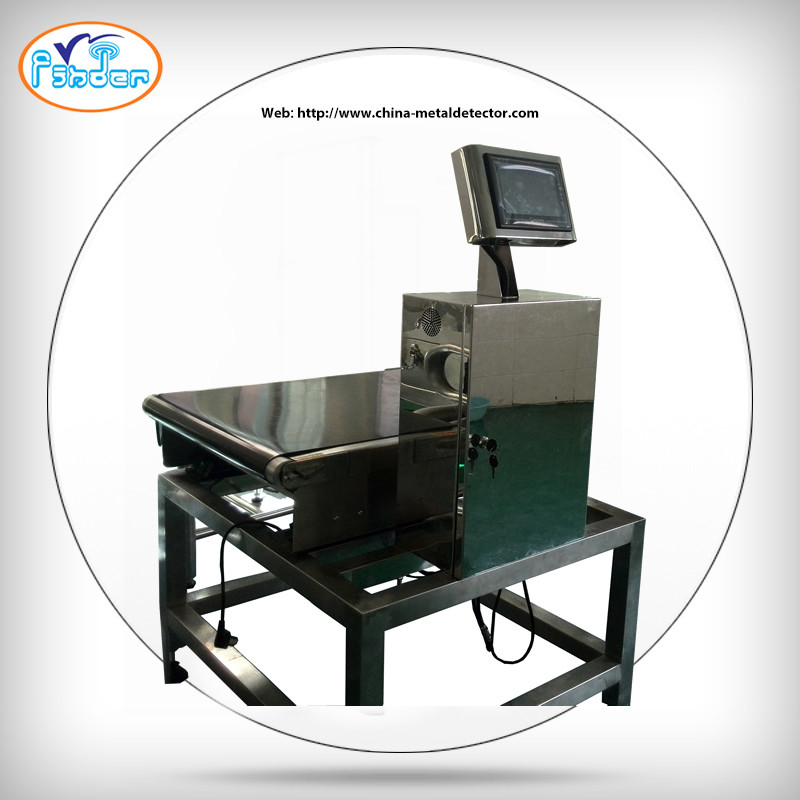

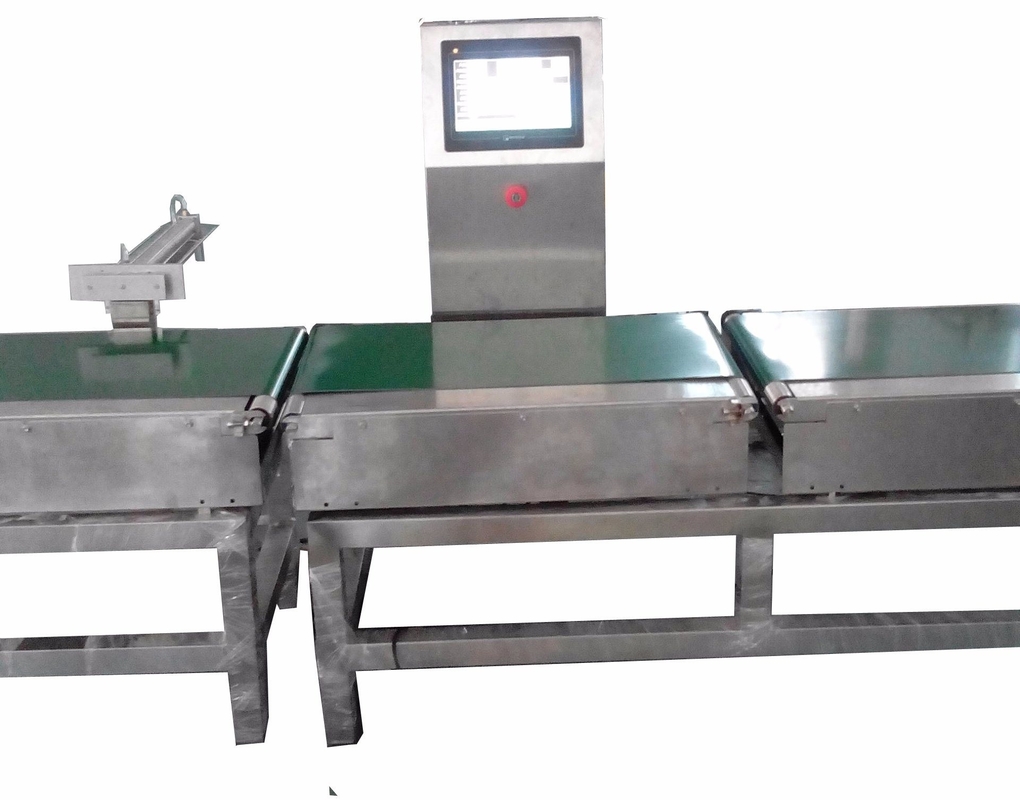

Online Automatic Check Weighing Machines For Packages , High Sensitive

Online Automatic Check Weighing Machines For Packages , High Sensitive

  • Highlight

    dynamic checkweigher

    ,

    checkweigher machine

  • Type
    Check Weigher
  • Mini Screen Value
    1g
  • Display Type
    LCD
  • Mini Weight Accuracy (g)
    ±10g
  • Max Weigh Speed (Bags /Minute )
    20
  • Belt Speed (Meter/minute )
    3-15
  • Weigh Belt
    420L*220W Mm (optional)
  • Weigh Zone Size (mm L*W)
    1000*800
  • Warranty
    2 Years
  • Suitable Product Height (mm)
    According To Customer Product Size
  • Suitable Product Width (mm)
    According To Customer Product Size
  • Suitable Product Length (mm)
    According To Customer Product Size
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    VC-100
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

Online Automatic Check Weighing Machines For Packages , High Sensitive



Online Automatic Check Weighing Machines For Packages , High Sensitive


Why you need a check weigher?

Checkweighers have long been a key element of production operations, because they are not only weighing, but also can actually optimise your whole production process.The benefits of a

checkweigher include:

  • Avoiding costly fines with 100% weight inspection
  • Saving materials, so as to produce more products and profits
  • Improving production processes and equipment efficiency
  • Saving labor and personnel costs
  • Reducing false rejects and rework
  • Maintaining the identity of your brand

What's more, a checkweigher can effectively improve your overall equipment efficiency and thus reduce your total cost of ownership.


Our check weighers' key features:



  • Reject system : arm, air blast or pneumatic pusher for selecting;
  • Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;
  • Chinese and English operating language optional​;
  • Color digitalLED touch screen, more stability and easier to operate;
  • Self-diagnosis function, when Rom/Ram, A/D light electric tube;
  • Based on advanced digital weighing technology;



Scope of application :

  • Food
  • Chemicals
  • Automotive
  • Transport
  • Pharmaceuticals
  • Metal manufacture and fabrication industries


About  our VC series:


The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.


Parameter details :



Model Name VC-10 VC-15 VC-22 VC-30 VC-40 VC-25(two belt) VC-100
Weight range (g) 3-100 3-300 10-1200 30-3000 50-1000 50g-25kg 1kg-100kg
Mini weight accuracy (g) ±0.1 ±0.3 ±0.5 ±1 ±0.5 ±5g ±10g
Mini screen value (g) 0.01 0.1 0.1 0.1 0.1 0.5 1g
Max weigh speed (Bags /Minute ) 20 330 210 180 180 50 20
Belt speed 0 16-118 13-96 13-96 13-96 13-78 3-15
(Meter/minute )
Suitable product length (mm) - 60-180mm 60-300mm 60-420mm 60-500mm 60-420mm -customized
Suitable product width (mm) - 30-150mm 30-200mm 30-250mm 30-400mm 30-380mm -customized
Suitable product height (mm) - 10-130mm 10-200mm 10-330mm 10-330mm 10-430mm -customized
Weigh zone size (mm L*W) - 270*110 400*220 500*300 500*400 800*600 1000*800
Note Non-standard (without belt) High accuracy Small common model Customized model Customized model Common model for Box Roller end belt
Reject device optional Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )


 Online Automatic Check Weighing Machines For Packages , High Sensitive 0Online Automatic Check Weighing Machines For Packages , High Sensitive 1


Company information:



we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
