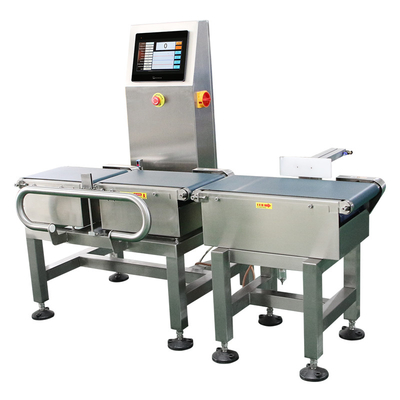

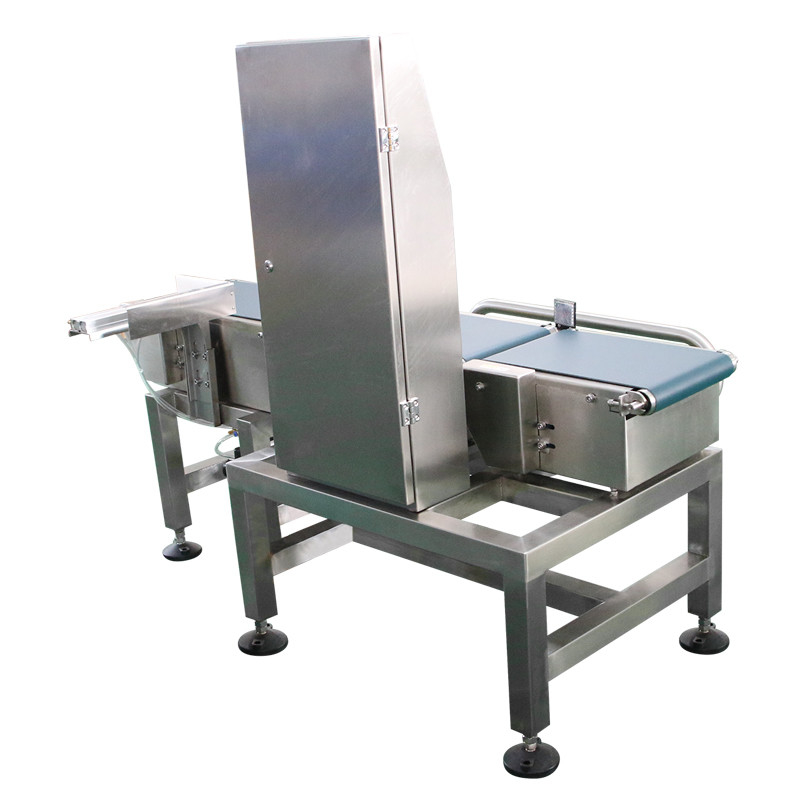

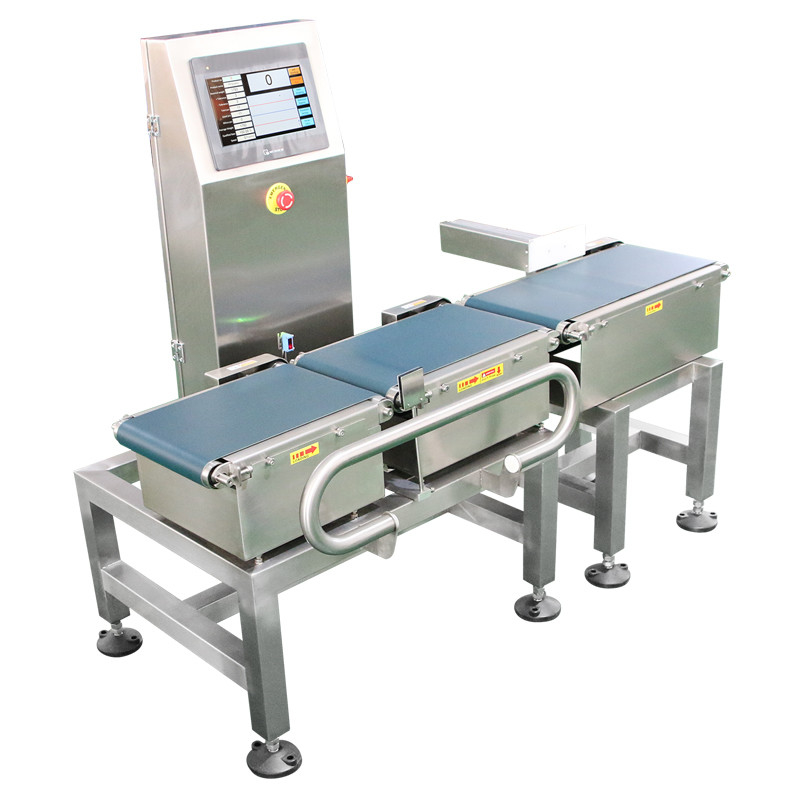

Automatic Food Industry Conveyor Weight Checker With Advanced Digital Signal Processing
Brief introduction of check weigher:
Conveyor Weight Checker also named Check weigher, check weighers, check weigher machine, weight sorting machine, weight sort machine, online check weigher, online weight sorting machine, weight checker, weight pick, conveyor check weigher.
A checkweigher is essential for any company that requires food, beverage, pharmaceutical products etc to be weighed at high speeds. As a professional manufacturer and exporter of weighing equipment in China, Vfinder.CO.,LTD. is excited to offer the latest technological innovation in checkweighing at an impressive low entry price.
Key features:
Solid SUS304 stainless steel structure ensure stable performance and precise weighing.

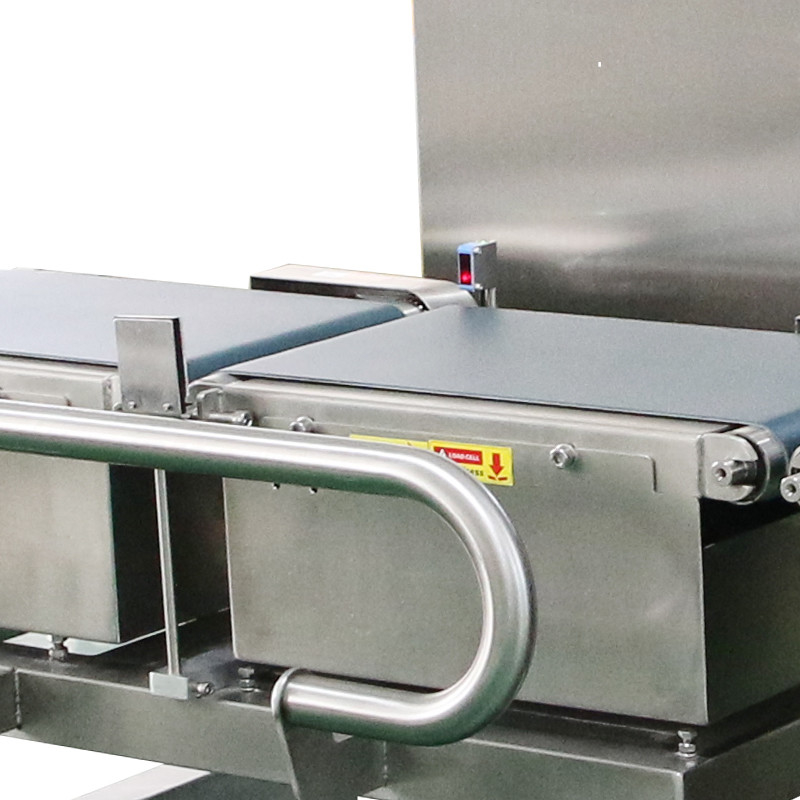

Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light, air blast, or pneumatic push rod

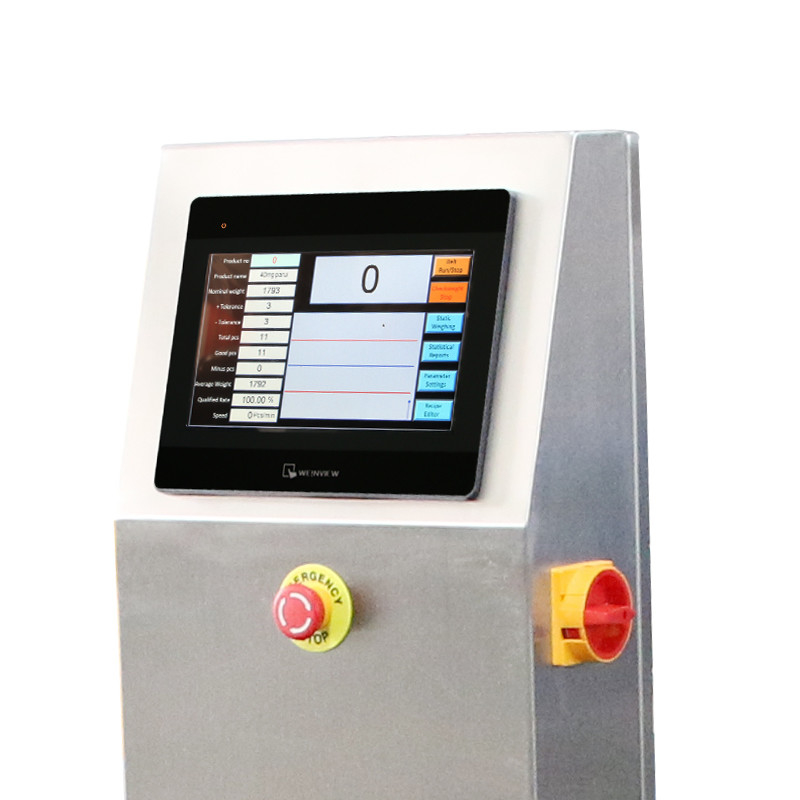

emergency stop button for safety working condition.
Stable sensitivity and no need to do calibration often.
Install emergency switch at the size of machine, user friendly operation.
Scope of application :
Use in detecting the single product weight and setting target value which is accordingly or not. And the sorting device will eliminate the unstandard product.
Such as:
Biscuits and Bakery
Cereal and Health Foods
Confectionery
Cheese
Fresh Produce
Granulated Products
IQF/Frozen
Meat and Fish
Nuts and Dried Fruit
Pasta and Pulses
Ready Meals
Snack Food
Tea and Coffee
Bag in Bag
About VC series:
The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.
Parameter details :
| VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 | |
| Model Name | |||||||
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) | |||||||
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) | ||||||
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
Our products are sold all over the world, you can rest assured.
