Automatic checkweigher, fish sorting machine, belt conveyor weigher scale
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Function and structure characteristics of check weigher
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
Scope of application of check weigher
Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.
Features:
Solid SUS304 stainless steel structure enable for good performance
Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
emergency stop button for safety working condition
Core Applications
Biscuits and Bakery
Cereal and Health Foods
Confectionery
Cheese
Fresh Produce
Granulated Products
IQF/Frozen
Meat and Fish
Nuts and Dried Fruit
Pasta and Pulses
Ready Meals
Snack Food
Tea and Coffee
Bag in Bag
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color LCD Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)

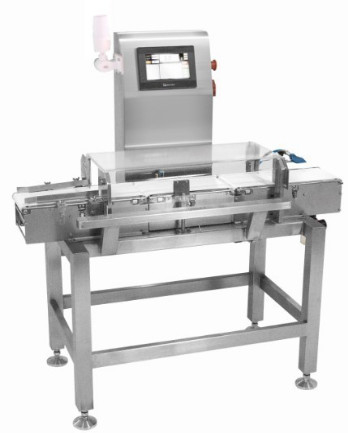

rge tunnel food bags check weigher
²Screen : 8inche full touch screen
² Weight range : Max 1000g
² Max speed : 60-120pieces /minute (can adjust )
² Max accuracy: ±0.5g
² Screen resolution : 0.01g
² Rejection: deflector rod
² Running direction :Face operate panel from left to right
² Belt height from earth : 750±50MM(can customized )
² Products recipe storage : can stooge 100kinds
² Power supply : customized 110---220V±20% 50HZ
² Machine structure :Full stainless steel 304
² Full machine weight :approx 100kg
| Parts Name | Specification /Brand | Unit | Use amount |
| Control system | Vfinder control system ,8 inch industrial touch screen | pcs | 1 |
| Weight sensor | Germany HBM | Pcs | 1 |
| Driving system | Delta | Pcs | 1 |
| Inverter | Delta | Pcs | 1 |
| photoelectric switch | Taiwan Riko | Pcs | 1 |
| Motor Switch | CHNT | Pcs | 1 |
| Conveyor belt | White Shabaker | Pcs | 1 |
| Main conveyor belt roller | NSK Bearing , | Pcs | 1 |
| Accessory conveyer belt | NSK Bearing | Pcs | 1 |
Wind Shield (top)
| VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 | |
| Model Name | |||||||
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) | |||||||
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) | ||||||
| Optional | |||||||
a
