High speed processing check checkweigher /checking weighing / Checkweigher, Online Checkweighing Machine
Short Introduce

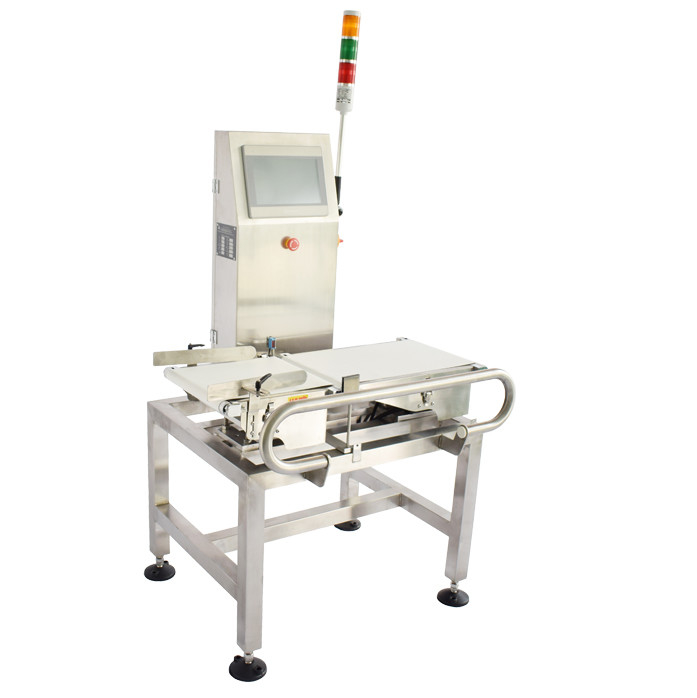

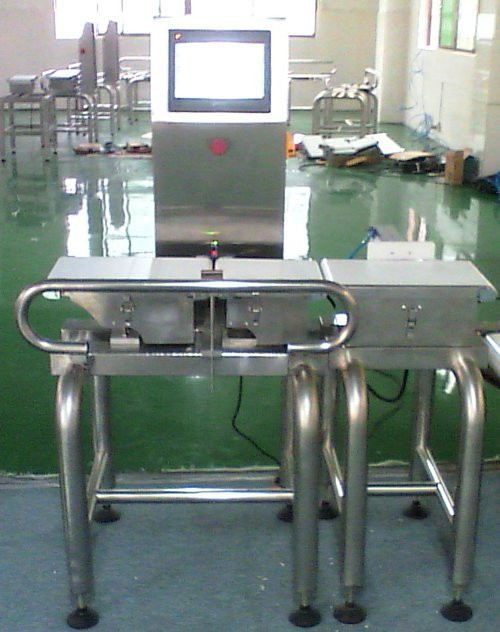

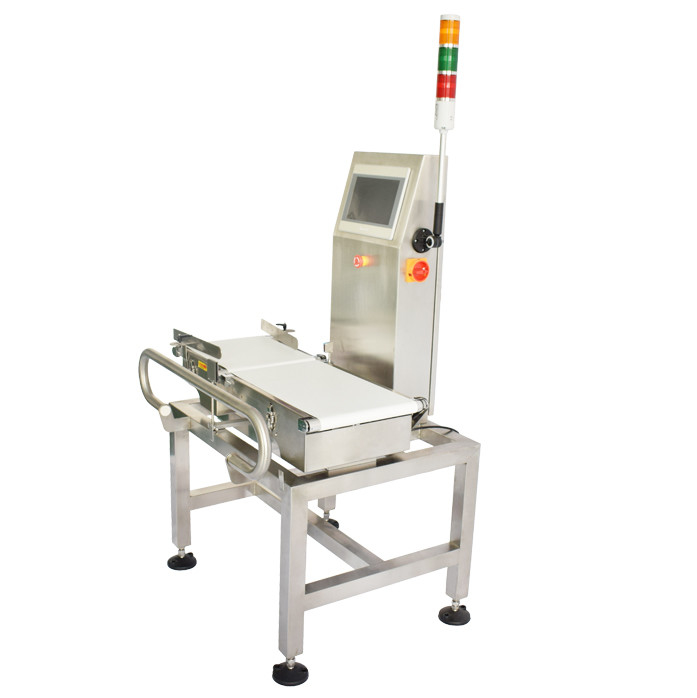

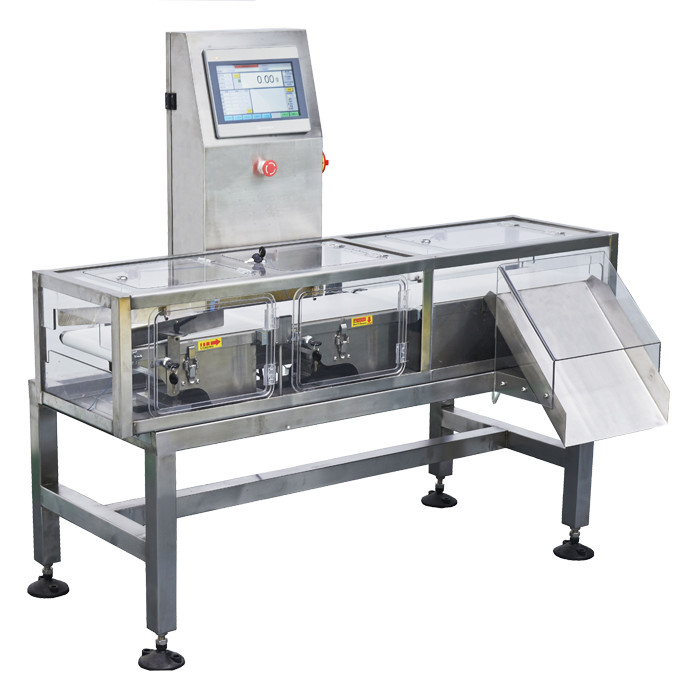

Automatic checkweigher is designed to weigh, classify, and reject uniformly timed packages as they move through a packaging line. The system consists of an infeed conveyor, a weigh conveyor, and a discharge conveyor with machine-mounted reject device. The infeed conveyor is designed to accelerate products to provide the proper spacing for weighing. The weigh conveyor weighs and classifies the product into a customer-defined weight zone and transfers the product to the discharge conveyor. A machine-mounted reject device located at the discharge conveyor will remove off-weight packages, allowing only acceptable-weight packages to continue downstream.
Application
Package Types Cartons, bags, bars, pouches, bottles - Food,
Pharmaceutical and Consumer products
MicroMate Control Pillar mounted, remote up to 2 meters
Display LCD Screen and Tactile Interface to view average/range format
Motors Servo motor with speed stored in product memory
Product Storage Up to 25 product setups, complete with speed, timer settings
Statistics Average, standard deviation
Weight Zones 3 (5 optional)
Languages English
Security Password protected
Standard Rejecter Mechanical Push-Off
I/O 24 VDC
Approvals UL/CUL, ANSI B155.1-1994, EMI, RFI, ESD protected
Parameter details :
| VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 | |
| Model Name | |||||||
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) | |||||||
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) | ||||||
Our products are sold all over the world, you can rest assured.
