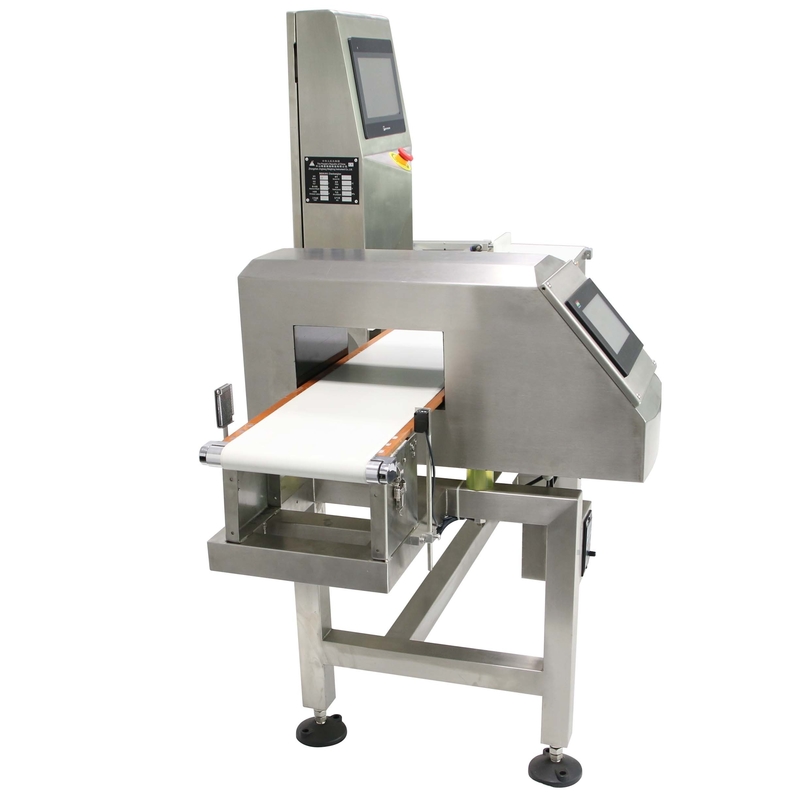

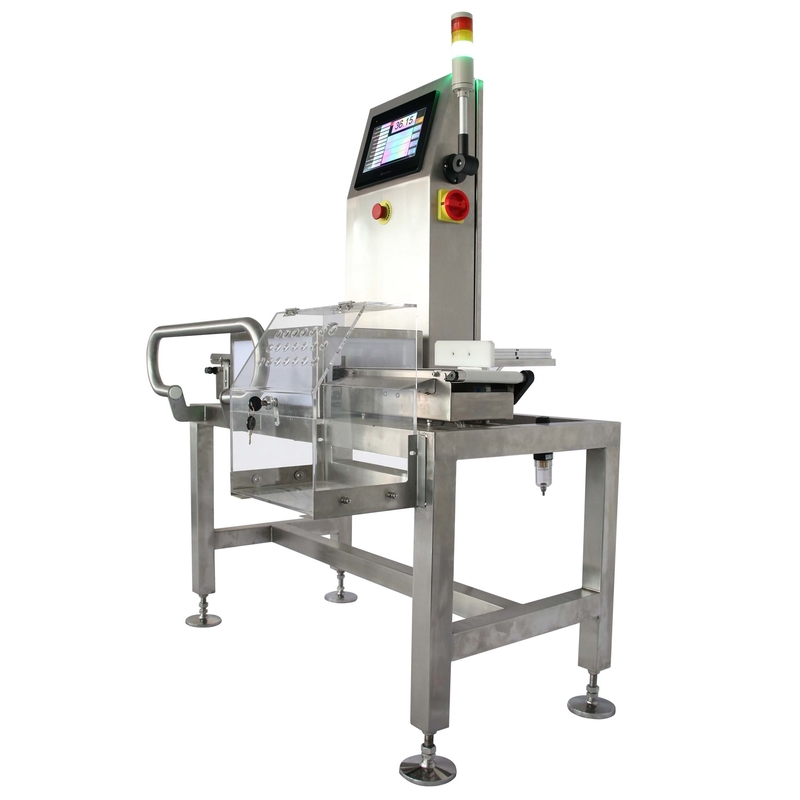

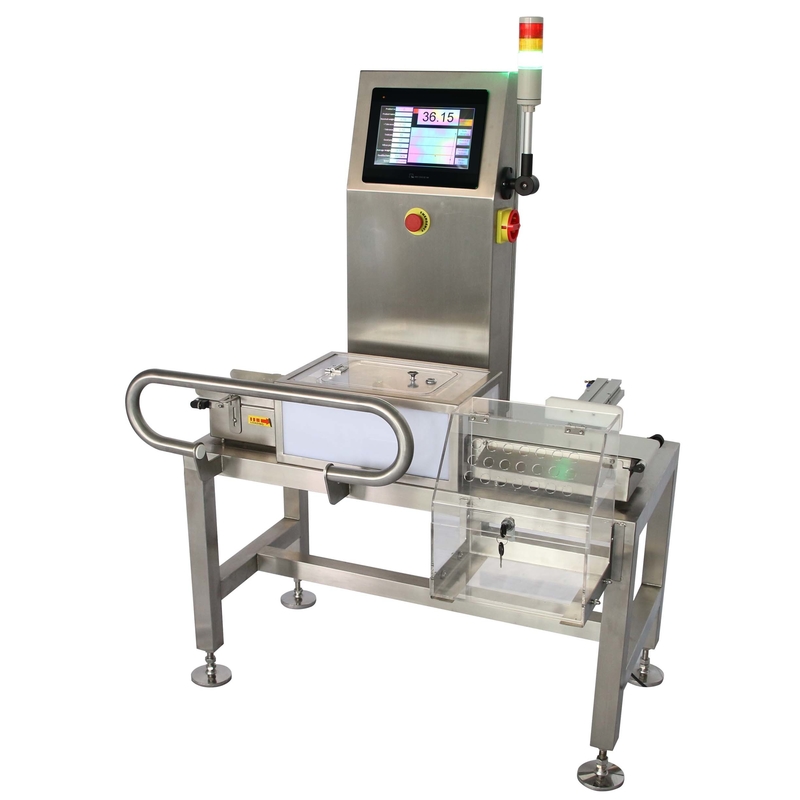

Production Processing Checkweigher Scale For Weighing Packages , Size Customized

    High accuracy checkweigher/weight check machine for production processing/checkweigher for all industry

     VC-22 is a belt conveyer checkweigher that meets the demands of production line quality control for products weighing between 10 g to 10 kg. This in-motion checkweigher offers quick and simple operation with easy changeover from product to product. The checkweigher is built solid enough to handle virtually every product in any environment, yet is responsive in both accuracy and performance.

Designed for flexible and hard-to-handle products, the VC-22 uses 1″ diameter conveyor rolls for the smoothest possible transition of product across the scale at rates in excess of 100 units per minute. Networked servomotors on each conveyor provide responsive performance, with conveyor speeds up to 250 feet per minute. Conveyor frames and belts can be removed without tools, allowing thorough cleaning and easy maintenance. Conveyors are interchangeable and include many commonly available parts.

SOLID CONSTRUCTION

The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series  is designed for very heavy packages and therefore is constructed of steel channel.

Features:

Solid SUS304 stainless steel structure enable for good performance

Belt disassembling without tools, which is easier to clean

Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod

emergency stop button for safety working condition

Core Applications
Biscuits and Bakery
Cereal and Health Foods
Confectionery
Cheese
Fresh Produce
Granulated Products
IQF/Frozen
Meat and Fish
Nuts and Dried Fruit
Pasta and Pulses
Ready Meals
Snack Food
Tea and Coffee
Bag in Bag

Parameter details :
