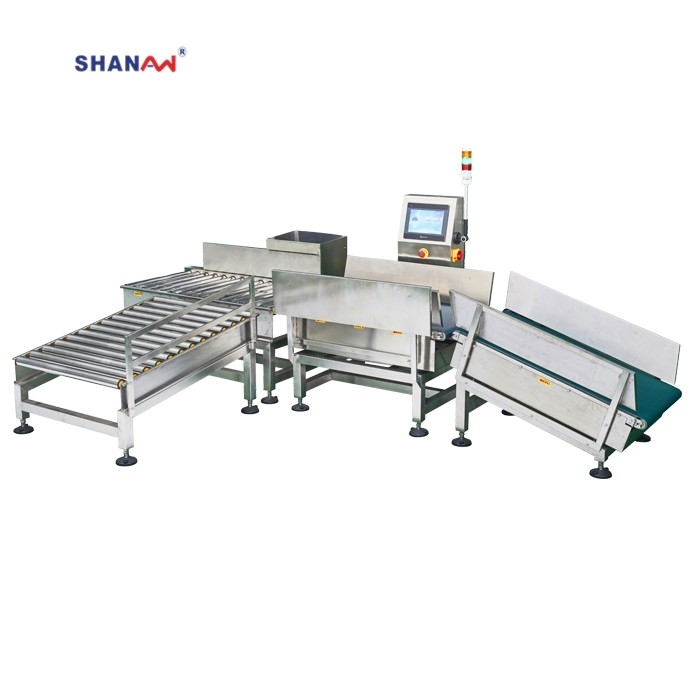

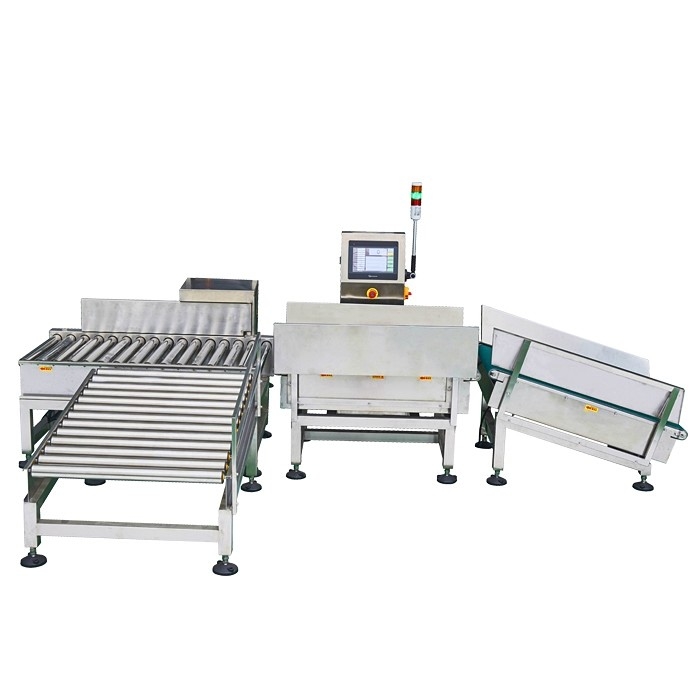

What is a checkweigher scale and Why Use a Belt conveyor Checkweigher?
Checkweighers prevent the under filling and overfilling of product, resulting in brand protection and cost reduction due to less product giveaway. Other advantages include simple and intuitive operation of the machines leading to short familiarization periods and trouble-free usage.
Application: It can be widely used in food, pharmaceutical, daily chemical, chemical, battery, hardware accessories, electronics, plastic and other industries.
Advantage:
Tech Parameter
| model | SA-300 |
| power supply | AC220V±10% 50HZ(60HZ) |
| rated power | 0.4KW |
| Single weighing range | ≤3000g |
| Weighing accuracy range | ±0.5g~±2g |
| Minimum scale | 0.1g |
| transfer speed | 30～90m/min |
| Maximum speed | 80 pcs/min |
| Weighing material size | ≤300mm(L)*290mm(W) |
| Weighing conveyor belt size | 450mm(L)*300mm(W) |
| Product Size | 1800mm(L)*722mm(W)*1270mm(H) |
| Elimination method | Pusher/pendulum |
| Control System | High speed A/D sampling controller |
| Preset product number | 2000pc |
| Operation direction | Facing the machine, left to right |
| External air supply | 0.6-1Mpa |
| Pneumatic interface | Φ8mm |
| working environment | Temperature: 0℃～40℃,Humidity:30%～95% |
| Body material | SUS304 |
Our products are sold all over the world, you can rest assured.
