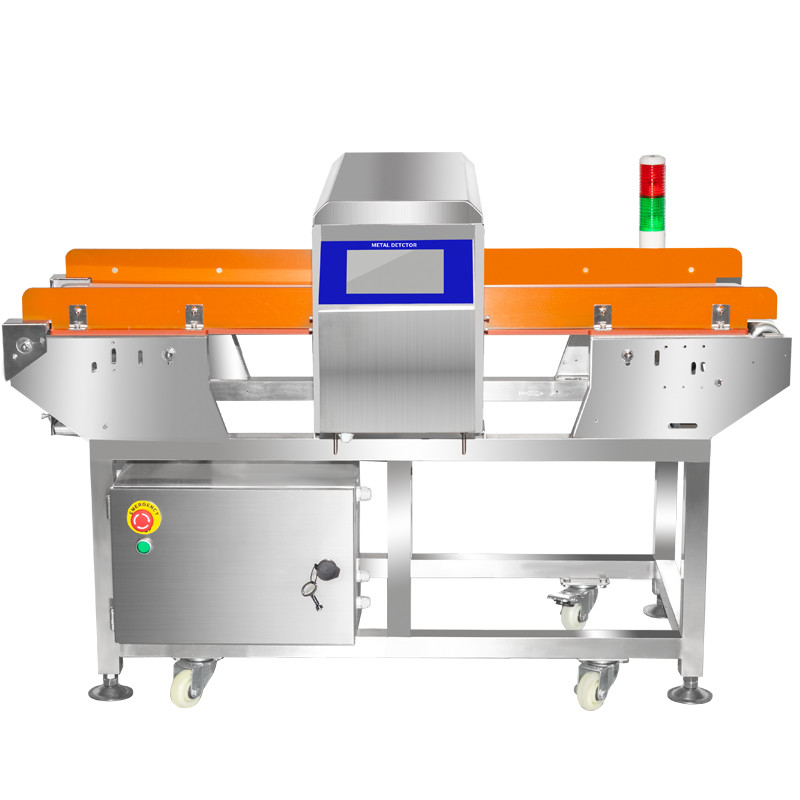

SA-508K
Product advantages:
1. Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.
2. Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.
3. Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.
4. Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
5. Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.
6. Control system: ADLINE microprocessor controller.
7. Conveyors: Joint-body PU (polyurethane) Conveyor.
8. Special transport mechanism designed the maximize sensitivity of metal detectors.
9. Flexible modular design can be customized according to different requirements.
10. Mirror stainless steel with open transport system. Easy to clean.
11. Conveyer belt adopts imported white ones safe to food.
12. Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
|
Model |
SA-508K |
||||||||
|
Machine size |
Standard machine |
custom |
|||||||
|
Detection Width(mm) |
400 |
400-custom |
|||||||
|
Detection Height(mm) |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
|
Alarm type |
Metal foreign object is detected to stop automatically, and buzzer alarm |
||||||||
|
Machine material |
The whole frame is made of 304# foot three centimeter stainless steel |
||||||||
|
Machine size (mm) |
L1330mm*W700mm*H1000mm(can be customized) |
||||||||
|
Machien weight |
About 250KGCustom size and weight are different |
||||||||
|
Power rate |
220V 50Hz/90W |
||||||||
|
Load capacity |
5-25KG Conveyor speed:35m/min, can be customized |
||||||||
|
Conveyor belt height from the ground |
680mm±50mm can be customized |
||||||||
|
Note: Regular machines are available from stock. The above performance parameters are standard state test values, and the actual application will be slightly different depending on the use environment and the components of the detected object! |
|||||||||
